How to Build an Outstanding Exhibition Booth with Aluminum Truss
In many large exhibitions, the most impressive booths are not built with decoration alone. Behind the LED screens, lighting systems, hanging signs, entrance structures and roof designs, there is usually a strong and modular truss system.
From LED display booths and lighting booths to auto show booths, aluminum truss is widely used because it is lightweight, strong, reusable and fast to assemble. It gives exhibition builders a reliable structure for supporting screens, lights, branding elements and custom booth designs.
What Is This Product Used For?
The photos below show several exhibition booth structures built with aluminum truss. In these booths, the columns may be visible, but most of the main load-bearing parts, LED screen frames, roof structures and hanging sections are supported by truss.
This type of aluminum truss is suitable for:
- LED display booths
- Lighting exhibition booths
- Auto show booths
- Trade show entrance structures
- Stage and concert structures
- Music festivals
- Sports event screens and camera platforms
- Product launch events
For exhibition projects, truss is not just a temporary frame. It is the main structure that connects visual design, equipment installation and site safety.

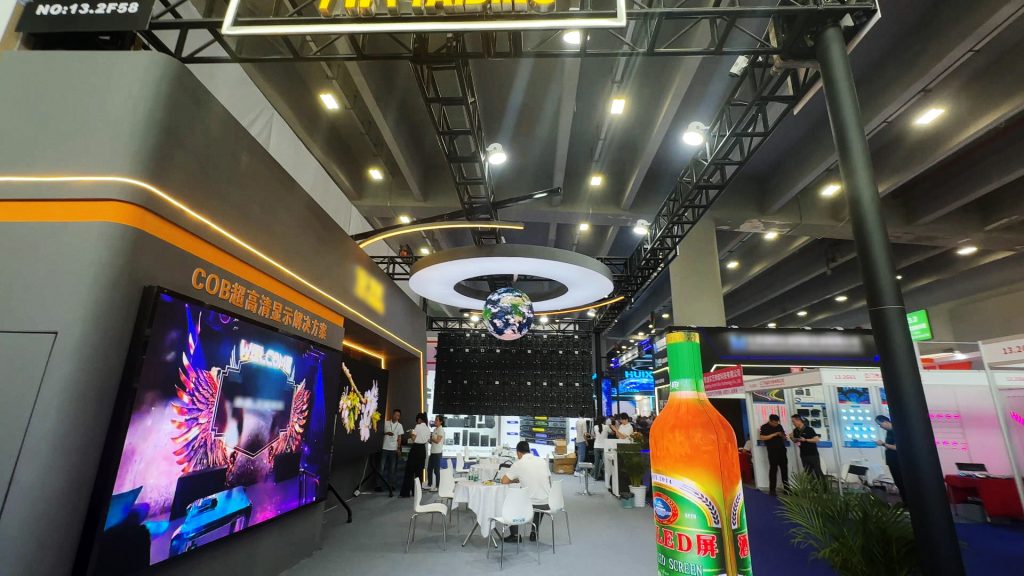

This booth shows how aluminum truss works as the main structure behind an exhibition design. The truss supports the LED display, top frame, hanging elements and entrance area, helping the booth combine visual impact with a stable load-bearing structure.
300x300mm Aluminum Square Truss Specifications
For many exhibition and event projects, the 300x300mm aluminum square truss is a practical and commonly used option. It can support LED display frames, lighting fixtures, hanging signs, booth roofs and decorative structures when the span and load are properly calculated.
Product specifications:
| Item | Specification |
|---|---|
| Material | Aluminum 6082-T6 / 6061-T6 |
| Truss size | 300x300mm |
| Main tube | 50x3mm |
| Vice tube | 30x2mm |
| Brace | 25x2mm |
| Single truss length | 1m-4m |
| Maximum connected span | Up to 12m according to the reference load table |
| Rated load capacity | 350kg |
Standard available lengths:
| Meter | Feet |
|---|---|
| 1.00 | 3.28 |
| 2.00 | 6.56 |
| 3.00 | 9.84 |
Reference load table:
| Span in Meter | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Point Load (kg) | 765 | 680 | 498 | 393 | 326 | 263 | 248 | 225 | 210 | 193 | 175 |
| Distributed Load (kg/m) | 765 | 453 | 249 | 157 | 108 | 75 | 62 | 50 | 42 | 35 | 29 |
This load table is for reference. The final structure should always be confirmed according to the project design, load type, installation height, span, venue rules and local safety requirements.
Why Is This Truss Suitable for Exhibition Booths?
A 300x300mm aluminum square truss can meet the needs of many standard exhibition projects. It is strong enough for common booth structures, but still convenient for transportation, assembly and repeated use.
In LED booths, the truss can be used as the main support for large LED screens. From the side view, you can see that the LED wall is connected to the truss structure instead of being placed as a simple decorative panel. This makes the booth more stable and allows the screen to become part of the whole structure.
The same idea is also used in sports events and concerts. Camera tracking screens, side screens, stage LED walls and event display systems often require a strong truss frame to support the screen safely and keep the visual area clean.
This booth shows how aluminum truss works as the main structure behind an exhibition design. The truss supports the LED display, top frame, hanging elements and entrance area, helping the booth combine visual impact with a stable load-bearing structure.

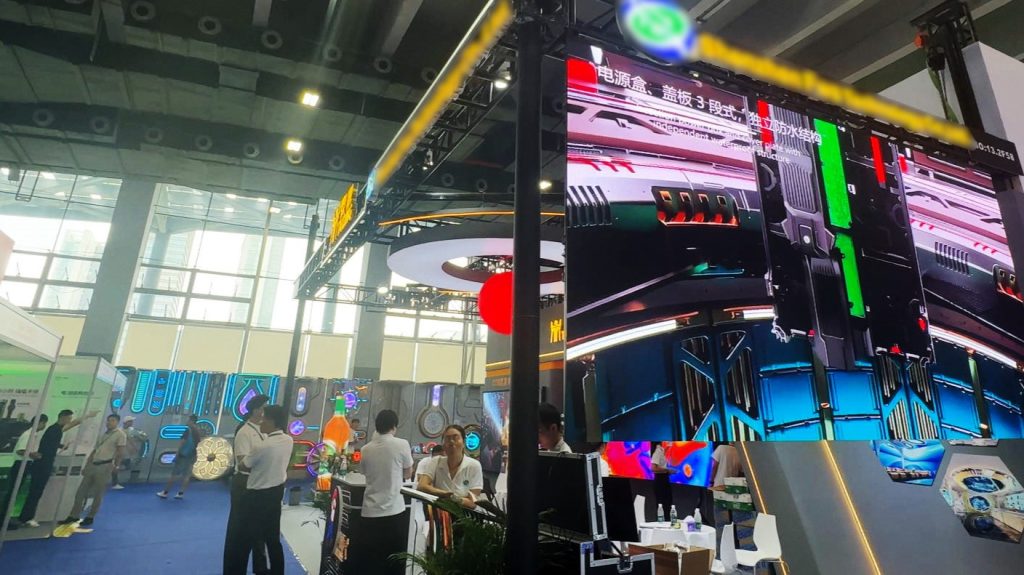

This image shows the rear and side structure of an LED booth. Aluminum truss is used not only for the front display, but also for the back frame, side support and hanging elements, making the booth more complete from different viewing angles.
Truss for Booth Roofs, Shapes and Hanging Designs
If an exhibition booth needs a roof design, hanging decoration, lighting layout or custom shape, horizontal and vertical truss sections can be added to the middle structure.
This is why truss is so widely used in modern exhibition construction. It can be connected in different directions, extended to different lengths and combined with lights, LED strips, signs, screen frames and decorative panels.
For booth builders, this modular structure saves time on site. For exhibitors, it creates a stronger visual effect and makes the booth easier to recognize from a distance.

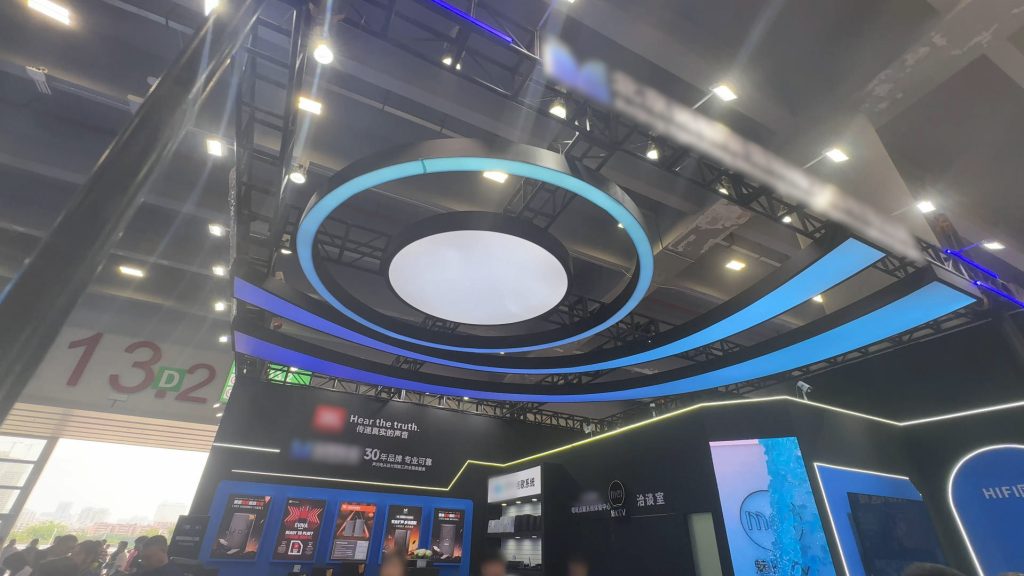

The top circular design is supported by a truss framework and combined with lighting elements. For exhibition booths that need roof shapes, hanging signs or visual decoration, aluminum truss provides a flexible structure for both load support and design presentation.
Column-Free Booths with Suspended Truss
If the exhibition hall allows overhead rigging, truss can also be suspended from the ceiling to create a column-free booth. This gives the booth a much more open space, making it easier for visitors to enter from different directions.
Column-free booth designs are suitable for large brand displays, auto shows, LED exhibitions, lighting shows and product experience areas. However, before choosing this structure, the exhibitor must confirm several details with the organizer or venue:
- Booth area
- Allowed booth height
- Ceiling rigging points
- Maximum hanging weight
- Total truss weight
- LED screen and lighting load
- Venue safety rules
Suspended truss structures can look very clean and open, but they require more careful planning than standard column-supported booths.

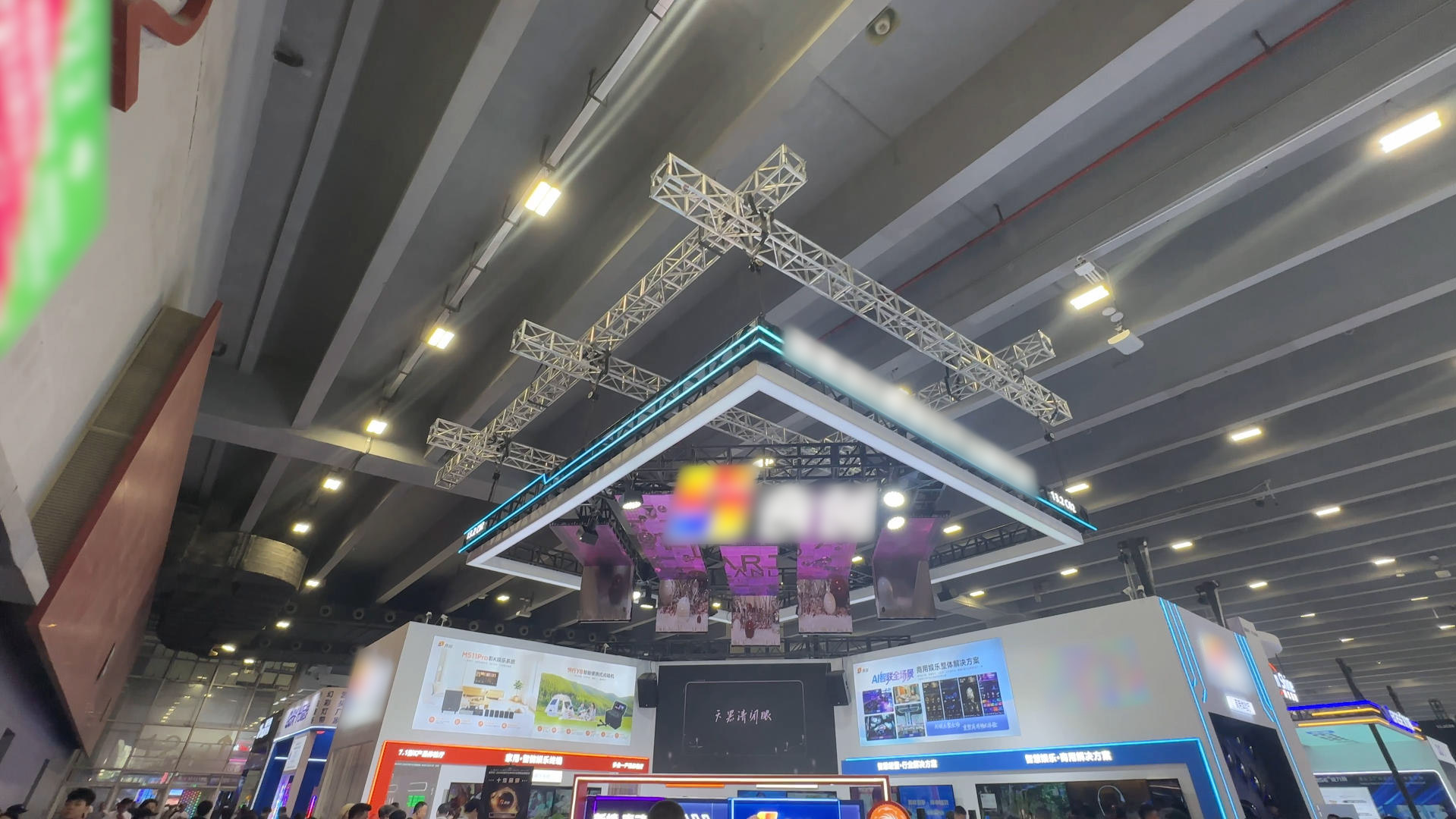

This booth shows a suspended truss structure with a more open space below. When the venue allows overhead rigging, aluminum truss can be used to create a column-free booth, improving visitor flow and making the display area look cleaner.
Mature Production and Wide Application
Our factory is very familiar with this type of aluminum truss. It is one of the most commonly produced products because it is used in many different projects and has a mature production process.
Besides exhibition booths, this truss is also suitable for stage construction, concerts, music festivals, sports events, product launches and outdoor activities. For rental companies, event builders and exhibition contractors, a modular aluminum truss system can be reused in many different project layouts.

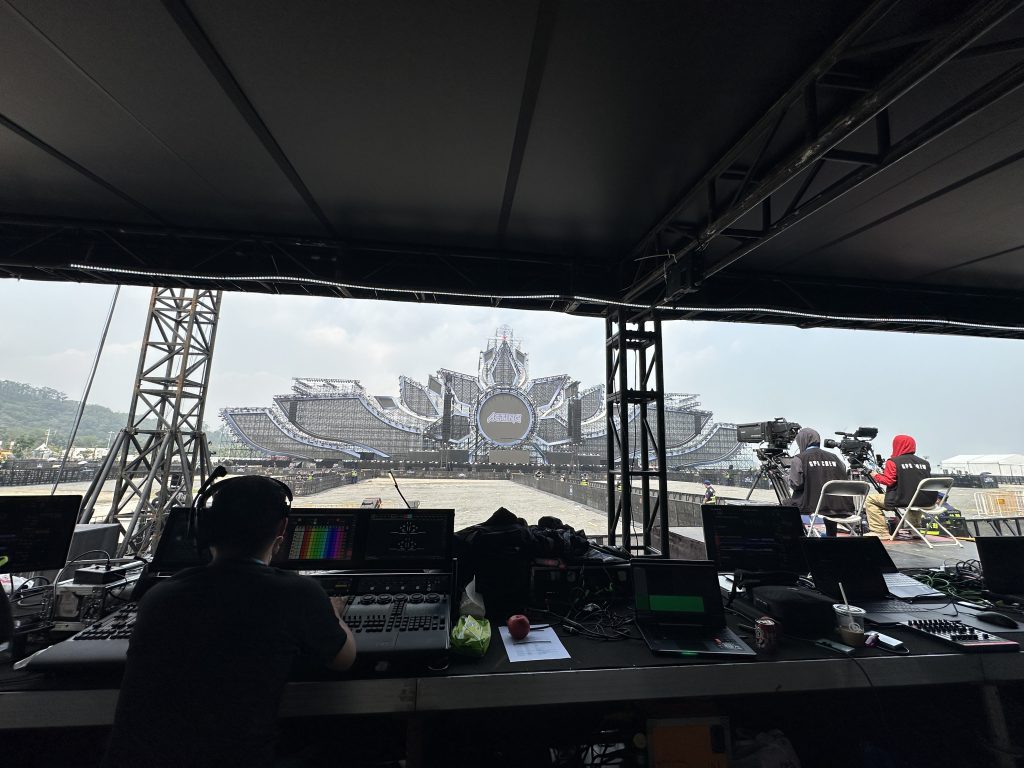

Aluminum truss is not limited to exhibition booths. In concerts, music festivals and large outdoor events, truss systems are widely used for stage structures, roof supports, lighting positions, camera platforms and technical control areas.
How to Choose the Right Aluminum Truss
The right truss depends on the project requirements. If you are building an exhibition booth, stage, LED screen frame or event structure, you can send us the basic project information first.
Useful details include:
- Booth size or stage size
- Required height
- Required span
- LED screen size and weight
- Lighting or speaker load
- Indoor or outdoor use
- Column-supported or suspended structure
- Project drawings or reference photos
According to these details, our team can recommend the suitable tube thickness, truss size, section length, connection method and accessories for your project.
FAQ
Why are aluminum trusses widely used for exhibition booths?
Aluminum trusses are widely used because they are lightweight, strong, modular and easy to assemble. In LED booths, lighting booths, auto shows and product launch events, trusses can support LED screens, lighting fixtures, hanging signs, roof structures and decorative booth designs.
What size truss is suitable for LED exhibition booths?
For many LED exhibition booths, a 300x300mm aluminum square truss is a common choice. It can be used for main booth structures, LED screen frames, lighting supports, entrance structures and hanging designs. The final size should be selected according to booth area, height, span, LED screen weight and load requirements.
Can this truss support LED screens?
Yes. Aluminum truss is often used to support LED screens in exhibitions, concerts, sports events and stage shows. Before installation, the LED screen size, total weight, hanging method, span length and load type should all be confirmed.
What information is needed before choosing a booth truss?
Customers usually need to provide booth size, required height, span length, LED screen dimensions, equipment weight, hanging points, venue restrictions and whether the booth needs columns or a suspended structure. If a booth drawing is available, we can recommend a more accurate truss solution.
Can aluminum truss be used for a column-free booth?
Yes. If the exhibition hall allows overhead rigging, aluminum truss can be suspended to create a column-free booth. This makes the booth more open and easier for visitors to enter. The organizer must confirm the allowed hanging weight, booth height, rigging points and safety requirements before installation.
Is aluminum truss only used for exhibitions?
No. Aluminum truss is also widely used for stage construction, concerts, music festivals, sports events, product launches, auto shows, lighting shows and outdoor events. Because the structure is modular, the same truss system can be reused in many different projects.
How long can the truss span be?
The available span depends on truss size, tube thickness, load type and safety requirements. A 300x300mm aluminum truss can be connected in different lengths, but the safe load decreases as the span becomes longer. Customers should check the loading table before confirming the structure.
What is the difference between point load and distributed load?
Point load means the weight is concentrated in one position, such as a hanging LED screen or a single heavy fixture. Distributed load means the weight is spread along the truss, such as several lights installed evenly. Point load usually requires more careful calculation because the pressure is concentrated.
Can the truss color be customized?
Yes. Aluminum trusses can be supplied in natural silver, black powder coating or customized colors. Black truss is often used in LED booths, lighting booths, concerts and stage projects because it blends well with screens and lighting equipment.
Do you provide truss design support?
Yes. Customers can send us the project size, height, layout, loading requirements and booth design. Our team can help recommend suitable truss specifications, connection lengths, support methods and accessories according to the project requirements.
Related Products
300mm Aluminum Stage Truss Thomas Lighting Truss
290 X290mm Quad Truss Globle Truss Lighting
Circular Truss Bolt Connected 4m Diameter
Curved Lighting Truss
Need a Truss Solution for Your Exhibition Booth?
If you are planning an LED booth, lighting booth, auto show booth, stage structure, concert project or sports event setup, we can help you choose the right aluminum truss system.
Please send us your project details, including booth size, required height, span, LED screen weight, lighting load, installation environment and project drawings. Our team will recommend suitable truss specifications, connection lengths, accessories and loading solutions according to your project.
Contact us to get a truss solution and quotation for your next exhibition or event project.
