Portable Outdoor Stage Installation: Step-by-Step Modular Stage Setup

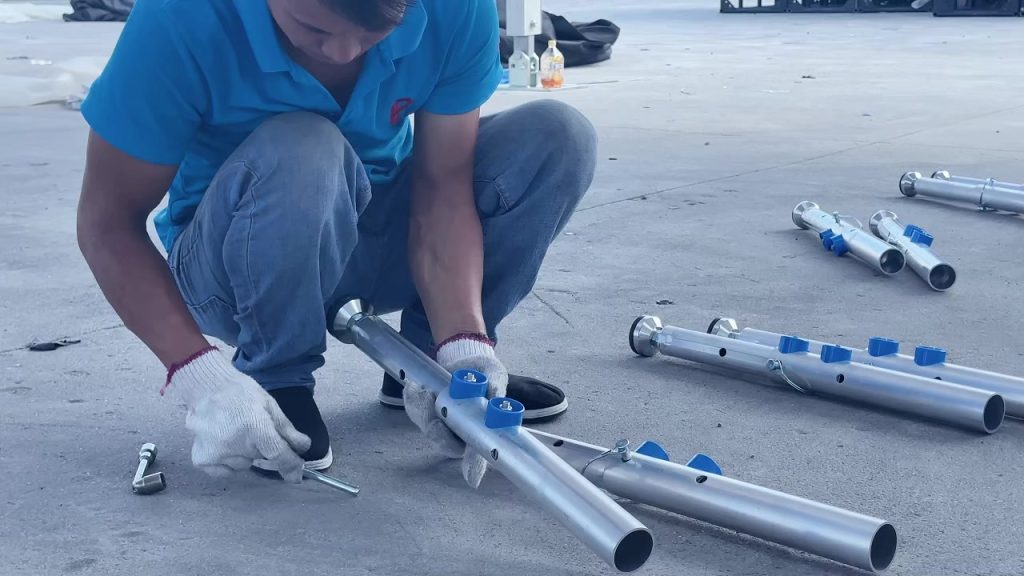

Preparing the Portable Stage Decks and Support Legs
Before assembling the stage platform, the required stage decks, support legs and connection parts are placed close to the installation area. For this project, the stage section of the production list includes both 1 × 2 m and 1 × 1 m modular stage decks. Different support-leg heights are also prepared, including lower 40–60 cm configurations and taller configurations ranging from approximately 100 cm to 150 cm. This allows the same modular stage system to be configured for different platform heights without changing the basic installation method. The support legs use locking points and D-type pins to help position and secure the components during assembly.

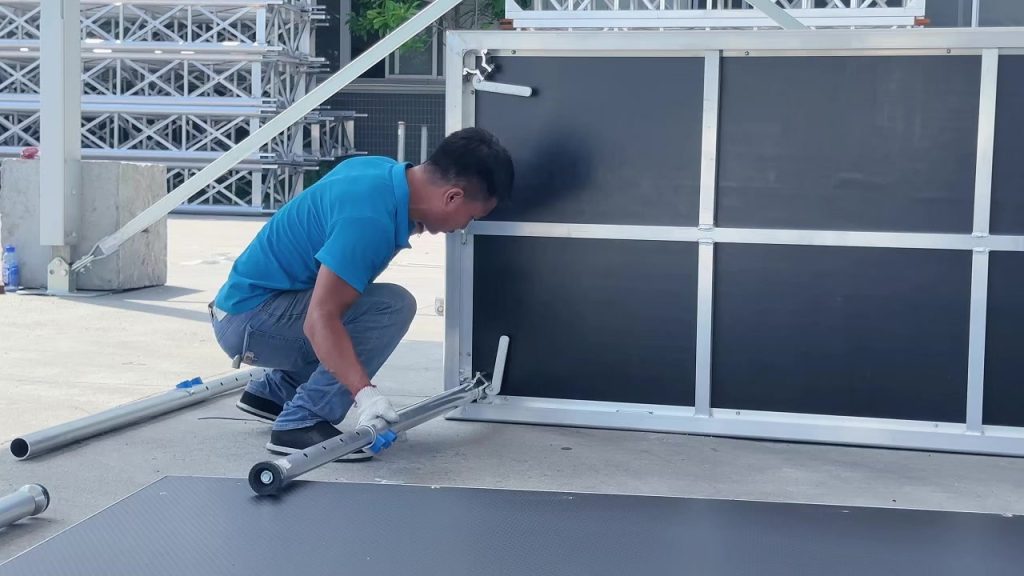

Installing the Support Legs on the Stage Deck
The stage deck is first positioned so the installers can access the aluminium frame underneath.
Each support leg is inserted into the corresponding mounting position on the stage frame and secured before the platform is placed upright.
This part of the installation is simple, but it is important to confirm that every leg is fully seated and locked. A modular stage becomes much easier to level and connect when the support structure is correctly installed from the beginning.
For rental companies and event installation teams, this quick assembly method also helps reduce the amount of time required for repeated setup and dismantling.

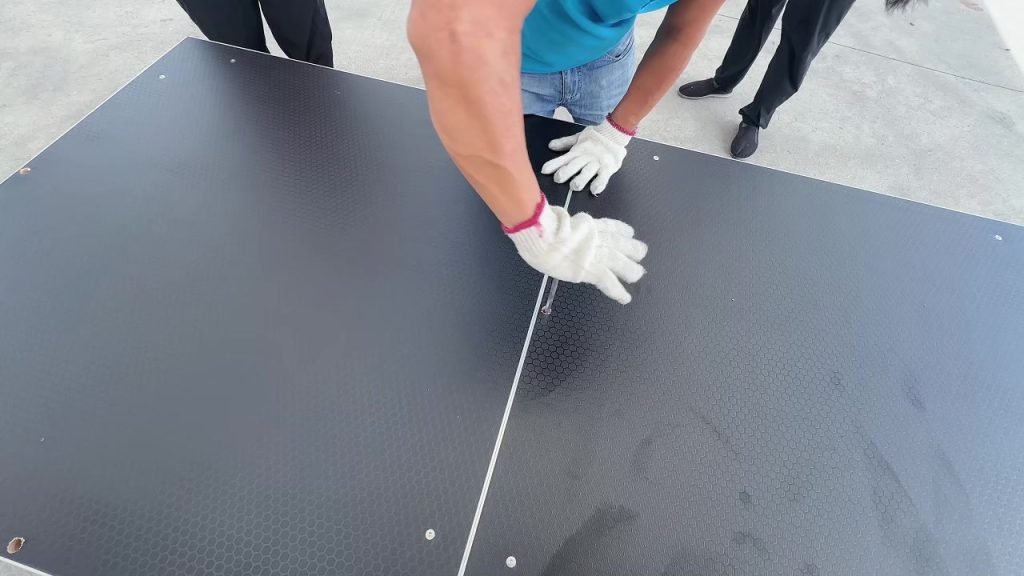

Connecting the Modular Stage Platforms
Once the individual stage sections are standing, the next step is to position adjacent decks together.
The black stage surfaces are aligned carefully so the platform edges remain even. The built-in locking points are then operated with the matching tool to secure the neighbouring stage decks.
This connection is an important detail in portable stage setup. Individual stage modules should not simply be placed beside each other. Connecting the sections helps the complete platform behave as one continuous working surface and reduces unwanted movement between decks.
Additional aluminium leg clamps can also be used around adjoining support legs according to the stage layout.

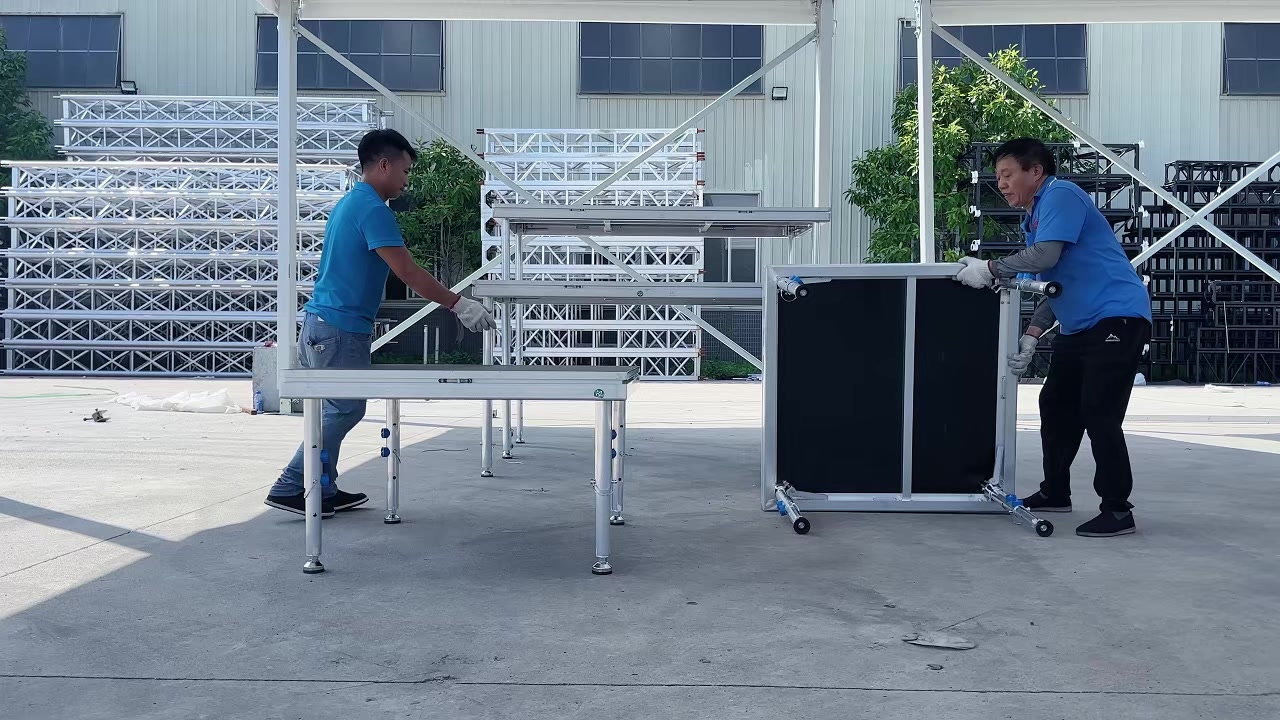

Building Different Stage Heights
One advantage of a modular outdoor stage platform is the ability to use different support-leg heights within the same project.
The video shows several assembled stage sections at different elevations. The production configuration for this project includes stage legs for both low platforms and taller stage areas.
This gives event companies more flexibility when building main performance stages, side platforms, equipment areas or temporary event risers.
The final stage height should always be selected according to the event layout, ground condition, access requirements and intended use.

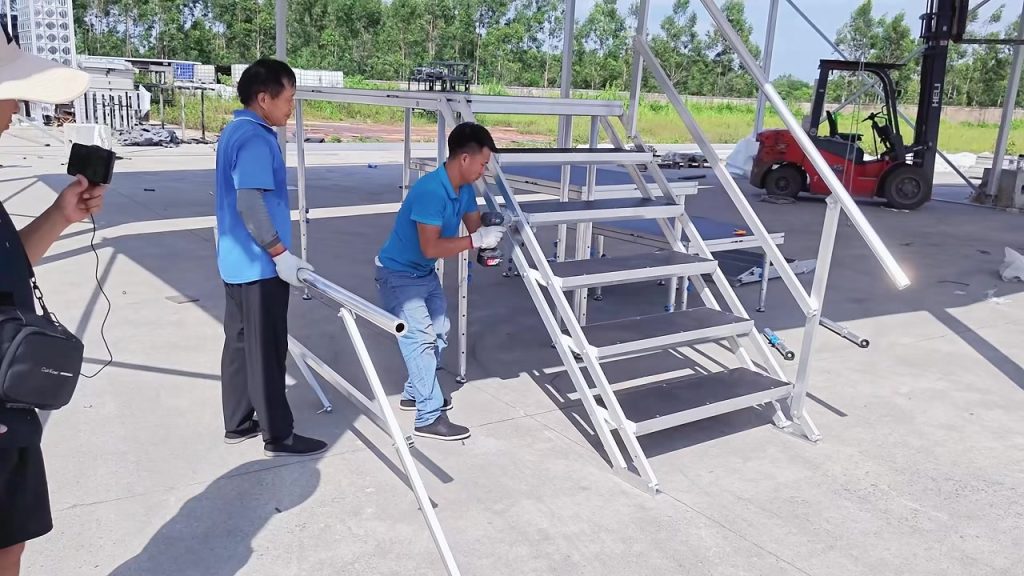

Installing the Stage Stairs
After the main platform is assembled, the access stairs are positioned against the corresponding stage section.
This project includes both three-step and six-step stage stairs for different platform heights.
The upper stair section is aligned with the stage deck before the connection is tightened. The installers then check the stair position and the contact points on the ground.
A correctly matched stair system makes access more practical for performers, technicians and event staff while keeping the entrance consistent with the selected stage height.
Adding Stair Guardrails and Checking the Completed Stage
The final installation shown in the video includes aluminium guardrails on the stair sections.
The guardrail components are positioned beside the stairs and secured to complete the access system. After the portable outdoor stage installation is completed, the team checks the deck connections, support legs, stair position and guardrail connections before the stage is considered ready.
The completed setup demonstrates how modular stage boards, aluminium support legs, connection clamps, stairs and guardrails can be combined into a complete portable outdoor stage system.
ENO Stage supplies modular aluminium stage platforms for concerts, festivals, corporate events, weddings, touring productions and other temporary event applications. Stage size, platform height, deck configuration, stairs, guardrails and matching accessories can be arranged according to the project layout.
Practical Questions About Portable Outdoor Stage Installation
How are multiple portable stage decks connected together?
Adjacent modular stage decks are first aligned and then secured through the stage locking system. Depending on the layout, additional leg connection clamps can also be installed around the supporting structure.
Can one portable stage system use different platform heights?
Yes. Different support-leg heights can be matched with the modular stage decks. This allows low platforms and taller stage areas to be configured according to the event layout.
What should be checked after the stage installation is complete?
The installation team should check that the support legs are properly seated, adjacent decks are locked, the platform surface is level, stairs are firmly positioned and all required guardrails and connection components are secured.
