描述

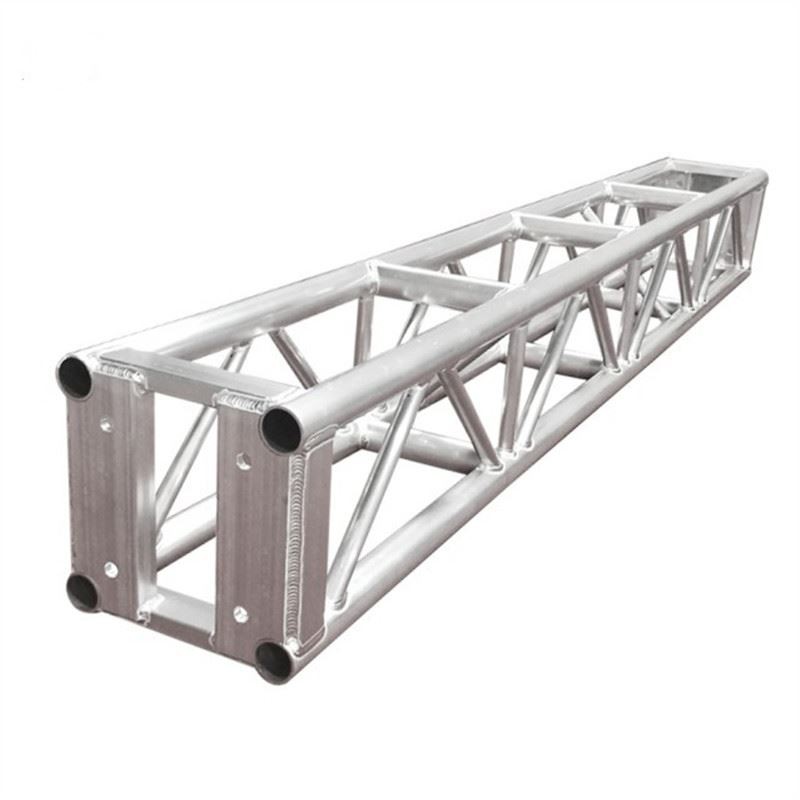

300mm aluminum Thomas stage truss is a heavy-duty bolted lighting truss system for stage rental projects, moving head lighting rigs, event structures, display booths, decorative applications, square box truss frames, and temporary stage roof layouts. Compared with lighter 300x300mm bolt truss options, this Thomas lighting truss uses an L-plate end design for stronger project connection and heavier-duty system use.
According to the existing product content, the 300mm Thomas truss is popular in the European market and can be used for heavy lighting systems, speakers, large event frames, and square truss structures. The old content mentions a reference span of 13m with 875kg loading and a maximum system reference around 13m x 13m x 9m. These values should be treated as project references only. Final loading must be confirmed according to truss length, support points, hanging position, roof shape, wind condition, and complete structure design.
300mm Thomas Lighting Truss Features
- Heavy-duty 300mm truss: aluminum Thomas stage truss for lighting beams, moving head lights, rental systems, and event structures.

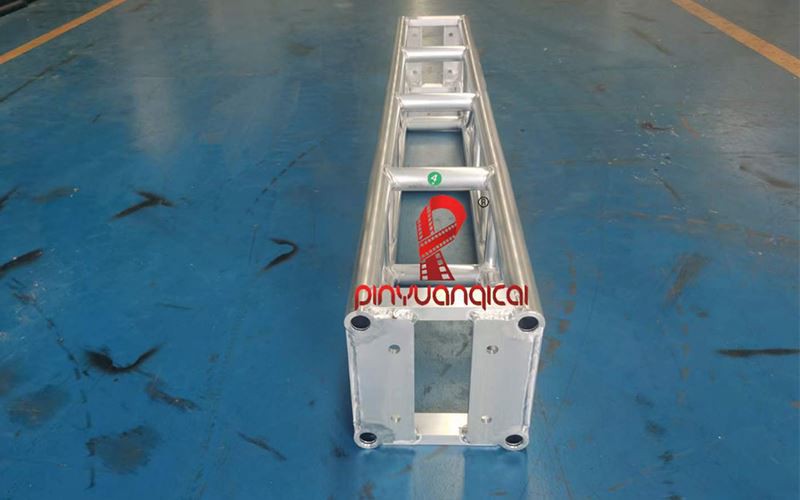

- L-plate end connection: old content describes two L aluminum plate boards at each end with four screw holes for bolted assembly.
- Convenient pin-hole layout: pin holes at 90 degree angles to the ground support easier access on flat installation surfaces.
- System structure flexibility: can be used for square frames, straight beams, roof layouts, and additional hanging truss positions.
- Project customization: length, finish, loading design, accessory matching, and packing can be customized according to your drawing.
Specification Reference
The following specifications are based on the existing product content. They should be used as reference information for quotation and layout planning. Final loading, span, and structure suitability must be confirmed according to the complete truss design and installation environment.
| Product type | Heavy-duty aluminum Thomas stage truss / bolted lighting truss |
| Reference size | 300mm x 300mm aluminum stage truss profile |
| Connection | Bolted connection with L-plate end design and four screw-hole reference |
| Span reference | Old content mentions 13m span reference; final span must be checked by structure design |
| Load reference | Old content mentions 875kg loading reference; actual loading depends on span, supports, and hanging positions |
| System reference | Old content mentions systems up to 13m x 13m x 9m as a reference for layout discussion |
| Common accessories | Bolts, L plates, corners, clamps, base plates, roof connectors, hoists, rigging parts, and export packing |
Common Applications
| Stage rental events | Heavy-duty lighting beams, moving head light support, speaker positions, and temporary event frames. |
| Square truss systems | Square box frames, truss grids, event entrances, display structures, and decorative stage layouts. |
| Stage roof layouts | Roof beams, roof frames, hanging light positions, and extra truss points added according to the drawing. |
| Display and booth use | Retail display booths, trade show structures, background truss, and decorative applications that need a stronger profile. |

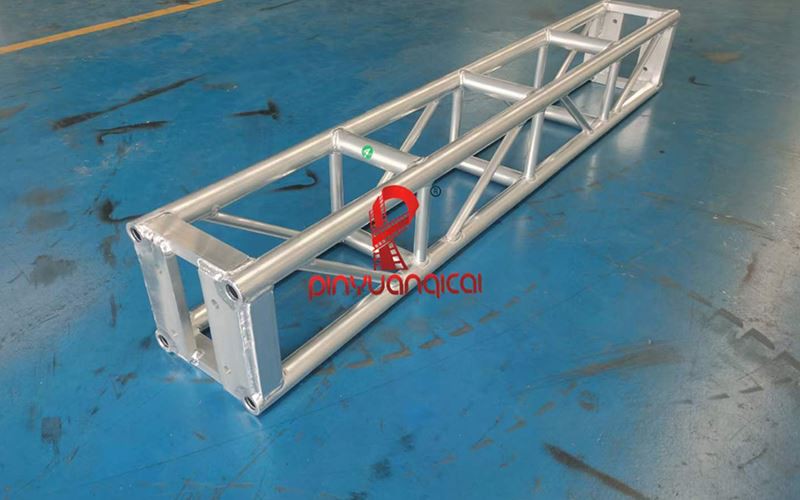

Product Detail Reference
Related Products
300x300mm Lightweight Square Bolt Truss
A lighter square bolt truss option for exhibition booths, lighting rigs, event frames, and display structures.
400x400mm Heavy-Duty Thomas Bolt Truss
A larger heavy-duty Thomas bolt truss option for stronger stage rigging, lighting systems, and event structures.
290mm Aluminum Stage Lighting Truss
A practical event lighting truss option for exhibition frames, banners, small event structures, and temporary support.
Application Cases
Factory And Loading Videos
FAQ
What is 300mm aluminum Thomas stage truss used for?
300mm aluminum Thomas stage truss is used for heavy-duty lighting rigs, moving head lights, speaker positions, rental stage systems, display booths, square truss frames, and temporary roof layouts.
How is this Thomas truss connected?
The old product content describes a bolted connection with two L aluminum plate boards at each end and four screw holes in the connection. Final hardware selection should match the complete truss system.
What span and load can this truss support?
The old product content mentions a 13m span reference with 875kg loading. Actual span and load capacity must be confirmed according to truss length, support points, hanging positions, roof design, wind condition, and installation method.
Can this truss be used for a square box or roof system?
Yes. The existing content mentions square box shapes and roof structures, including additional truss positions for hanging lights where necessary. ENO Stage can plan the layout according to your drawing.
Need A 300mm Thomas Stage Truss?
ENO Stage supplies 300mm aluminum Thomas stage truss, heavy-duty lighting truss, box truss systems, roof truss, corners, clamps, bases, hoists, bolts, and export packing support. Send us your drawing, span, height, hanging load, and accessory requirements so we can recommend a suitable truss system.
