A plated bolt 3-way T-shape square truss corner block is a custom truss connector used when a square aluminum truss system needs a strong T-shape connection point with bolt plate assembly. It is commonly used in stage roof systems, lighting grids, exhibition booth frames, LED screen support structures, outdoor event truss systems, and custom aluminum truss projects.
Compared with a simple straight connector, this 3-way T-shape truss corner block helps connect multiple square truss directions in a cleaner and more controlled way. ENO Stage can customize the plate design, bolt hole position, truss size, connection direction, surface finish, and matching accessories according to the customer’s existing truss system or new project drawing.

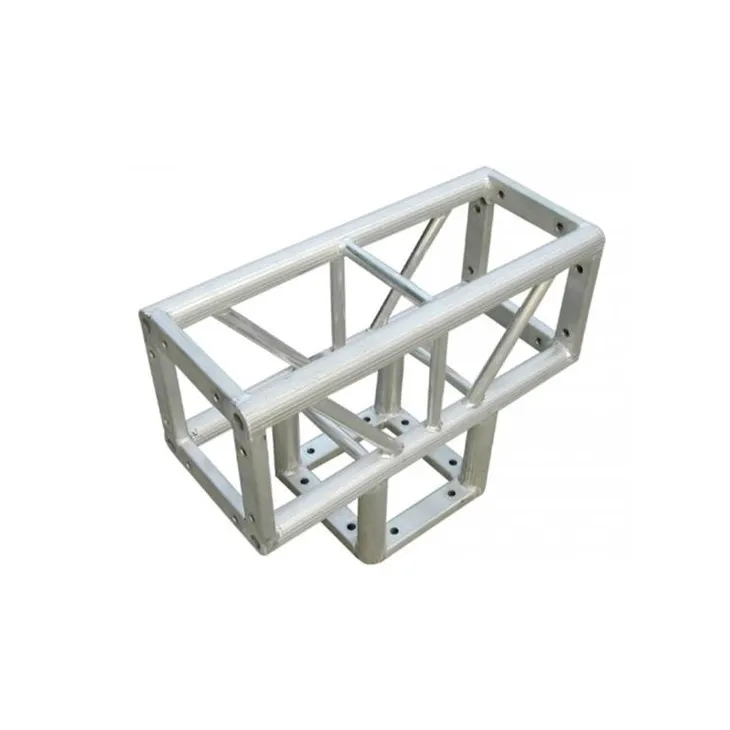

Plated Bolt 3-Way T-Shape Truss Corner Block
This corner block is designed for bolt-connected square truss structures that require a T-shape connection. It can be used where a truss frame needs one main direction and one side connection, or where a stage roof, lighting grid, exhibition frame, or LED screen support frame needs a custom 3-way node.
Product Features
- 3-way T-shape connection: designed for square truss systems that need a T-shaped truss corner block.
- Plated bolt design: suitable for bolt-connected truss structures and custom plate connection requirements.
- Custom matching: made according to truss size, bolt hole layout, plate design, connection direction, and project drawing.
- Event structure use: suitable for stage roof systems, lighting grids, exhibition frames, LED screen support, and outdoor events.
- Cleaner assembly: helps create a neater and more accurate truss node than improvised on-site connector solutions.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be confirmed before production.
Specification Reference
The following information is for customization reference. Final dimensions, plate thickness, bolt hole position, connection method, loading requirement, and installation method should be confirmed according to the matching truss system and project drawings.
| Product type | Plated bolt 3-way T-shape square truss corner block |
| Matching truss | Square aluminum truss, box truss, bolt truss, lighting truss, stage roof truss |
| Connection reference | Plated bolt connection or custom bolt plate connection design |
| Common applications | Stage roof systems, lighting grids, exhibition frames, LED screen support, outdoor event structures |
| Finish options | Silver aluminum, black finish, or customized finish |
| Customization | Truss size, T-shape direction, plate design, bolt hole position, connector style, and structure according to project requirements |
Where This T-Shape Truss Corner Block Is Used
A plated bolt 3-way T-shape square truss corner block is usually selected when the truss system needs a strong and accurate T-joint. It can help connect roof beams, side frames, lighting support structures, exhibition booth truss, and LED support frames where multiple truss directions meet at one connector block.
| Stage roof systems | Connects roof truss, side truss, support frames, and custom corner nodes in temporary stage roof structures. |
| Lighting grids | Helps build bolt truss lighting support frames for concerts, events, exhibitions, and studios. |
| Exhibition frames | Used in display structures, brand booths, product launch frames, hanging signs, and temporary truss installations. |
| LED screen support | Can be part of customized truss frames for LED screens, banners, lighting equipment, and event support systems. |
Custom Options
Because bolt truss corner blocks often need to match a specific truss system, this product should be confirmed according to the actual structure rather than treated as a universal part. Please provide your truss size, bolt hole drawing, plate requirement, connection direction, and photos of the existing truss system before production.
- Truss size: customized to match square truss, box truss, or bolt truss systems.
- Plate design: bolt plate size, thickness reference, and hole position can be made according to drawing.
- Connection direction: 3-way T-shape corner block or custom connection direction according to project layout.
- Finish: natural aluminum silver, black finish, or other project-specific finish.
- Application: stage roof, lighting support, exhibition frame, LED screen support, or outdoor event truss.
Applications
Bolt Truss T-Joint Nodes
Used where a square bolt truss system needs a stable 3-way T-shape connection point.
Stage Roof Truss Frames
Suitable for roof truss frames, side truss sections, support nodes, and temporary event roof structures.
Lighting Grid Structures
Helps build bolt-connected lighting grids for concerts, studios, exhibitions, and touring event production.
Exhibition And LED Frames
Can be used in exhibition booth frames, LED screen support structures, hanging signs, and custom display truss systems.
Product Detail Reference
Matching Accessories And Related Parts
This T-shape square truss corner block is often used together with other truss accessories in a complete stage or event structure. The final accessory list depends on the truss system design, installation method, and project loading requirements.
- Bolt sets, connection plates, washers, and custom fastener sets.
- Square truss, box truss, roof truss, and lighting truss sections.
- 2-way corners, 3-way corners, 4-way corners, box corners, and hinge blocks.
- Sleeve blocks, top sections, bases, and roof connectors for stage roof systems.
- Clamps, light hooks, shackles, hoists, and other rigging accessories.
Related Products
Application Cases
Factory And Loading Videos
FAQ
What is a plated bolt 3-way T-shape square truss corner block used for?
It is used when a square aluminum truss system needs a T-shape 3-way connection point with bolt plate assembly. Common uses include stage roof systems, lighting grids, exhibition frames, LED screen support, and outdoor event truss structures.
Can the bolt hole layout be customized?
Yes. The bolt hole position, plate design, truss size, connection direction, and finish can be customized according to the matching truss system and project drawing.
Is this corner block only for bolt truss?
This product is mainly designed around plated bolt connection. If your project uses another connection method, send the truss drawing and photos so we can check whether a custom connector design is suitable.
Can you provide a load chart for this truss corner block?
The load capacity depends on the truss size, span, support points, hanging load, installation direction, plate design, and full structure design. Contact us with your project details so we can check the suitable structure and loading requirements.
What information should I provide before ordering?
Please provide the truss size, bolt hole drawing, connection direction, plate requirement, quantity, finish, application, and project drawing if available. If you are not sure which connector is suitable, you can send photos of your truss system for reference.
Need A Plated Bolt Truss Corner Block?
ENO Stage supplies aluminum truss, bolt truss, truss corner blocks, roof connectors, sleeve blocks, bases, top sections, and related stage structure accessories for global event projects. If you need a plated bolt 3-way T-shape square truss corner block or another custom truss connector, contact us with your drawing or project requirements.
