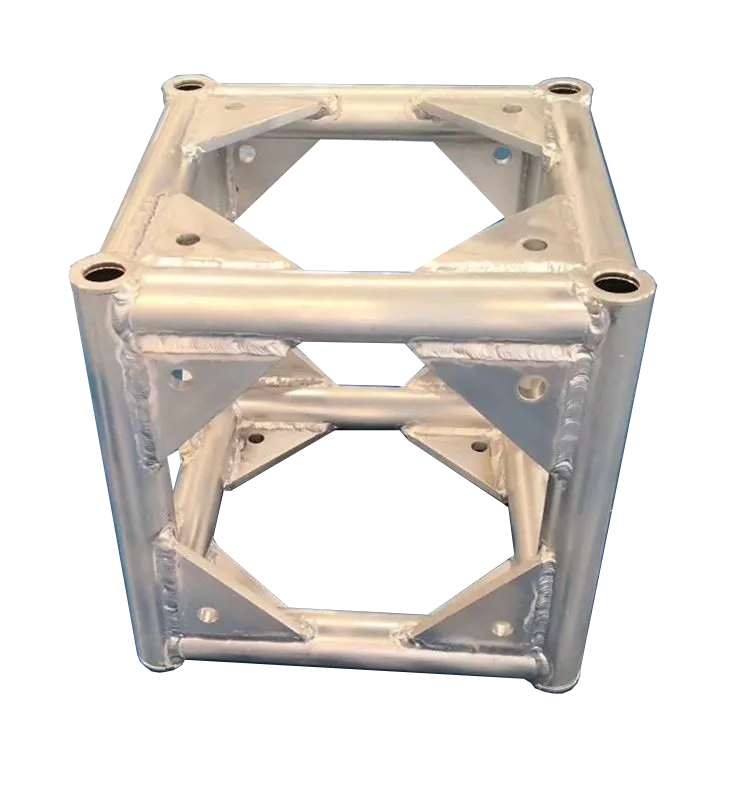

400x400mm bolt truss box corner is a custom aluminum truss connector used when 400x400mm bolt truss sections need a stable corner or multi-direction node. It is commonly used in stage roof systems, lighting grids, exhibition structures, display booths, entrance frames, tower connections, and temporary event structures where bolt truss sections require a repeatable connection point.
Quick project reference:
- Used when a 400x400mm bolt truss structure needs a box corner connection node.
- Suitable for stage roof grids, lighting grids, exhibition booths, display structures, entrance frames, and event truss layouts.
- Can be matched with 400x400mm square aluminum truss, bolt truss, box truss, or compatible custom truss systems.
- Box corner direction, bolt plate layout, hole position, finish, and accessory set can be customized according to drawings.
- Works with bolts, plates, clamps, bases, sleeve blocks, vertical columns, roof beams, and other matching truss accessories.
Send us your 400x400mm truss drawing, bolt hole pattern, connection direction, photos, quantity, finish requirement, and project layout. We can recommend a suitable bolt truss box corner for your structure.
The 400x400mm bolt truss box corner helps connect bolt truss sections while keeping the structure aligned and easier to assemble. For roof support points, lighting grid intersections, booth frames, entrance structures, and event truss systems, a properly matched box corner is safer and cleaner than improvised connection methods.
ENO Stage can customize this bolt truss box corner according to the matching truss size, bolt plate layout, hole position, tube orientation, surface finish, and full project drawing. Final load performance should be checked together with the complete truss system, span, support method, and installation environment.
Custom 400x400mm Bolt Truss Box Corner for Event Structures
This box corner is useful for 400x400mm bolt truss roof frames, heavy lighting grids, tower connection points, exhibition structures, and temporary event layouts that need a strong aluminum connection node. The bolt pattern and connection direction should be confirmed before production so the corner matches the customer’s existing truss system.
Product Features
- 400x400mm truss matching: designed for 400x400mm aluminum bolt truss systems and compatible custom truss structures.
- Bolt connection design: made according to the customer’s bolt plate size, hole pattern, tube layout, and project drawing.
- Event-ready aluminum structure: suitable for stage roofs, lighting grids, exhibitions, display booths, entrance frames, and temporary event structures.
- Custom direction options: connection direction can be discussed for corner, box node, roof frame, tower, or special truss layout requirements.
- Cleaner assembly: helps create a more accurate bolt truss corner than improvised on-site connection methods.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing 400x400mm truss size, bolt plate layout, load requirement, connection direction, and installation environment.
| Product type | 400x400mm bolt truss box corner / aluminum bolt truss corner block |
| Common use | Stage roof grid, lighting grid, exhibition frame, event entrance, display booth, custom truss structure |
| Material | 6082-T6 / 6061-T6 aluminum alloy or project-matched material |
| Truss size | 400x400mm, or customized according to the matching truss system |
| Connection type | Bolt connection, customized bolt plate and hole position according to the matching truss system |
| Connection direction | Box corner or multi-direction node, customized according to the project layout |
| Surface finish | Natural silver aluminum, black finish, powder coated finish, or customized finish |
| Customization | Truss size, tube diameter, wall thickness, bolt plate, hole position, connection direction, finish, and accessory set |
Applications
Stage Roof Nodes
Used as a bolt truss corner node for roof grids, support towers, span beams, and temporary concert roof structures.
Lighting Grid Corners
Suitable for 400x400mm lighting grids, LED support frames, speaker hanging layouts, and event rigging structures.
Exhibition And Entrance Frames
Can be used in exhibition booth frames, entrance arches, display structures, and brand activation truss layouts.
Rental Truss Systems
Practical for rental companies that need repeatable bolt truss corner blocks for touring, festivals, and custom event projects.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
Can this 400x400mm bolt truss box corner match my existing truss?
Yes. Please send your truss size, bolt plate size, hole position, tube diameter, wall thickness, and photos of the existing truss. We can check whether the box corner can be customized to match your system.
Can you customize the bolt hole pattern?
Yes. The bolt plate and hole position can be discussed according to your existing truss sample, drawing, or installation requirement.
Can you make black 400x400mm bolt truss box corners?
Yes. Natural aluminum, black finish, and powder coated finishes are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, bolt hole pattern, connection direction, quantity, finish, use environment, and any available drawing or reference photo.
Is this product suitable for load-bearing structures?
It can be used in event truss structures, but the final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 400x400mm Bolt Truss Box Corners?
Tell us your 400x400mm truss size, bolt hole pattern, connection direction, finish, quantity, load requirement, and project drawing. ENO Stage can help you customize a 400x400mm bolt truss box corner solution for stage roofs, lighting grids, exhibition frames, display booths, tower connections, and event structures.
