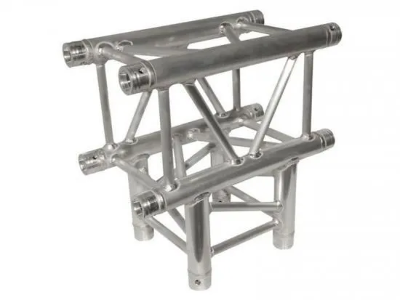

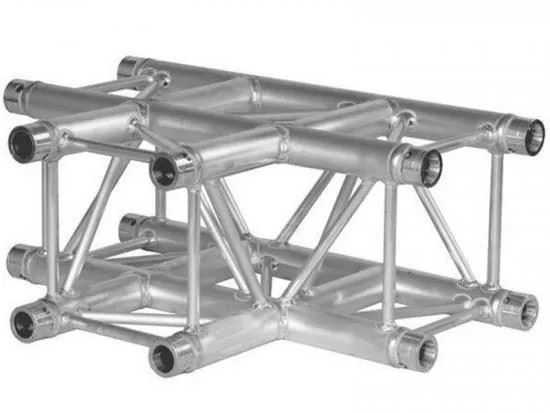

3 Way T-Shape Square Truss Corner is a custom aluminum truss connector used when square truss sections need to meet in a T-shaped three-direction node. It is commonly used in stage roof frames, lighting grids, exhibition booth structures, entrance frames, display structures, and temporary event truss systems where one truss line branches into a perpendicular direction.
ENO Stage can customize the 3 way T-shape square truss corner according to your square truss size, connection method, tube orientation, T-shape direction, hole position, surface finish, and matching accessories. For custom truss connector projects, the full structure drawing should be confirmed before production so the branch direction and connection hardware match the complete truss layout.
Quick project reference:
- Used when a square truss structure needs a T-shaped three-direction connection at one node.
- Suitable for stage roof branches, lighting grid extensions, exhibition booth frames, entrance structures, and event display systems.
- Can be matched with square aluminum truss, box truss, bolt truss, spigot truss, or compatible custom square truss systems.
- Truss size, tube diameter, wall thickness, T-shape direction, finish, and accessory set can be customized according to drawings.
- Works with pins, clips, bolts, clamps, bases, sleeve blocks, vertical columns, and other matching truss accessories.
Send us your square truss size, connection type, required T-shape direction, photos, quantity, finish requirement, and project drawing. We can help check whether this 3 way T-shape square truss corner can match your existing truss system or new event structure design.
Custom 3 Way T-Shape Corner for Square Truss Systems
This connector helps create a clean branch point where a main truss run needs to connect with a perpendicular side direction. It is useful for roof grid branches, lighting support extensions, exhibition booth frames, entrance structures, and rental truss systems that need repeatable custom T-shape corner parts.
Product Features
- 3 way T-shape layout: designed for square truss systems that require one main direction and one perpendicular branch direction.
- Custom matching: made according to the customer’s truss size, tube layout, connection type, T-shape direction, and project drawing.
- Event-ready aluminum structure: suitable for stage roofs, lighting grids, exhibitions, display booths, entrance frames, and temporary event structures.
- System compatibility: can be produced for spigot truss, bolt truss, square truss, box truss, or compatible custom truss systems.
- Cleaner assembly: helps keep the T-shaped node aligned during setup, teardown, and repeated rental use.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing square truss size, connection type, load requirement, T-shape direction, and installation environment.
| Product type | 3 way T-shape square truss corner / square truss branch connector |
| Common use | Stage roof branch, lighting grid extension, exhibition frame, event entrance, display booth, custom square truss structure |
| Material | Aluminum alloy, commonly 6082-T6 or project-matched material |
| Truss type | Square truss, box truss, spigot truss, bolt truss, or custom square truss system |
| Connection direction | 3 way T-shape direction, customized according to project layout |
| Connection type | Spigot, bolt, or customized connection according to the matching truss system |
| Surface finish | Natural silver aluminum, black finish, or customized finish |
| Customization | Truss size, tube diameter, wall thickness, connection type, T-shape direction, hole position, finish, and accessory set |
Applications
Stage Roof Branch Points
Used where a roof truss line needs to branch into a side direction while keeping the T-shaped node aligned.
Lighting Grid Extensions
Suitable for lighting grids that need side branches, short support runs, and controlled T-shaped connection points.
Exhibition Booth Frames
Can support booth frames, LED display truss, hanging signs, entrance structures, and custom display layouts.
Rental Branch Connector Sets
Practical for rental companies that need repeatable branch connector parts for roofs, grids, entrances, and event frames.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
Can this 3 way T-shape square truss corner match my existing truss?
Yes. Please send your square truss size, tube diameter, wall thickness, connection type, and photos of the existing truss. We can check whether the T-shape corner can be customized to match your system.
Can you customize the T-shape direction?
Yes. The branch direction, hole position, and tube orientation can be discussed according to your structure drawing and installation requirement.
Can you make black T-shape truss corners?
Yes. Natural aluminum and black finish are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, connection type, required T-shape direction, quantity, finish, use environment, and any available layout drawing or reference photo.
Is this product suitable for load-bearing structures?
It can be used in event truss structures, but final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 3 Way T-Shape Square Truss Corners?
Tell us your square truss size, connection type, required T-shape direction, finish, quantity, and project drawing. ENO Stage can help you customize a 3 way T-shape square truss corner solution for stage roofs, lighting grids, exhibition frames, entrances, and event structures.
