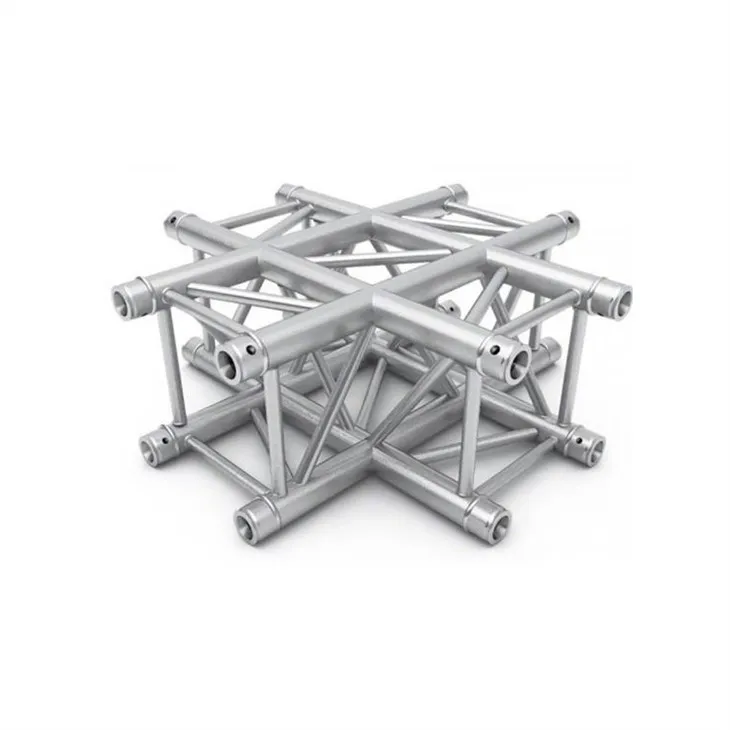

4 Way Square Truss Corner Completely Cross 90 Degrees is a custom aluminum truss connector used when four square truss sections need to meet at one complete 90 degree cross node. It is commonly used in stage roof grids, lighting grids, exhibition booth frames, entrance structures, display frames, and temporary event truss systems.
ENO Stage can customize the complete cross truss corner according to your square truss size, connection method, tube orientation, 90 degree cross direction, hole position, surface finish, and matching accessories. For custom square truss connector projects, the full structure drawing should be confirmed before production so each connection direction matches the complete truss grid.
Quick project reference:
- Used when a square truss structure needs four connection directions at one complete 90 degree cross node.
- Suitable for stage roof grids, lighting grid intersections, exhibition booth frames, entrance structures, and event display systems.
- Can be matched with square aluminum truss, box truss, bolt truss, spigot truss, or compatible custom square truss systems.
- Truss size, tube diameter, wall thickness, hole position, finish, and accessory set can be customized according to drawings.
- Works with pins, clips, bolts, clamps, bases, sleeve blocks, vertical columns, and other matching truss accessories.
Send us your square truss size, connection type, required cross direction, photos, quantity, finish requirement, and project drawing. We can help check whether this 4 way complete cross 90 degree corner can match your existing truss system or new event structure design.
Custom 4 Way Complete Cross Corner for Square Truss Systems
This connector helps create a cleaner truss grid where four square truss sections meet from left, right, front, and rear directions at one 90 degree node. It is useful for lighting grid centers, roof frame intersections, exhibition booth frames, entrance structures, and rental truss systems that need repeatable right angle cross connection points.
Product Features
- Complete 4 way cross layout: designed for square truss systems that require four right angle connection directions at one node.
- Custom matching: made according to the customer’s truss size, tube layout, connection type, cross direction, and project drawing.
- Event-ready aluminum structure: suitable for stage roofs, lighting grids, exhibitions, display booths, entrance frames, and temporary event structures.
- System compatibility: can be produced for spigot truss, bolt truss, square truss, box truss, or compatible custom truss systems.
- Cleaner assembly: helps keep the cross node aligned during setup, teardown, and repeated rental use.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing square truss size, connection type, load requirement, cross direction, and installation environment.
| Product type | 4 way square truss corner / complete cross 90 degree truss connector |
| Common use | Stage roof grid, lighting grid, exhibition frame, event entrance, display booth, custom square truss structure |
| Material | Aluminum alloy, commonly 6082-T6 or project-matched material |
| Truss type | Square truss, box truss, spigot truss, bolt truss, or custom square truss system |
| Connection direction | Complete 4 way cross connection at 90 degrees, customized according to project layout |
| Connection type | Spigot, bolt, or customized connection according to the matching truss system |
| Surface finish | Natural silver aluminum, black finish, or customized finish |
| Customization | Truss size, tube diameter, wall thickness, connection type, hole position, cross direction, finish, and accessory set |
Applications
Stage Roof Grid Intersections
Used where roof truss beams need a complete four-direction cross connection at a central 90 degree grid node.
Lighting Grid Cross Points
Suitable for lighting grid structures that require precise right angle alignment between several truss runs.
Exhibition Booth Frames
Can support booth frames, LED display truss, hanging signs, entrance structures, and custom display layouts.
Rental Square Truss Systems
Practical for rental companies that need repeatable complete cross connector parts for event roof grids and display frames.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
Can this 4 way complete cross truss corner match my existing square truss?
Yes. Please send your square truss size, tube diameter, wall thickness, connection type, and photos of the existing truss. We can check whether the corner can be customized to match your system.
What is the difference between this and a normal 4 way truss corner?
This version is intended for a complete cross layout where four truss sections meet at one 90 degree cross node. Final suitability should still be confirmed by your drawing and connection direction.
Can you make black complete cross truss corners?
Yes. Natural aluminum and black finish are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, connection type, required cross direction, quantity, finish, use environment, and any available layout drawing or reference photo.
Is this product suitable for load-bearing structures?
It can be used in event truss structures, but final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 4 Way Complete Cross 90 Degree Truss Corners?
Tell us your square truss size, connection type, required 90 degree cross direction, finish, quantity, and project drawing. ENO Stage can help you customize a 4 way square truss corner completely cross 90 degrees solution for stage roofs, lighting grids, exhibition frames, display booths, and event structures.
