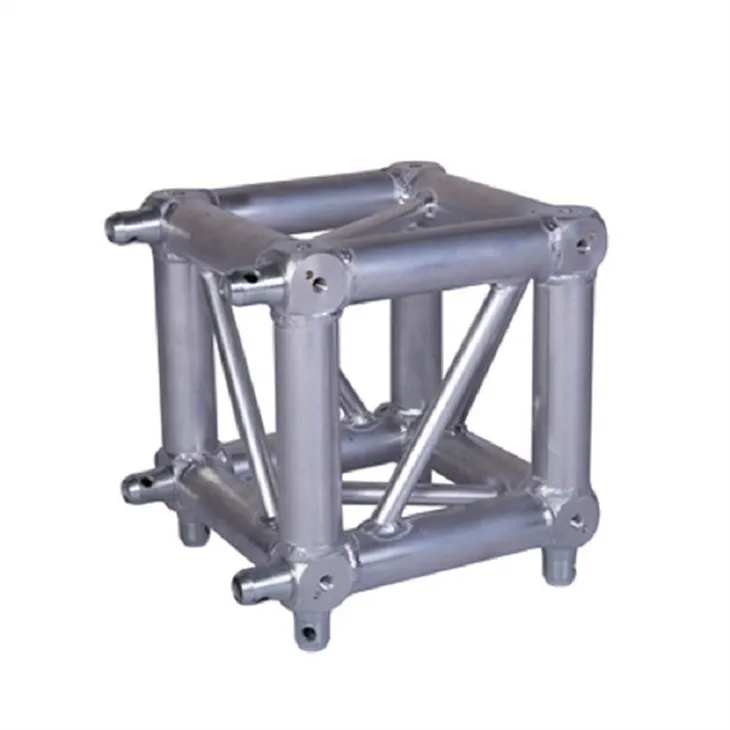

4 Way Square Truss Corner is a custom aluminum connector used when square truss sections need to meet at a four-direction node in a stage roof, lighting grid, exhibition frame, entrance structure, or temporary event truss system. It helps keep the truss layout aligned while allowing the connection direction, hole position, finish, and accessory set to be matched to the project drawing.
ENO Stage can customize the 4 way square truss corner according to your square truss size, connection method, tube orientation, direction layout, surface finish, and matching accessories. For custom square truss connector projects, we recommend confirming the full structure drawing before production so each direction and connection point matches the complete truss system.
Quick project reference:
- Used when a square truss structure needs a four-direction connection at one corner or node point.
- Suitable for stage roof frames, lighting grids, exhibition booths, display structures, entrance frames, and event truss layouts.
- Can be matched with square aluminum truss, box truss, bolt truss, spigot truss, or compatible custom truss systems.
- Truss size, tube diameter, wall thickness, hole position, finish, and accessory set can be customized according to drawings.
- Works with pins, clips, bolts, clamps, bases, sleeve blocks, vertical columns, and other matching truss accessories.
Send us your square truss size, connection type, required four-way direction, photos, quantity, finish requirement, and project drawing. We can help check whether this 4 way square truss corner can match your existing truss system or new event structure design.
Custom 4 Way Corner for Square Truss Systems
This connector helps connect square truss sections in four directions while keeping the structure easier to align during setup. It is useful for roof frame nodes, lighting grid intersections, exhibition booth structures, entrance frames, and rental truss systems that need stable custom corner parts rather than improvised on-site connection methods.
Product Features
- 4 way square connection: designed for square truss systems that require four connection directions at one node point.
- Custom matching: made according to the customer’s truss size, tube layout, connection type, direction layout, and project drawing.
- Event-ready aluminum structure: suitable for stage roofs, lighting grids, exhibitions, display booths, entrance frames, and temporary event structures.
- System compatibility: can be produced for spigot truss, bolt truss, square truss, box truss, or compatible custom truss systems.
- Cleaner assembly: helps keep the four-way truss node aligned during setup, teardown, and repeated rental use.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing square truss size, connection type, load requirement, direction layout, and installation environment.
| Product type | 4 way square truss corner / square truss four-direction connector |
| Common use | Stage roof frame, lighting grid, exhibition frame, event entrance, display booth, custom square truss structure |
| Material | Aluminum alloy, commonly 6082-T6 or project-matched material |
| Truss type | Square truss, box truss, spigot truss, bolt truss, or custom square truss system |
| Connection direction | 4 way square connection, customized according to the project layout |
| Connection type | Spigot, bolt, or customized connection according to the matching truss system |
| Surface finish | Natural silver aluminum, black finish, or customized finish |
| Customization | Truss size, tube diameter, wall thickness, connection type, hole position, direction layout, finish, and accessory set |
Applications
Stage Roof Corner Nodes
Used where square truss beams need a four-direction node in roof frames, side grids, entrance structures, or event support layouts.
Lighting Grid Connections
Suitable for lighting grid structures that need clean alignment between several square truss runs and support directions.
Exhibition Booth Frames
Can support booth frames, LED display truss, hanging signs, entrance structures, and custom display layouts.
Rental Truss Accessories
Practical for rental companies that need repeatable corner connector parts for roofs, grids, towers, and temporary event frames.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
Can this 4 way square truss corner match my existing truss?
Yes. Please send your square truss size, tube diameter, wall thickness, connection type, and photos of the existing truss. We can check whether the corner can be customized to match your system.
Can you customize the four-way direction?
Yes. The connection direction, hole position, and tube orientation can be discussed according to your structure drawing and installation requirement.
Can you make black square truss corners?
Yes. Natural aluminum and black finish are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, connection type, required direction layout, quantity, finish, use environment, and any available layout drawing or reference photo.
Is this product suitable for load-bearing structures?
It can be used in event truss structures, but final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 4 Way Square Truss Corners?
Tell us your square truss size, connection type, required four-way direction, finish, quantity, and project drawing. ENO Stage can help you customize a 4 way square truss corner solution for stage roofs, lighting grids, exhibition frames, display booths, and event structures.
