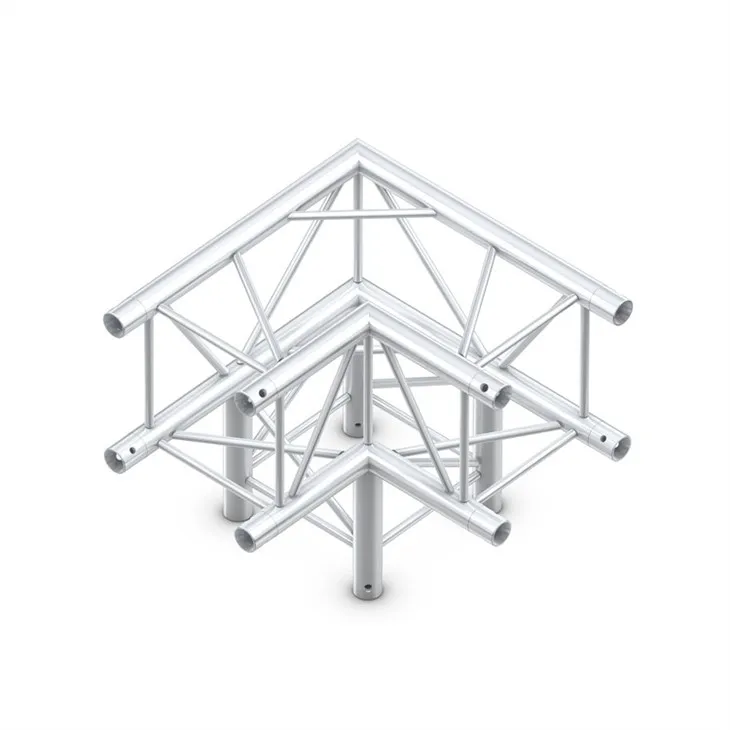

3 Way Truss Corner 90 Degrees is a custom aluminum truss connector used when square truss sections need to meet at a right angle corner with an additional third direction. It is commonly used in stage roof frames, lighting grids, exhibition booth structures, entrance frames, display structures, and temporary event truss systems.
ENO Stage can customize the 3 way truss corner 90 degrees according to your truss size, connection method, tube orientation, 90 degree direction, hole position, surface finish, and matching accessories. For custom truss connector projects, the full structure drawing should be confirmed before production so the right angle direction and third connection point match the complete truss layout.
Quick project reference:
- Used when a truss structure needs a 90 degree corner with a third connection direction.
- Suitable for stage roof corners, lighting grid turns, exhibition booth frames, entrance structures, and event display systems.
- Can be matched with square aluminum truss, box truss, bolt truss, spigot truss, or compatible custom truss systems.
- Truss size, tube diameter, wall thickness, hole position, finish, and accessory set can be customized according to drawings.
- Works with pins, clips, bolts, clamps, bases, sleeve blocks, vertical columns, and other matching truss accessories.
Send us your truss size, connection type, required 90 degree direction, photos, quantity, finish requirement, and project drawing. We can help check whether this 3 way truss corner can match your existing truss system or new event structure design.
Custom 3 Way 90 Degree Corner for Truss Layouts
This connector helps create a cleaner right angle corner where two truss runs turn at 90 degrees and one additional direction needs to connect at the same node. It is useful for roof frame corners, lighting grid turns, booth frames, entrance structures, and rental truss systems that need repeatable custom corner parts.
Product Features
- 3 way 90 degree layout: designed for truss systems that require a right angle corner plus one additional connection direction.
- Custom matching: made according to the customer’s truss size, tube layout, connection type, 90 degree direction, and project drawing.
- Event-ready aluminum structure: suitable for stage roofs, lighting grids, exhibitions, display booths, entrance frames, and temporary event structures.
- System compatibility: can be produced for spigot truss, bolt truss, square truss, box truss, or compatible custom truss systems.
- Cleaner assembly: helps keep the right angle node aligned during setup, teardown, and repeated rental use.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing truss size, connection type, load requirement, 90 degree direction, and installation environment.
| Product type | 3 way truss corner 90 degrees / right angle truss connector |
| Common use | Stage roof corner, lighting grid turn, exhibition frame, event entrance, display booth, custom truss structure |
| Material | Aluminum alloy, commonly 6082-T6 or project-matched material |
| Truss type | Square truss, box truss, spigot truss, bolt truss, or custom truss system |
| Connection direction | 3 way connection with 90 degree corner direction, customized according to project layout |
| Connection type | Spigot, bolt, or customized connection according to the matching truss system |
| Surface finish | Natural silver aluminum, black finish, or customized finish |
| Customization | Truss size, tube diameter, wall thickness, connection type, 90 degree direction, hole position, finish, and accessory set |
Applications
Stage Roof Corner Turns
Used where roof truss runs need to turn at 90 degrees while keeping one additional connection direction available.
Lighting Grid Right Angles
Suitable for lighting grids that need accurate right angle turns, support branches, or controlled connection points.
Exhibition Booth Corners
Can support booth frames, LED display truss, hanging signs, entrance structures, and custom display layouts.
Rental Corner Connector Sets
Practical for rental companies that need repeatable right angle corner parts for roofs, grids, entrance frames, and event structures.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
Can this 3 way truss corner 90 degrees match my existing truss?
Yes. Please send your truss size, tube diameter, wall thickness, connection type, and photos of the existing truss. We can check whether the corner can be customized to match your system.
Can you customize the 90 degree direction?
Yes. The corner direction, third connection direction, hole position, and tube orientation can be discussed according to your structure drawing and installation requirement.
Can you make black 3 way truss corners?
Yes. Natural aluminum and black finish are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, connection type, required 90 degree direction, quantity, finish, use environment, and any available layout drawing or reference photo.
Is this product suitable for load-bearing structures?
It can be used in event truss structures, but final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 3 Way 90 Degree Truss Corners?
Tell us your truss size, connection type, required 90 degree direction, finish, quantity, and project drawing. ENO Stage can help you customize a 3 way truss corner solution for stage roofs, lighting grids, exhibition frames, entrances, and event structures.
