描述
Custom vertical down 3 way square truss corner connector for square aluminum truss structures, stage roof systems, lighting grids, exhibition frames, LED screen support frames, and event rigging projects. ENO Stage can customize the truss corner size, connection type, hole position, direction, surface finish, and matching accessories according to your existing truss system or new project drawing.
Quick project reference:
- Used when a square truss frame needs a 3 way corner with one vertical downward truss direction.
- Suitable for stage roof systems, lighting grids, exhibition booths, LED screen frames, and outdoor event structures.
- Can be matched with square aluminum truss, box truss, spigot truss, bolt truss, or custom truss systems.
- Connection type, direction, finish, hole position, and structural details can be made according to project drawings.
- Works with truss accessories such as pins, clips, bolts, sleeve blocks, bases, roof connectors, and rigging parts.
Send us your truss size, connection type, direction sketch, photos, quantity, finish requirement, and project drawing. We can recommend a suitable vertical down 3 way square truss corner connector for your structure.

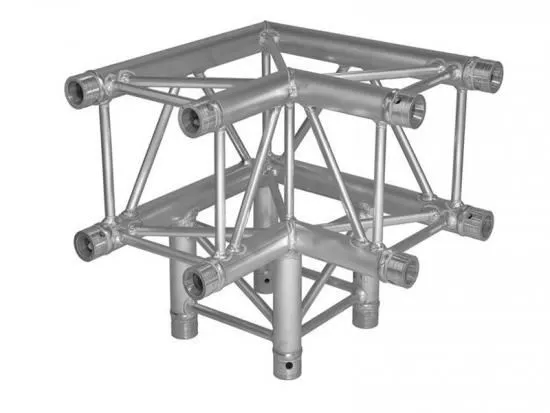

The vertical down 3 way square truss corner is a custom truss connector used when a square truss structure needs to turn in multiple directions and connect with a downward vertical truss section. It is commonly used in stage roof systems, lighting support frames, exhibition structures, LED screen support frames, and outdoor event truss systems.
ENO Stage can customize this type of truss corner according to the matching truss size, connection method, installation direction, surface finish, and project structure. Instead of using one fixed specification for every project, we match the connector to the customer’s existing truss system or new stage structure design.
Custom Square Truss Corner for Vertical Down Connections
This 3 way truss corner helps connect horizontal square truss sections with a vertical downward direction. It is useful when the truss system needs a clean corner connection, a hanging point, a side frame, or a downward support section in a temporary event structure.
Product Features
- Multi-direction connection: designed for square truss structures that need a 3 way corner with one vertical down direction.
- Custom matching: made according to the customer’s truss size, connection type, direction, and project structure.
- Event-ready structure: suitable for temporary stage roof systems, lighting frames, exhibition structures, and LED screen support frames.
- Clean corner solution: helps create a stronger and neater connection point than improvised on-site assembly.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following information is for customization reference. Final dimensions and connection details should be confirmed according to the matching truss system and project drawings.
| Product type | Vertical down 3 way square truss corner connector |
| Matching truss | Square aluminum truss, box truss, lighting truss, stage roof truss |
| Connection options | Spigot connection, bolt connection, or custom connection design |
| Common applications | Stage roof systems, lighting grids, exhibition frames, LED screen support, outdoor event structures |
| Finish options | Silver aluminum, black finish, or customized finish |
| Customization | Size, direction, hole position, connector style, and structure can be made according to project requirements |
- Suitable for square aluminum truss and box truss structures.
- Used for vertical down connection in roof, lighting, display, and stage structures.
- Can be matched with spigot truss or bolt truss systems according to project requirements.
- Useful for custom stage roof frames, exhibition truss booths, lighting rigs, and LED screen frames.
- Available with silver aluminum finish, black finish, or project-specific surface treatment.
Where This Truss Corner Is Used
A vertical down 3 way square truss corner is usually selected when the structure needs more than a simple straight connection. It can be used in the corner area of a truss frame, at a support position, or in a custom frame design where one truss direction needs to go downward.
| Stage roof systems | Connects roof truss, side truss, and vertical truss sections in temporary stage structures. |
| Lighting rigs | Helps build custom lighting support frames for concerts, events, exhibitions, and studios. |
| Exhibition frames | Used in display structures, brand booths, product launch frames, and temporary truss installations. |
| LED screen support | Can be part of customized truss support frames for LED screens and event equipment. |
Custom Options
Because many truss systems are customized, this connector should be confirmed according to the actual project instead of using a fixed universal size. Please provide your truss size, connection type, drawing, or photos of the existing truss system before production.
- Truss size: customized to match the square truss or box truss system.
- Connection type: spigot connection, bolt connection, or custom connection design.
- Direction: vertical down 3 way connection, T connection, corner connection, or custom direction.
- Finish: natural aluminum silver, black finish, or other project-specific finish.
- Application: stage roof, lighting support, exhibition frame, LED screen support, or outdoor event truss.
Matching Accessories And Related Parts
This truss corner is often used together with other truss accessories in a complete stage or event structure. The final accessory list depends on the truss system design, installation method, and project loading requirements.
- Spigot pins, clips, and connection sets.
- Bolt sets and connection plates for bolt truss systems.
- Box corners, 2 way corners, 3 way corners, and 4 way corner blocks.
- Sleeve blocks, top sections, bases, and roof connectors for stage roof systems.
- Clamps, light hooks, shackles, and other rigging accessories for lighting and event equipment.
Applications
Stage Roof Vertical Down Corners
Used when a square truss roof system needs a corner connection with one vertical downward truss direction.
Lighting Grid Support Frames
Suitable for concert lighting grids, exhibition lighting frames, and temporary event rigging structures.
LED Screen Truss Structures
Helps connect horizontal and vertical square truss sections in LED screen support frames and display systems.
Custom Exhibition Truss Booths
Useful for branded booths, display frames, hanging signs, and custom aluminum truss structures.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
Can this truss corner be customized for my existing truss?
Yes. Please send the truss size, connection type, photos, or drawings. We can match the corner connector to your existing truss system where possible.
Is this connector for spigot truss or bolt truss?
It can be made according to the required connection type. Spigot connection, bolt connection, and project-specific structures can be discussed before production.
Can you provide a load chart for this truss corner?
The load capacity depends on the truss size, span, support points, hanging load, installation direction, and full structure design. Contact us with your project details so we can check the suitable structure and loading requirements.
What information should I provide before ordering?
Please provide the truss size, connection type, quantity, finish, application, and project drawing if available. If you are not sure which connector is suitable, you can send photos of your truss system for reference.
Need A Custom Truss Connector?
ENO Stage supplies aluminum truss, truss corners, sleeve blocks, bases, roof connectors, and related stage structure accessories for global event projects. If you need a vertical down 3 way square truss corner or another custom truss connector, contact us with your drawing or project requirements.
