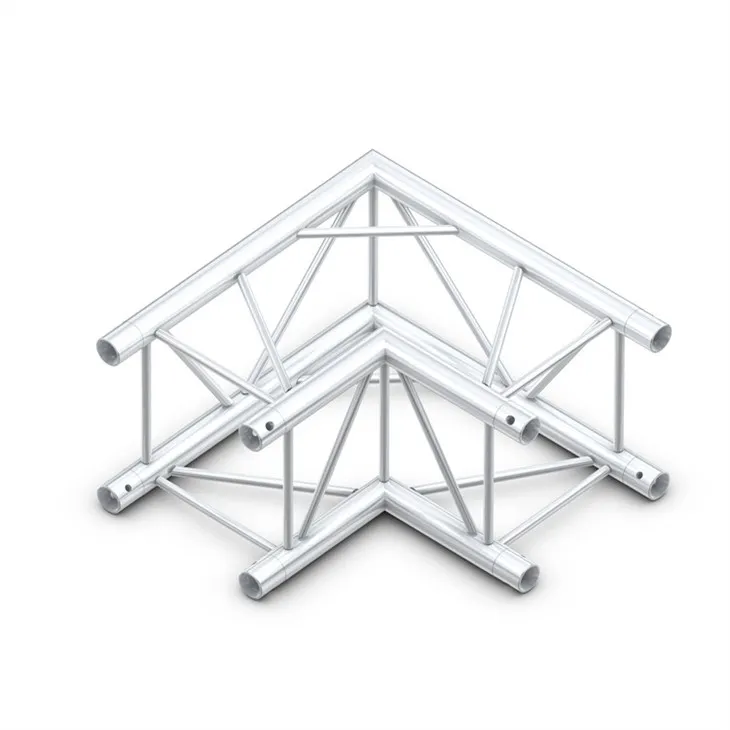

2 Way Truss Corner 90 Degrees is a standard custom aluminum truss connector used when two truss sections need to meet at a clean right angle. It is commonly used in square stage roof frames, lighting grid corners, exhibition booth structures, entrance frames, display structures, and event truss layouts where accurate 90 degree alignment is required.
ENO Stage can customize the 2 way 90 degree truss corner according to your truss size, tube layout, connection method, hole position, surface finish, and matching accessories. For square truss frames and right angle event structures, the full layout drawing should be confirmed before production so the corner direction, connection hardware, and accessory set match the complete system.
Quick project reference:
- Used when an aluminum truss structure needs a clean 2 way right angle corner connection.
- Suitable for square stage roof frames, lighting grids, exhibition booths, entrances, display structures, and temporary event layouts.
- Can be matched with square aluminum truss, box truss, spigot truss, bolt truss, or compatible custom truss systems.
- Truss size, tube diameter, wall thickness, connection type, 90 degree angle, hole position, finish, and accessory set can be customized according to drawings.
- Works with pins, clips, bolts, clamps, bases, sleeve blocks, hanging points, and other matching truss accessories.
Send us your truss size, connection type, required angle, photos, quantity, finish requirement, and project drawing. We can help check whether this 2 way 90 degree truss corner can match your existing truss system or new event structure design.
Custom 2 Way Truss Corner for 90 Degree Connections
This type of 2 way truss corner helps connect two truss sections at a controlled 90 degree angle while keeping the structure square, aligned, and easier to assemble. It is useful for roof frame corners, lighting grid corners, exhibition booth frames, entrance structures, and temporary event frames that need repeatable right angle connections.
Product Features
- 90 degree right angle connection: designed for truss structures that require a clean 2 way square corner connection.
- Custom matching: made according to the customer’s truss size, tube layout, connection type, angle, hole position, and project drawing.
- Event-ready aluminum structure: suitable for stage roofs, lighting frames, exhibitions, display booths, entrance frames, and temporary event structures.
- System compatibility: can be produced for spigot truss, bolt truss, square truss, box truss, or compatible custom truss systems.
- Cleaner assembly: helps create a more accurate square frame corner than temporary clamps or improvised connection methods.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing truss size, connection type, load requirement, frame layout, and installation environment.
| Product type | 2 way truss corner / 90 degree aluminum truss connector |
| Common use | Stage roof frame, lighting grid, exhibition frame, event entrance, display booth, custom truss structure |
| Material | Aluminum alloy, commonly 6082-T6 or project-matched material |
| Truss type | Square truss, box truss, spigot truss, bolt truss, or custom aluminum truss system |
| Angle | 90 degrees, customized according to project layout |
| Connection type | Spigot, bolt, or customized connection according to the matching truss system |
| Surface finish | Natural silver aluminum, black finish, or customized finish |
| Customization | Truss size, tube diameter, wall thickness, angle, connection type, hole position, finish, and accessory set |
Applications
Square Stage Roof Corners
Used where stage roof frames, side beams, and front truss lines need accurate 90 degree corner alignment.
Lighting Grid Right Angles
Suitable for lighting grids, hanging points, and rectangular rigging layouts that need repeatable square connections.
Exhibition Booth Frames
Can support booth frames, LED display structures, hanging signs, entrance frames, and custom display layouts.
Rental Square Frame Sets
Practical for rental truss systems that need standard right angle corners for repeated event setup and teardown.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
Can this 2 way 90 degree truss corner match my existing truss?
Yes. Please send your truss size, tube diameter, wall thickness, connection type, and photos of the existing truss. We can check whether the corner can be customized to match your system.
Can you customize other angles besides 90 degrees?
Yes. We can discuss 45 degree, 60 degree, 90 degree, 120 degree, 135 degree, or other custom angles according to your structure drawing and project requirement.
Can you make black 90 degree truss corners?
Yes. Natural aluminum and black finish are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, required angle, connection type, quantity, finish, use environment, and any available layout drawing or reference photo.
Is this product suitable for load-bearing structures?
It can be used in event truss structures, but final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 2 Way 90 Degree Truss Corners?
Tell us your truss size, required angle, connection type, finish, quantity, and project drawing. ENO Stage can help you customize a 2 way 90 degree truss corner solution for stage roofs, lighting grids, exhibition frames, entrances, and event structures.
