Custom 2 way curved square truss corner 90 degrees for aluminum square truss systems, stage roof structures, circular lighting designs, exhibition frames, and event rigging projects. ENO Stage can customize the truss corner size, arc radius, connection type, finish, and matching accessories according to your existing truss system or new project drawing.
Quick project reference:
- Used when a square truss structure needs a smooth 90 degree curved corner instead of a sharp straight-angle block.
- Suitable for circular truss sections, curved lighting grids, stage roof decoration, exhibition frames, and event entrance structures.
- Can be matched with square aluminum truss, spigot truss, bolt truss, or custom truss systems.
- Arc radius, tube size, connection type, finish, and hole position can be customized according to project drawings.
- Works with pins, clips, bolts, sleeve blocks, bases, roof connectors, clamps, and rigging accessories.
Send us your truss size, connection type, required radius, direction sketch, photos, quantity, finish requirement, and project drawing. We can recommend a suitable 2 way curved square truss corner for your structure.

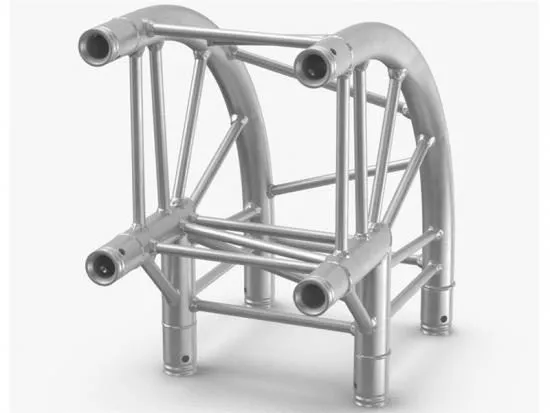

The 2 way curved square truss corner 90 degrees is a custom aluminum truss connector used when a square truss structure needs a smooth curved turn. It is commonly used in circular lighting truss systems, curved stage roof designs, exhibition frames, entrance arches, event decoration structures, and other projects where the truss line needs a cleaner 90 degree curved transition.
ENO Stage can customize this curved truss corner according to the matching truss size, arc radius, connection method, installation direction, surface finish, and project structure. Instead of using one fixed size for every project, we match the corner to the customer’s existing truss system or new event structure drawing.
Custom Curved Square Truss Corner for 90 Degree Turns
This type of 2 way curved truss corner helps connect two square truss sections with a smooth 90 degree curve. It is useful when the project requires a rounded lighting frame, a curved roof outline, a circular truss segment, or a visually cleaner transition than a standard sharp corner.
Product Features
- Smooth 90 degree curved connection: designed for square truss structures that need a rounded corner turn.
- Custom radius option: arc radius, tube size, diagonal brace layout, and connection details can be made according to drawings.
- Event-ready aluminum structure: suitable for stage roofs, lighting grids, exhibitions, entrance frames, circular truss designs, and decorative event structures.
- Matching system support: can be produced to match spigot truss, bolt truss, or other compatible square truss systems.
- Cleaner visual result: helps create smooth truss lines for visible event structures and brand display areas.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing truss system, arc radius, load requirement, connection type, and installation environment.
| Product type | 2 way curved square truss corner / 90 degree curved truss connector |
| Common use | Curved lighting truss, circular truss, stage roof outline, exhibition frame, entrance arch, decorative event structure |
| Material | Aluminum alloy, commonly 6082-T6 or project-matched material |
| Truss shape | Square truss / box truss system |
| Angle | 90 degree curved corner |
| Connection type | Spigot, bolt, or customized connection according to the matching truss system |
| Surface finish | Natural silver aluminum, black finish, or customized finish |
| Customization | Truss size, arc radius, tube diameter, wall thickness, hole position, finish, and accessory set |
Applications
- Concert lighting truss and circular lighting structures
- Curved stage roof systems and decorative roof outlines
- Exhibition booth frames and event display structures
- Entrance arches, brand activation frames, and temporary event gateways
- Outdoor festival truss systems and custom event structures
- Rental truss systems that require special curved corners
Product Detail Reference

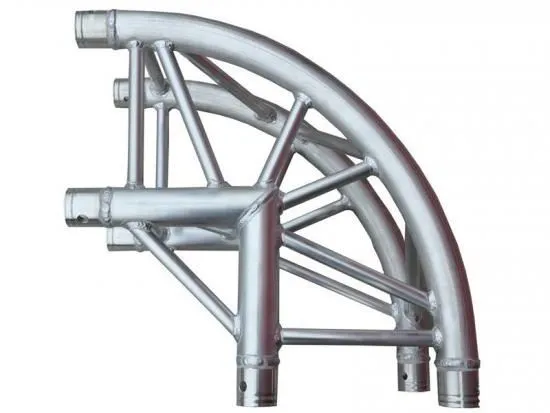

The image below shows the 2 way curved square truss corner reference for a 90 degree curved connection. Final production details should be confirmed according to your required truss size, arc radius, connection type, and project structure drawing.
Related Products
- Vertical Down 3 Way Square Truss Corner Connector
- Plated Bolt 3 Way T Shape Square Truss Corner Block
- 400x400mm Bolt Truss Box Corner
- Stage Truss System
Application Cases
ENO Stage truss corner connectors are used in temporary event structures, stage roof systems, exhibition frames, lighting grids, circular truss designs, and custom outdoor event projects. For curved truss structures, we recommend confirming the full layout drawing before production so the corner radius, connection direction, and accessory set match the complete structure.
Factory And Loading Videos
ENO Stage supports custom aluminum truss production, trial assembly reference, packing, and container loading for stage and event structure projects. For customized curved corners, please provide your drawing or existing truss sample details before production so we can confirm the matching dimensions and connection method.
- Factory production and welding reference can be provided according to order requirements.
- Packing photos and loading photos can be supplied before shipment.
- Custom truss corner projects can be checked against drawings before mass production.
FAQ
Can this curved truss corner match my existing truss?
Yes. Please send your truss size, tube diameter, wall thickness, connection type, and photos of the existing truss. We can check whether the curved corner can be customized to match your system.
Can the arc radius be customized?
Yes. The radius should be confirmed according to your structure drawing, lighting layout, installation space, and required visual effect.
Can you make black curved truss corners?
Yes. Natural aluminum and black finish are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, required radius, connection type, quantity, finish, use environment, and any available layout drawing or reference photo.
Is this product for load-bearing structures?
It can be used in event truss structures, but the final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 2 Way Curved Truss Corners?
Tell us your truss size, required radius, connection type, finish, quantity, and project drawing. ENO Stage can help you customize a 2 way curved square truss corner solution for stage roofs, lighting grids, circular truss designs, exhibition frames, and event structures.
