Description

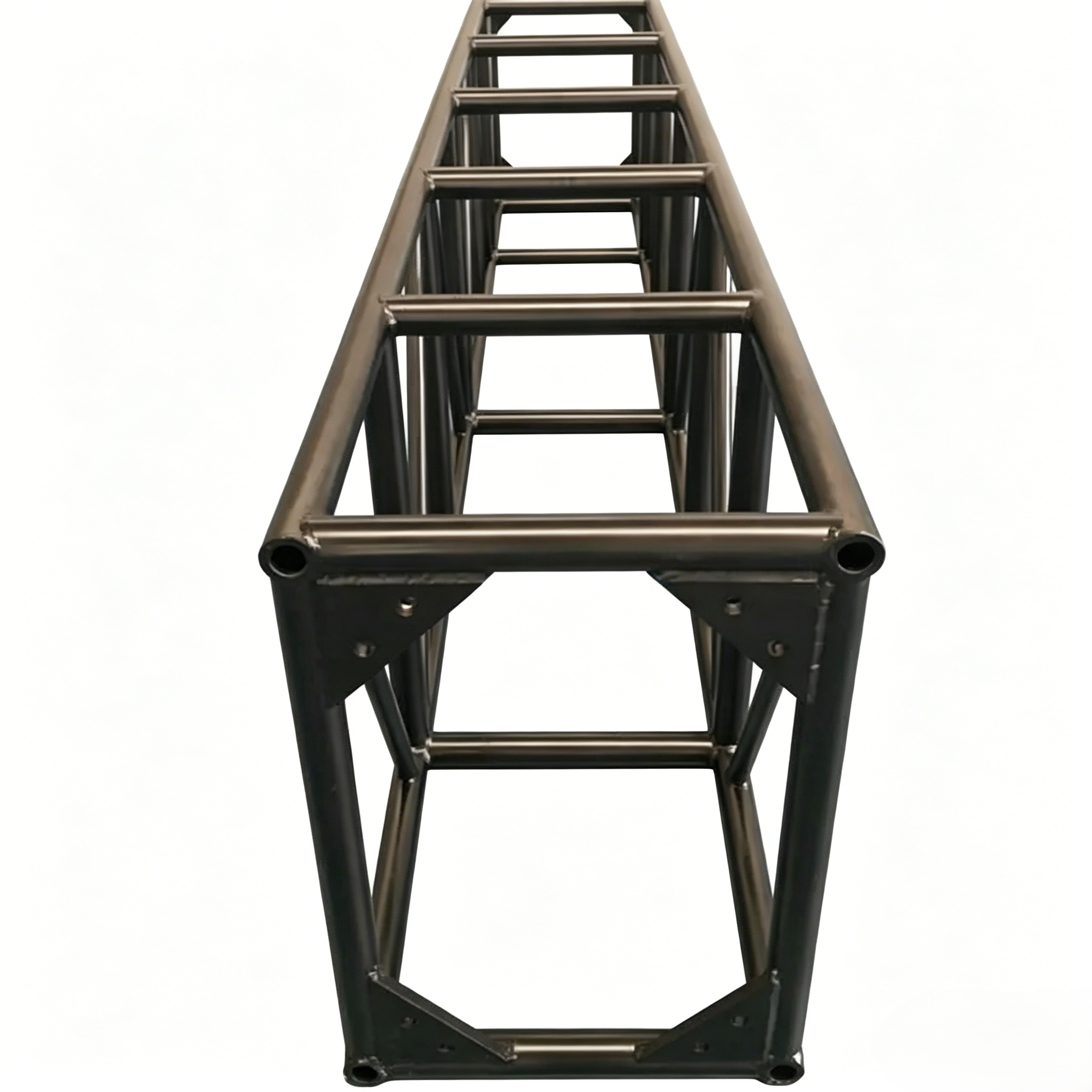

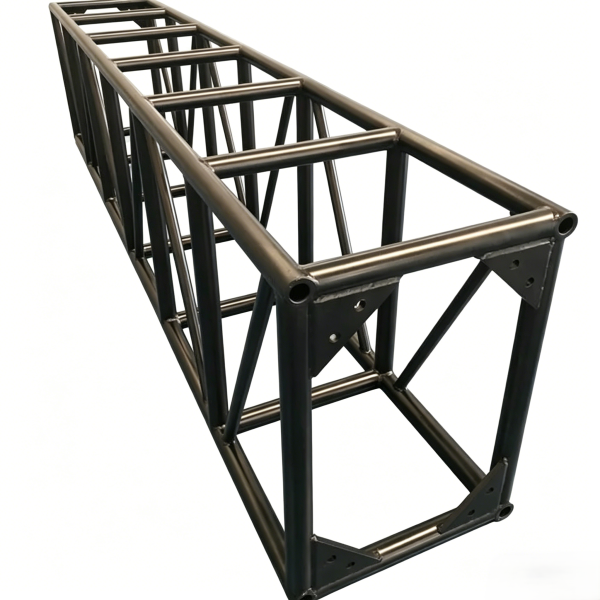

520x760mm heavy-duty aluminum screw square truss is a large rectangular stage truss profile for stage roof beams, concert lighting rigs, sound hanging systems, LED screen support, exhibition structures, background layouts, and outdoor event truss systems. It is selected for projects that need stronger beam performance than standard small lighting truss and more structure depth for larger temporary installations.
The existing product content describes aluminum alloy truss as a stage lighting truss system made with aluminum material 6082-T6 reference after cutting, processing, welding, polishing, painting, and other production treatments. It also describes 520x760mm heavy-duty truss as a big-span beam used to hang lights, sound equipment, and event structures. The product title mentions screw square truss, while the old feature list also mentions conical connection and tapered pins, so the final connection set should be confirmed according to the project drawing and order requirement.
520x760mm Heavy-Duty Aluminum Truss Features
- 520x760mm rectangular profile: suitable for larger roof beams, stage lighting systems, speaker support, LED screen structures, and big-span event layouts.
- Aluminum 6082-T6 reference: old content mentions aluminum material 6082-T6 with cutting, processing, welding, polishing, painting, and finishing treatments.
- Heavy-duty project use: suitable for indoor and outdoor performances, event celebrations, exhibition structures, lighting grids, and sound hanging systems.
- Connection set confirmation: screw, conical, pin, or bolt connection details should be confirmed before production according to the actual project design.
- System accessory matching: can work with towers, roof corners, sleeve blocks, bases, hoists, clamps, pins, bolts, safety cables, and export packing accessories.
Specification Reference
The following details are organized from the existing product content and visible product images. Final specifications should be confirmed according to span, support points, hanging load, connection method, wind condition, and complete structure drawing.
| Product type | 520x760mm heavy-duty aluminum screw square truss / rectangular stage lighting truss |
| Reference size | 520x760mm heavy-duty rectangular truss profile |
| Material reference | Aluminum alloy 6082-T6 reference from old content |
| Connection reference | Product title mentions screw square truss; old features mention conical connection and tapered pins. Final connection set should be confirmed before order. |
| Common use | Stage roof beam, lighting rig, sound hanging system, LED screen support, exhibition structure, outdoor event roof, background layout |
| Customization | Length, finish, connection kit, corner matching, accessory set, packing, and loading design |
Common Applications
| Stage roof beams | Used as main beams or side beams for larger concert roof structures and temporary outdoor event systems. |
| Lighting and sound hanging | Supports moving lights, speaker systems, cables, banners, and rigging equipment according to approved loading design. |
| LED screen support | Can be planned for LED display frames, side screens, backdrop truss, and large event visual structures. |
| Performance exhibitions | Suitable for performance exhibitions, event celebrations, brand activities, and temporary background structures. |
Design And Loading Notes
- Confirm roof span, support height, support points, truss orientation, and connection set before production.
- Lighting, sound, LED screen, banner, cable, and decoration loads should be listed clearly for structural checking.
- Outdoor projects should consider wind condition, ground condition, base support, ballast, roof layout, and inspection rules.
- Hoists, clamps, shackles, pins, bolts, safety cables, roof corners, and sleeve blocks should match the approved system drawing.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
What is 520x760mm heavy-duty aluminum screw square truss used for?
It is used for stage roof beams, concert lighting rigs, sound hanging systems, LED screen support, performance exhibitions, event celebrations, background layouts, and large temporary stage structures.
What material is used for this heavy-duty truss?
The old product content mentions aluminum material 6082-T6 reference. Actual tube detail, finish, and connection set can be confirmed according to the order and project drawing.
Is the connection screw, conical, or pin type?
The old title mentions screw square truss, while the old feature list mentions conical connection and tapered pins. Please confirm the required connection type before order so ENO Stage can match the correct truss and accessory set.
How do I confirm the correct loading and span?
Please provide the span, support height, support method, hanging load, lighting and sound equipment list, venue condition, wind condition, and layout drawing. Final loading should be checked according to the full truss system design.
Need A 520x760mm Heavy-Duty Truss Solution?
ENO Stage supplies 520x760mm heavy-duty aluminum square truss, stage roof truss, lighting truss, LED screen support truss, roof accessories, and complete event truss structures. Send us your layout, span, height, hanging load, support method, and finish requirement so we can recommend a suitable truss system and packing plan.
