Description

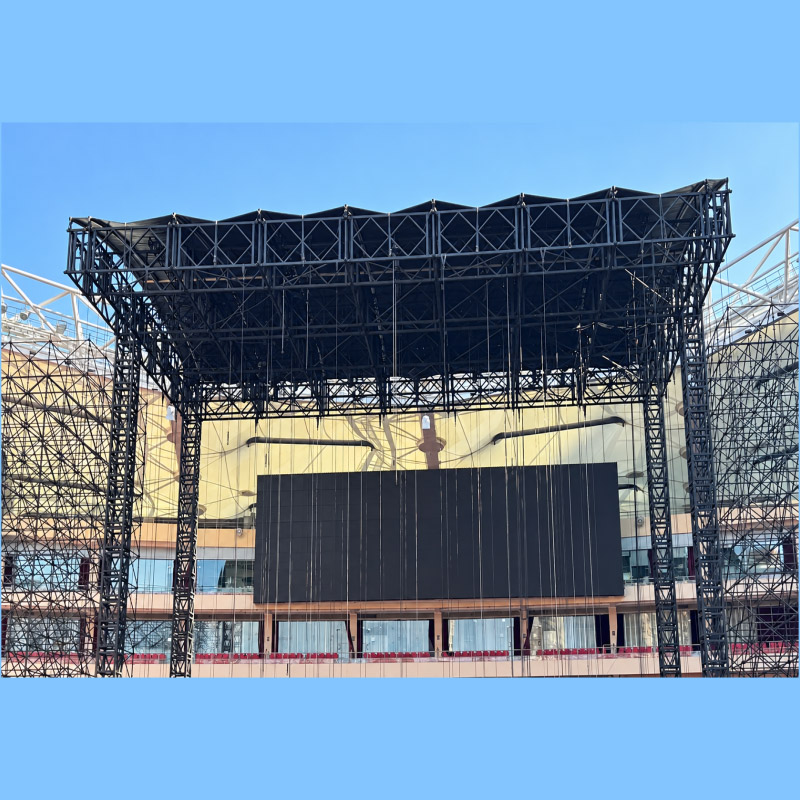

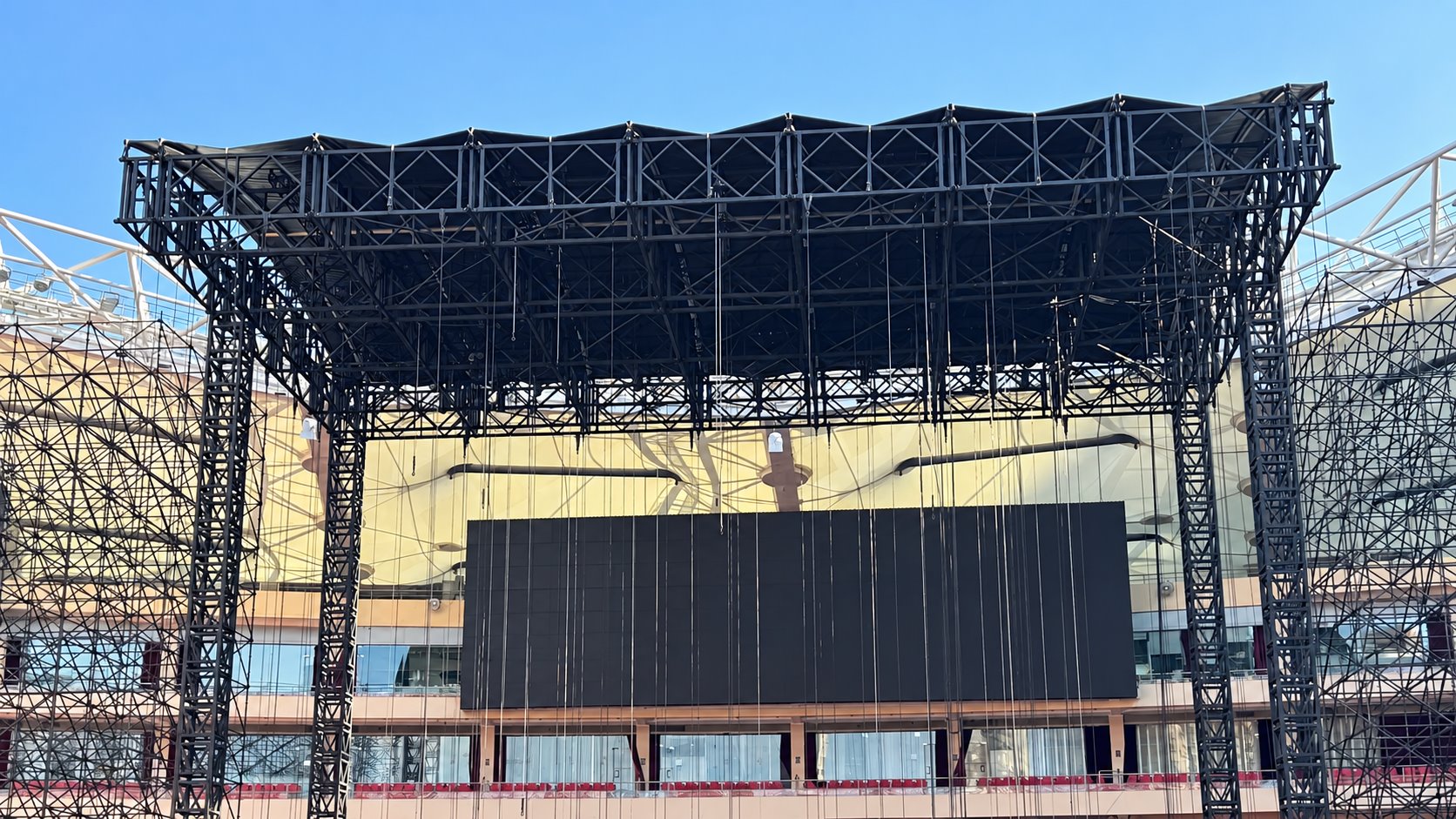

Electric cylinder lifting roof system is a customized heavy-duty stage roof solution for large concerts, music festivals, stadium productions, touring shows, and outdoor event structures. Multiple synchronized electric cylinders raise the assembled roof structure from a practical installation height to its planned working position.
The system allows approved lighting fixtures, LED structures, cables, speaker systems, and other overhead equipment to be installed and checked while the roof remains closer to ground level. After the structural connections and lifting positions have been inspected, the complete roof system can be raised in a controlled and coordinated movement.
ENO Stage can provide painted steel lifting columns combined with aluminum roof beams, or a complete heavy-duty painted steel roof structure. Single-row and double-row truss arrangements, roof dimensions, lifting height, lifting positions, covering system, accessories, packing, and transportation plans can be customized according to the project drawing.
Electric Cylinder Lifting Roof System Features
- Synchronized electric-cylinder lifting: Multiple lifting positions work together to raise the roof structure in a controlled vertical movement.

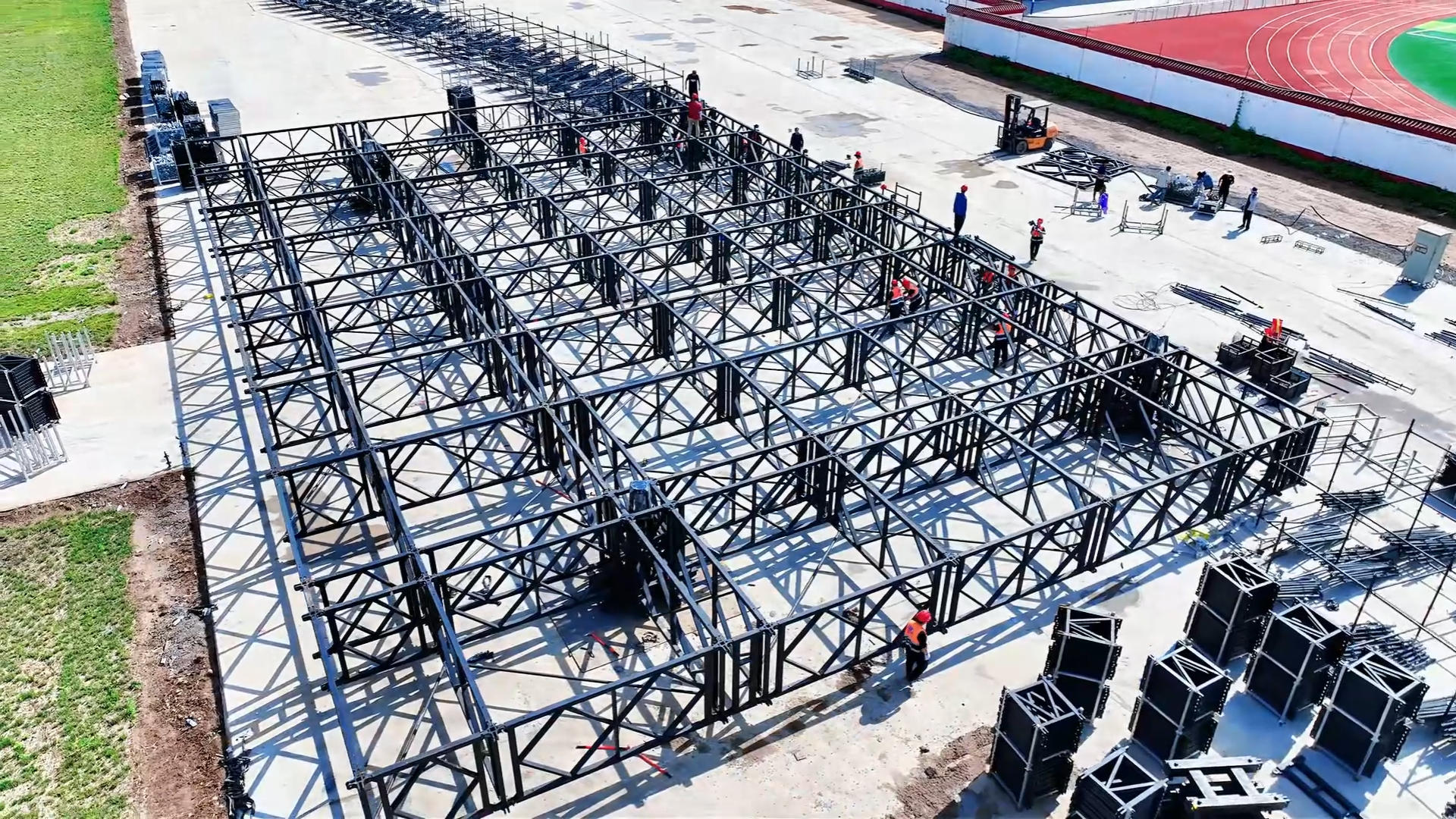

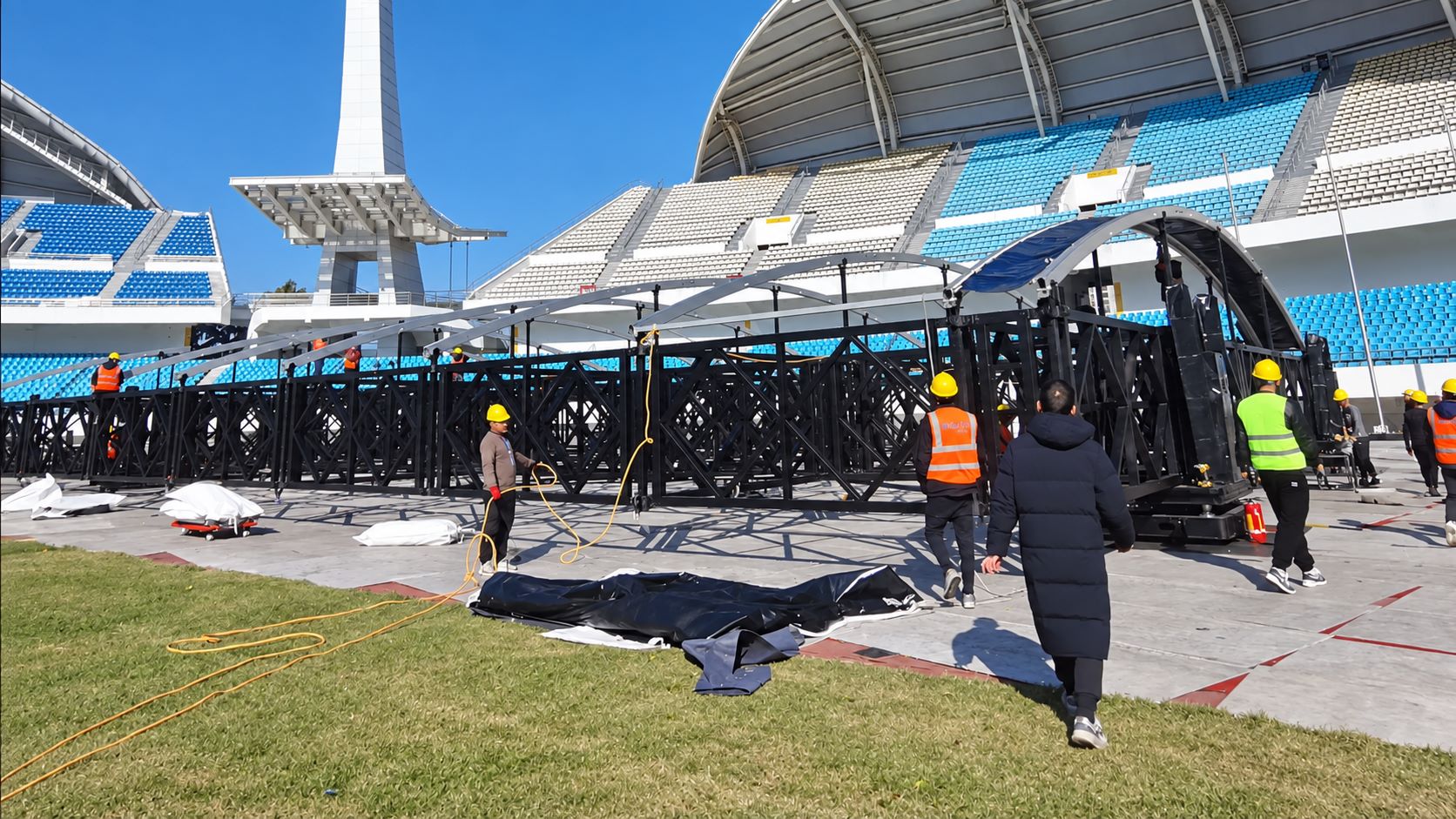

- Ground-level roof assembly: The main roof grid can be assembled, connected, and inspected at a practical working height.
- Lower-level equipment installation: Approved lighting, LED structures, cables, and other overhead equipment can be installed before the roof reaches its final height.
- Heavy-duty structural options: Available with painted steel lifting columns and aluminum roof beams or a complete painted steel roof structure.
- Single-row and double-row configurations: Roof sections can be arranged according to span, equipment load, structural calculation, and transportation requirements.
- Modular and detachable construction: The structure can be dismantled into planned sections for repeated installation, storage, truck transport, and container loading.
- Custom project support: Roof span, lifting height, lifting stroke, support positions, covering, control system, packing, and accessories can be matched to the project.
Specification Reference
The following information is for project discussion only. Final dimensions, allowable load, lifting height, wind-load capacity, ballast, anchoring, electrical configuration, and operating procedures must be confirmed according to the complete project drawing, structural calculation, equipment list, and installation environment.
| Product type | Heavy-duty electric cylinder lifting roof system |
| Lifting method | Multiple synchronized electric cylinders with a matched control system |
| Column options | Painted steel lifting columns configured according to the project design |
| Roof beam options | Aluminum roof beams or heavy-duty painted steel roof structures |
| Truss configuration | Single-row, double-row, and customized modular roof sections |

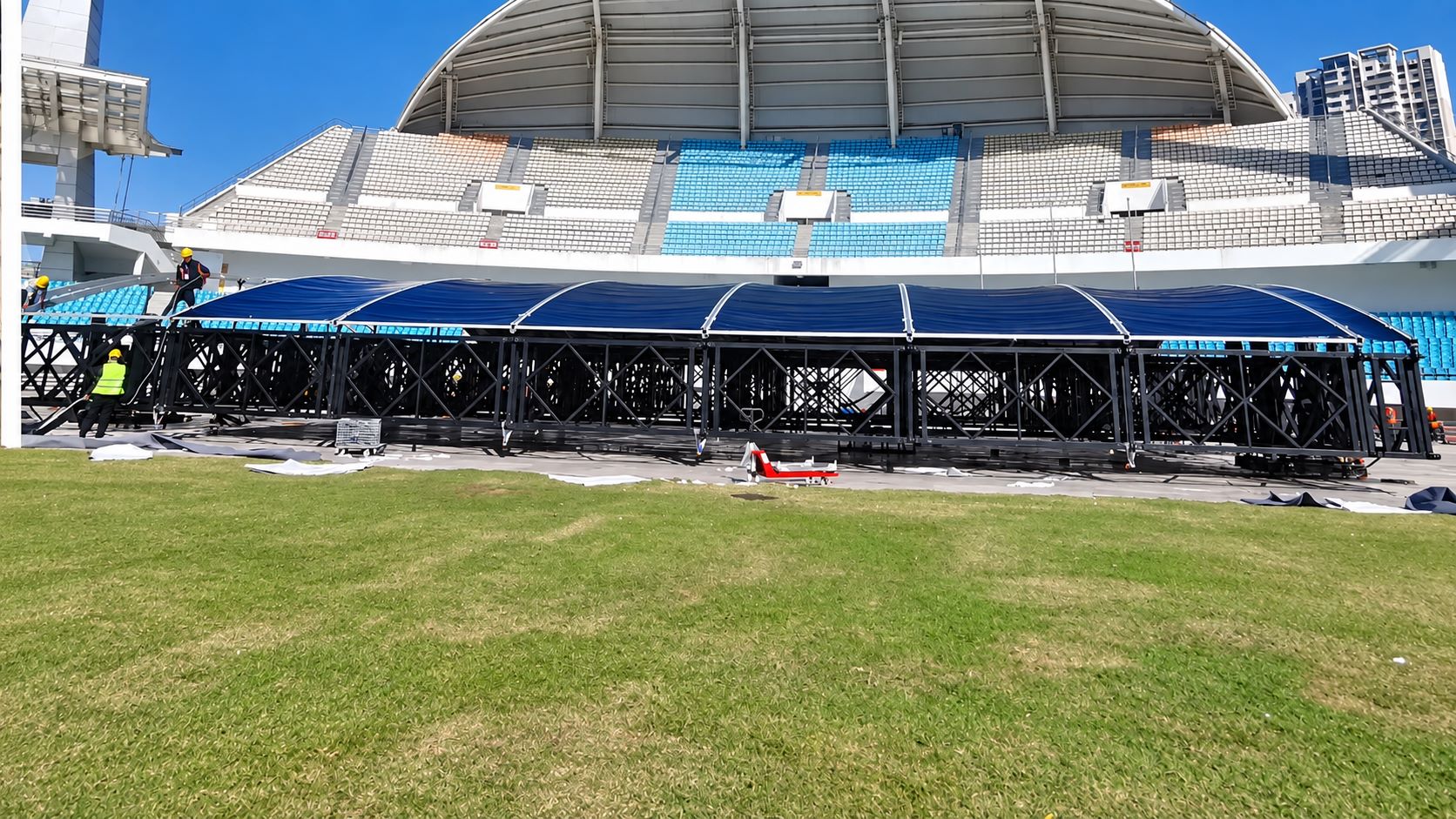

| Roof configuration | Flat, curved, or project-specific roof geometry and covering arrangements |
| Equipment support | Lighting, LED screens, line-array speakers, cables, and approved show equipment within the confirmed design load |
| Surface finish | Black baked-paint finish for steel components, with aluminum or customized finishes where applicable |
| Transportation | Detachable modular sections for truck transport, export packing, and container loading |
| Customization | Roof dimensions, working height, lifting positions, load arrangement, covering, accessories, packing, and control configuration |
Common Applications

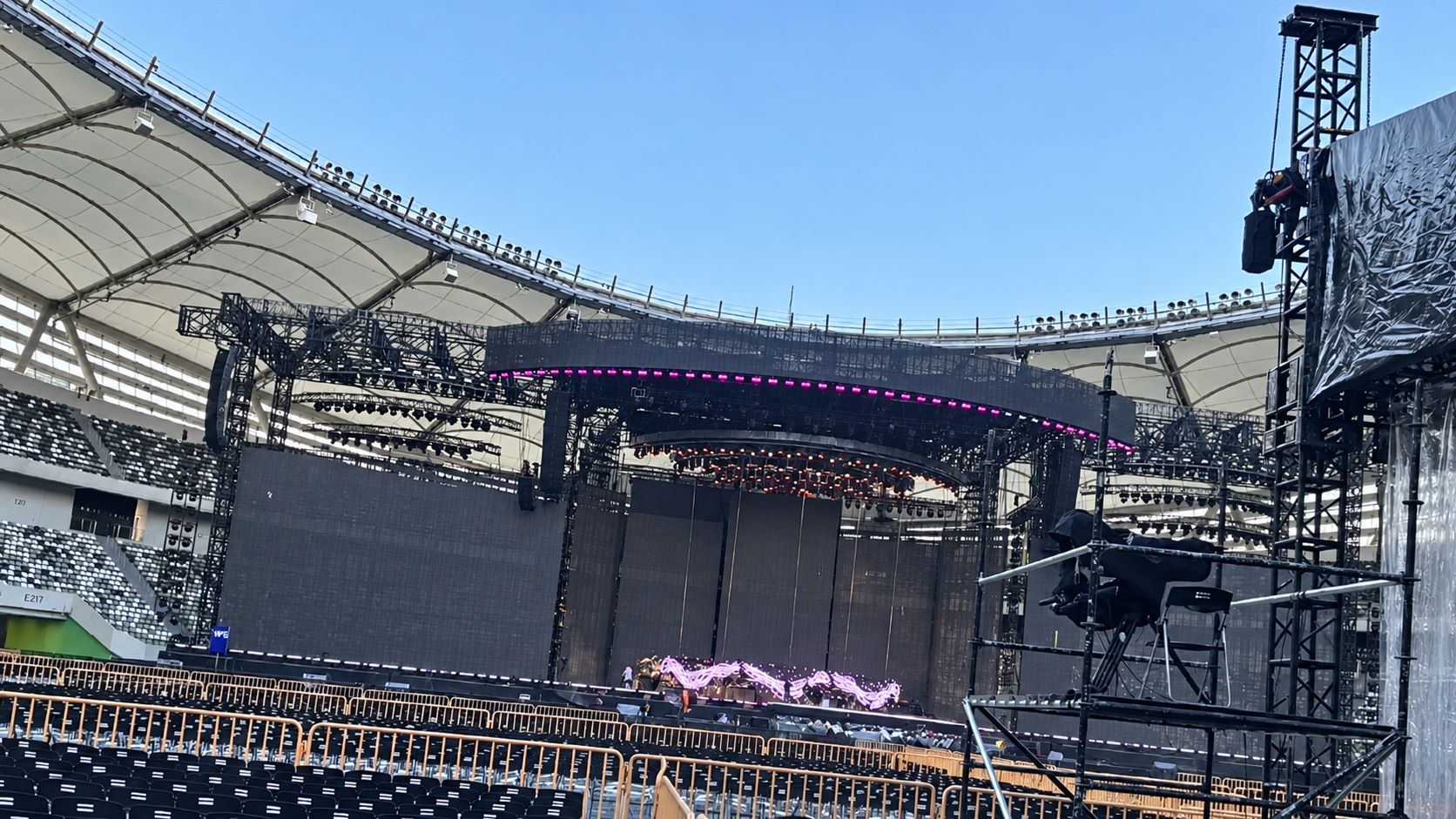

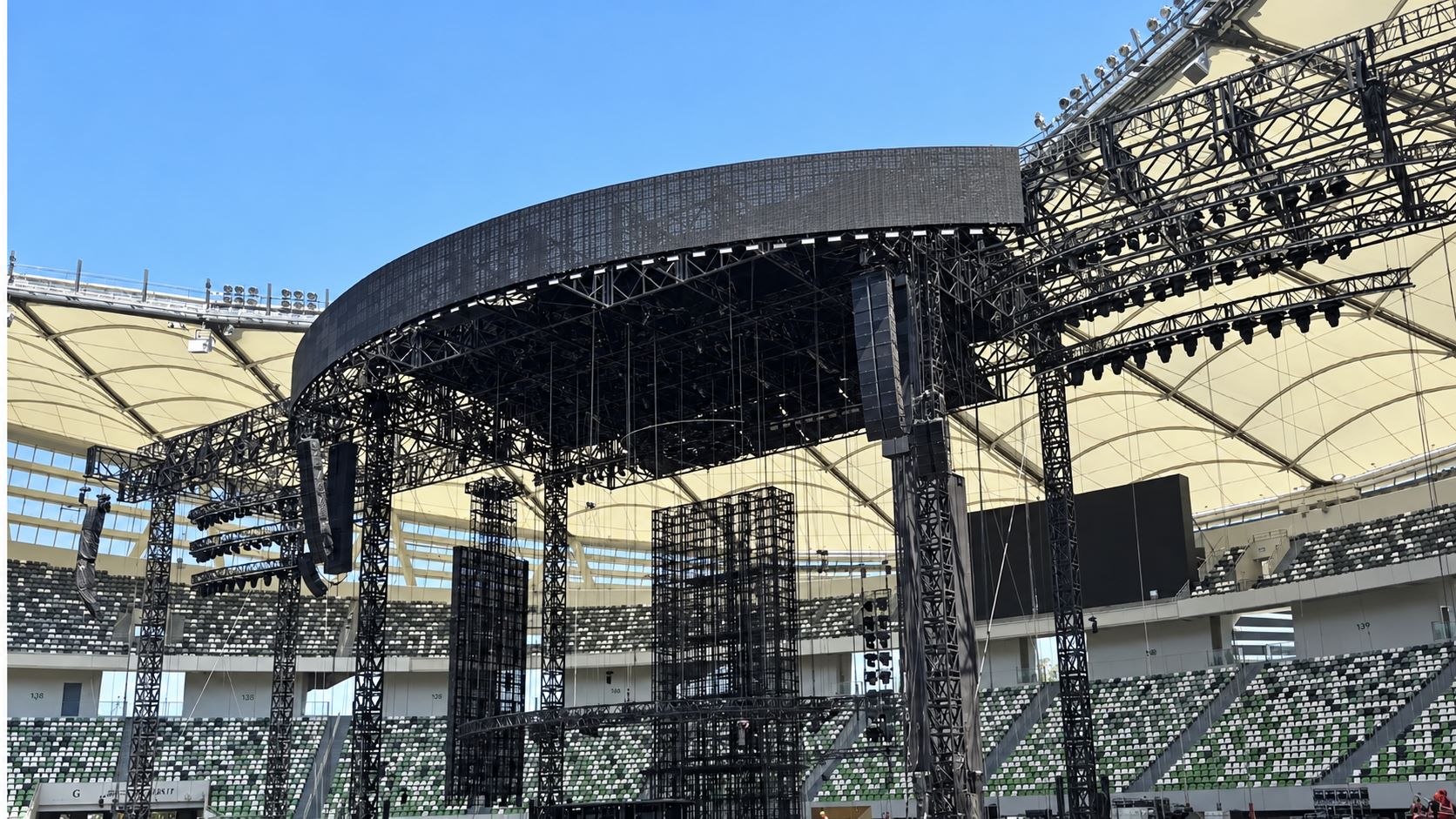

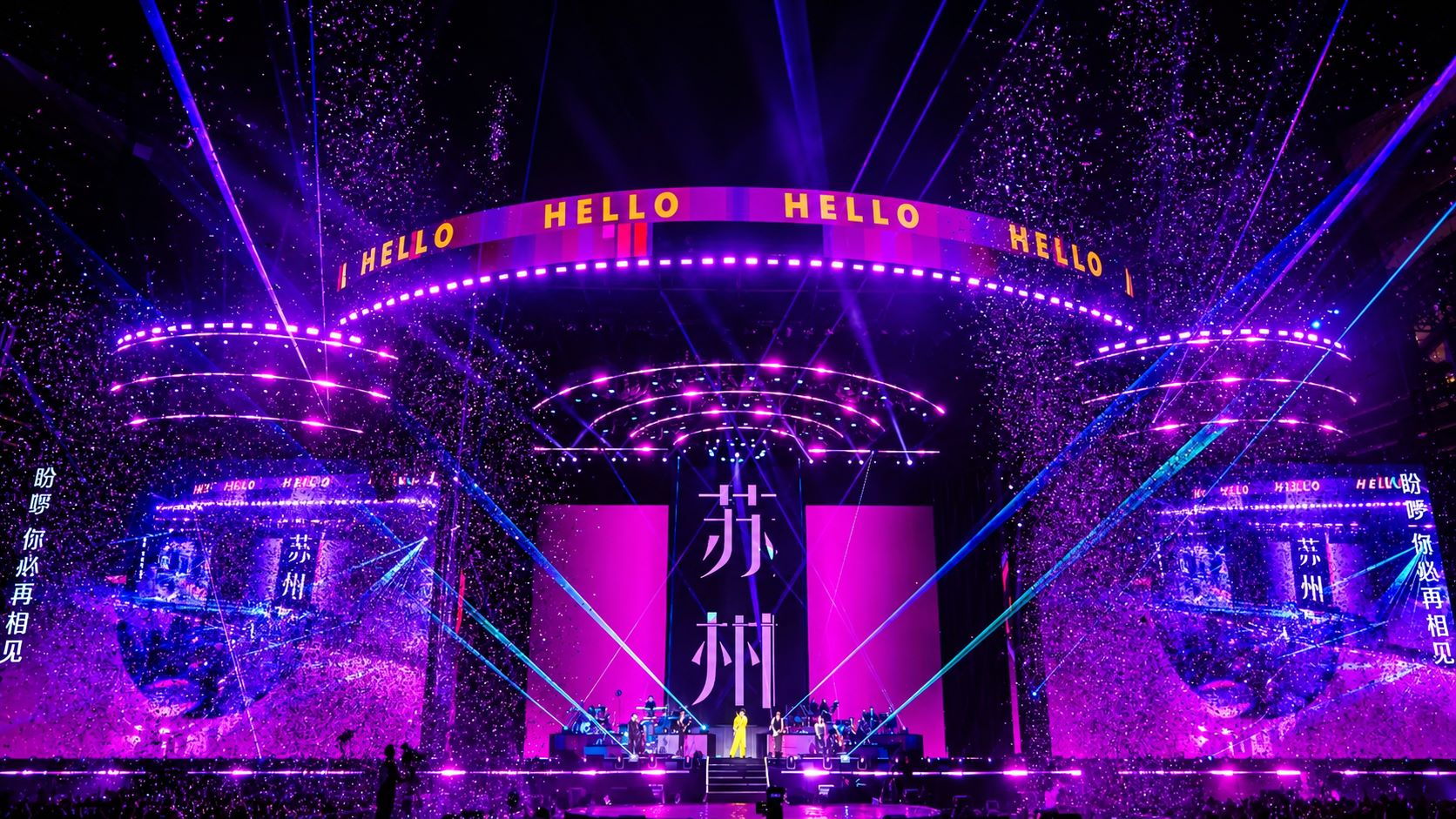

| Stadium concerts | Large concert stages requiring roof grids, lighting positions, LED structures, suspended speakers, and professional show equipment. |
| Outdoor music festivals | Temporary festival roof systems planned according to stage size, equipment load, wind conditions, ground support, and event schedule. |
| Touring productions | Modular roof structures designed for repeated assembly, dismantling, packing, transportation, and use at different event sites. |
| Large outdoor shows | Large ceremonies, commercial shows, televised productions, brand events, and temporary performance structures. |
Product Detail Reference
R
Large-Scale Electric Cylinder Structure TÜV Test
This full-scale electric cylinder structure measures 30m × 22m and was assembled for an 88-ton load-bearing TÜV test. The video shows the actual structure, lifting components, connection positions, factory assembly, and professional testing process, providing a practical reference for large concert roof projects.
Related Products
6-Pillar Box Truss Roof System
Six-pillar aluminum roof structure for concert stages, festival lighting, LED screens, audio systems, and outdoor productions.
520x760mm Heavy-Duty Roof Truss
Large aluminum truss profile for concert roof beams, lighting systems, speaker support, and heavy event structures.
400x400mm Aluminum Box Truss
Square aluminum truss for stage roof beams, lighting grids, LED screen support, and ground-support structures.
Application Cases
Technical Guide and Delivery Videos
Project Planning and Engineering Support
Each electric cylinder lifting roof system is planned according to the complete stage layout rather than a single standard size. Roof dimensions, lifting height, equipment positions, structural configuration, ground conditions, wind requirements, ballast, anchoring, covering, and transportation arrangements should be reviewed together before production.
Project Information
Send the stage length and width, roof span, required lifting height, project location, ground condition, roof-cover requirement, and available drawings.
Engineering Confirmation
The equipment load, hanging positions, lifting layout, wind conditions, ballast, anchoring, connections, and operating requirements must be confirmed for the complete structure.
Packing and Delivery
Modular sections, electric-cylinder components, control equipment, connections, coverings, and accessories can be classified and packed for organized export delivery.
Start Your Electric Cylinder Roof Project
ENO Stage supplies customized electric cylinder lifting roof systems, painted steel lifting columns, aluminum or steel roof structures, synchronized lifting components, control systems, roof coverings, connection parts, accessories, and export packing support. Send us your project dimensions, lifting height, equipment layout, installation location, and drawings for a suitable proposal.
