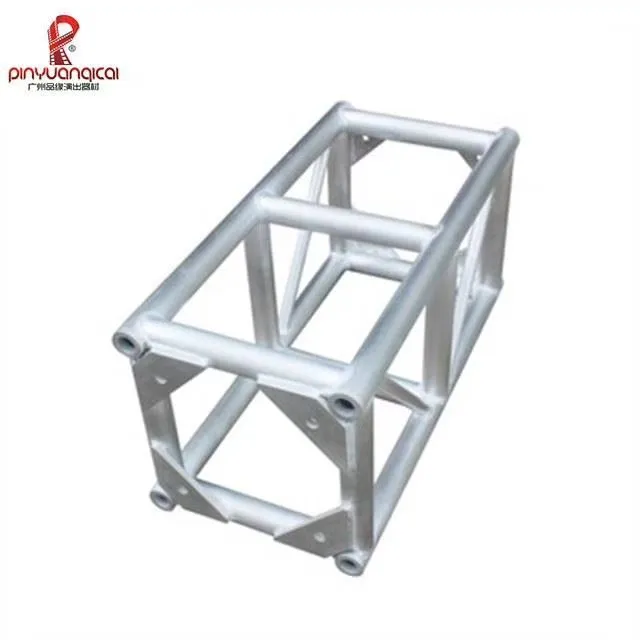

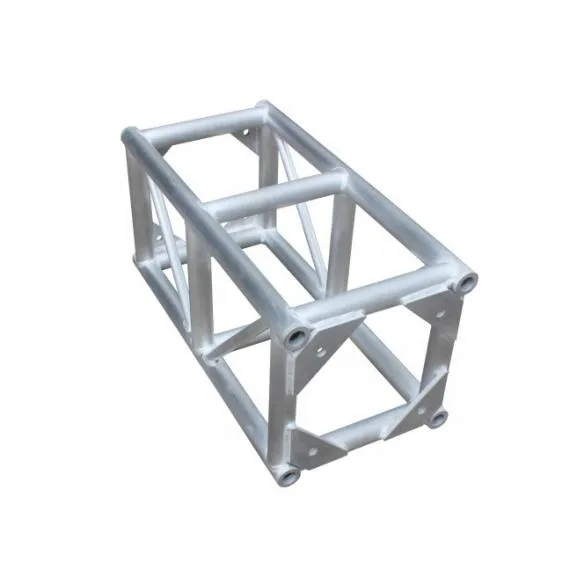

400x400mm heavy-duty square bolt truss is a strong aluminum box truss for stage roofs, lighting beams, concert structures, exhibition frames, LED screen support, event backdrops, and temporary roof truss systems. The 400x400mm truss profile is suitable for projects that need higher structural strength than smaller lighting truss while keeping a modular bolted connection for project assembly.
According to the existing product content, this heavy-duty aluminum bolt truss uses side tubes arranged like ladder reinforcement to strengthen vertical beam performance in box truss systems and roof truss structures. The old content mentions a CPL reference of 450kg, a UDL reference of 55kg at 16m span, and TUV certificate reference. Final load capacity and span must always be confirmed according to the complete truss design, support points, hanging equipment, wind condition, connection method, and site requirements.
400x400mm Square Bolt Truss Features
- Heavy-duty square truss: 400x400mm aluminum box truss for stage roof beams, lighting support, LED screen frames, and event structures.
- Bolted connection: supports secure assembly for repeated installation, rental projects, and production company use.
- Reinforced beam design: old content mentions side tubes arranged like ladder reinforcement for stronger vertical beam performance.
- Roof and box truss use: suitable for straight beams, roof systems, box truss structures, exhibition frames, backdrops, and screen support.
- Accessory matching: can work with corners, base plates, sleeve blocks, clamps, hoists, bolts, rigging parts, and export packing.
Specification Reference
The following specifications are based on the existing product content. They should be treated as project reference only. Final engineering confirmation should be made according to truss length, span, support method, load position, wind condition, and full structure drawing.
| Product type | Heavy-duty aluminum square bolt truss / 400x400mm box truss |
| Reference size | 400x400mm class square truss profile |
| Connection | Bolted connection |
| Structure reference | Side tubes arranged like ladder reinforcement for vertical beam strength, based on old content |
| CPL reference | Old product content mentions 450kg CPL; final loading must be checked by structure design |
| UDL reference | Old product content mentions 55kg UDL at 16m span; final span and load depend on complete system design |
| Certificate reference | Old product content mentions TUV certificate reference |
| Customization | Truss length, finish, connection details, accessory set, packing method, and load design can be customized |
Common Applications
| Stage roof systems | Roof beams, roof grids, outdoor event structures, tower-supported roofs, and temporary stage cover systems. |
| Lighting and audio support | Moving lights, LED lights, speaker support, cables, rigging accessories, and production equipment. |
| LED screen and backdrop frames | Large LED screen frames, stage backdrops, projection structures, banner frames, and event display support. |
| Exhibition and event structures | Trade fair booths, exposition structures, retail event frames, brand displays, and temporary architectural truss builds. |
Product Detail Reference
Related Products
400x400mm Aluminum Box Truss
A related square truss option for stage roof beams, lighting grids, LED screen frames, and event structures.
400x400mm Portable Lighting Truss
A portable box truss option for stage rigging, lighting support, LED screen frames, and temporary event builds.
Application Cases
Factory And Loading Videos
FAQ
What is 400x400mm heavy-duty square bolt truss used for?
400x400mm heavy-duty square bolt truss is used for stage roofs, lighting beams, box truss systems, LED screen frames, exhibition structures, outdoor events, backdrops, and temporary roof truss systems.
What load can this 400x400mm bolt truss support?
The old product content mentions a 450kg CPL reference and 55kg UDL reference at 16m span. Actual loading must be confirmed according to span, support points, hanging equipment, connection method, and complete structure design.
Is this truss suitable for roof truss systems?
Yes, it can be used as beams in box truss systems and roof truss structures when the full structure is properly designed. Outdoor roof structures also need wind, support, and installation checks.
Can the length and accessories be customized?
Yes. ENO Stage can customize truss length, finish, connection details, corners, bases, clamps, hoists, rigging accessories, packing method, and export loading plan according to your project.
