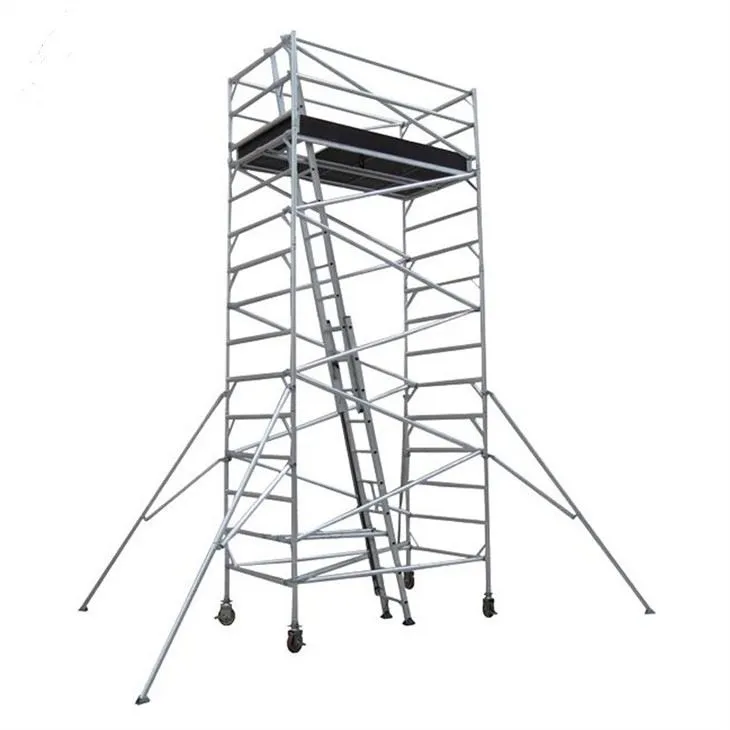

Aluminium mobile scaffold tower is a movable work access system for construction, renovation, facade work, commercial maintenance, warehouse rack service, lighting repair, event production, truss hanging, and banner installation. It is designed for projects that need a stable temporary platform with faster assembly, easier movement, and more compact storage than many traditional fixed scaffold structures.

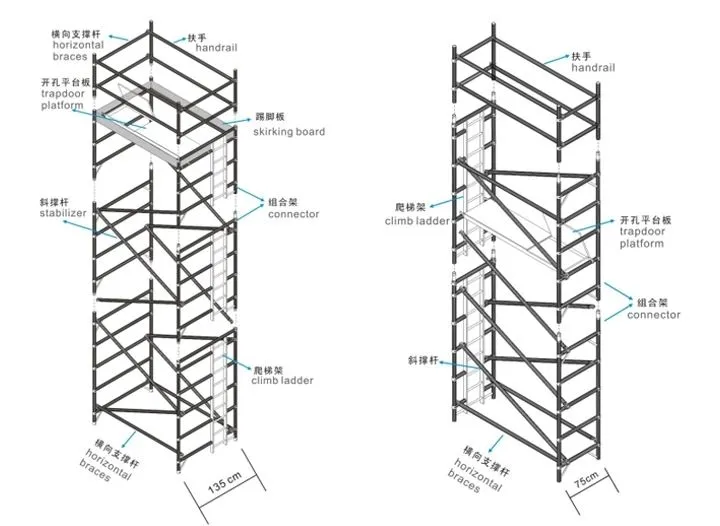

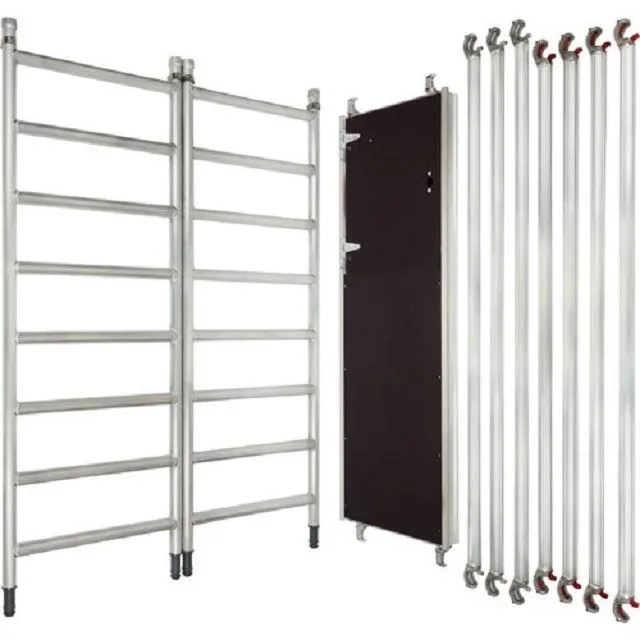

This scaffold tower uses modular aluminum frames, platform decks, guardrails, knee braces, outriggers or stabilizers, ladders, and lockable castors. The existing specification sheet mentions 6063-T5 aluminum alloy, 4m to 14m working height reference, 1.8m x 0.75m platform size reference, 225kg platform load reference, EN 1004 Class 3, and CE marked configuration. Final tower height, wheel type, platform load, and stabilizer setup should be confirmed according to the project site and local safety requirements.
Aluminium Mobile Scaffold Tower Features
- Movable tower structure: lockable swivel castors help the scaffold tower move between work areas after the platform is clear and safe.
- Modular aluminum frames: lightweight frame sections support faster assembly, dismantling, transport, and warehouse storage.
- Work platform safety set: guardrails, braces, stabilizers, ladders, and toe-board options can be matched by tower height.
- Construction and event use: suitable for building work, maintenance, lighting installation, truss setup, banners, and temporary access tasks.
- Custom project matching: tower height, platform size, surface color, wheel type, packing, and accessory list can be arranged by order.
Specification Reference
The following specification is organized from the existing product content. Final scaffold tower configuration should be confirmed by model, height, platform layout, ground condition, work load, and local safety regulations.
| Product type | Aluminium mobile scaffold tower / movable access tower |
| Material reference | High-grade aluminum alloy 6063-T5 reference |
| Working height | 4m to 14m reference, customizable by tower model and project requirement |
| Platform size | 1.8m x 0.75m standard reference, custom platform size available |
| Load reference | 225kg per platform reference, EN 1004 Class 3 reference |
| Wheels | 4 x 6 inch swivel castors with brakes reference |
| Certification reference | EN 1004 and CE marked reference in old product content |
| Color / finish | Silver, black, or customized color reference |
Where This Scaffold Tower Is Used
| Construction and renovation | Bricklaying, plastering, facade repair, ceiling work, painting, and general building access. |
| Commercial maintenance | Window cleaning, HVAC installation, lighting repair, warehouse racking, and equipment service. |
| Event production | Stage setup, truss hanging, banner installation, LED screen service, and temporary access for event crews. |
Assembly And Safety Notes
- Choose the tower height, platform size, stabilizer set, and ladder access according to actual working height.
- Use full guardrails, braces, stabilizers, toe boards, and locked castors before work begins.
- Move the tower only when the work platform is clear, the route is level, and site conditions allow safe movement.
- For outdoor use, check wind condition, ground level, load distribution, local rules, and inspection requirements.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
What is an aluminium mobile scaffold tower used for?
An aluminium mobile scaffold tower is used for construction access, renovation, facade work, painting, maintenance, warehouse service, lighting repair, event production, truss hanging, and banner installation.
How high can the scaffold tower be built?
The old specification sheet lists 4m to 14m working height reference. The final height should be selected according to tower width, stabilizer configuration, platform layout, ground condition, and local safety rules.
What load can the platform support?
The existing product content mentions 225kg per platform and EN 1004 Class 3 reference. Final capacity should be confirmed according to exact model, tower height, platform size, and job-site use.
Can the tower be moved without disassembly?
Yes, the tower is equipped with lockable swivel castors for movement on suitable flat surfaces. Workers, tools, and loose materials should be removed, and brakes should be locked again before work starts.
Can ENO Stage customize the scaffold tower?
Yes. ENO Stage can match working height, platform size, aluminum material, wheel type, guardrails, stabilizers, color, packing, and shipping arrangement according to your project.
Need An Aluminium Mobile Scaffold Tower?
ENO Stage supplies aluminium mobile scaffold towers, aluminium mobile scaffolding, rolling scaffolding, stage scaffolding, truss systems, and temporary event access structures. Send us your working height, platform size, load requirement, site application, and delivery plan so we can recommend a suitable scaffold tower configuration.
