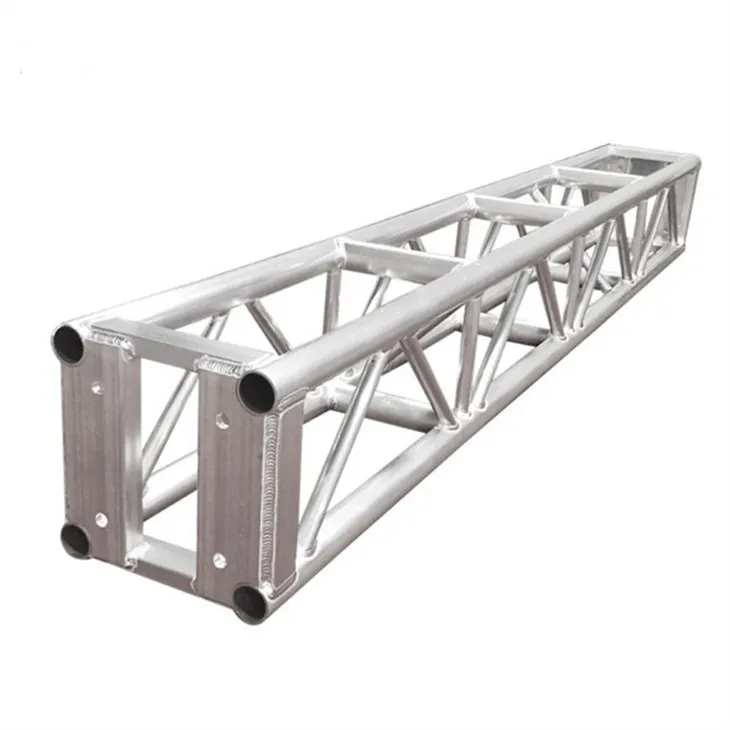

400x400mm heavy-duty Thomas bolt truss is a professional aluminum box truss for stage rigging, concert lighting grids, LED screen frames, exhibition structures, outdoor events, stage backdrops, and large temporary support systems. The 400x400mm truss profile is suitable when a project needs stronger structure than smaller lighting truss while still keeping modular assembly and event-friendly handling.
According to the existing product reference, this heavy-duty Thomas bolt truss uses premium aluminum alloy with 50x3mm main tubes, 50x2mm vice tubes, and 25x2mm diagonal braces. The old content mentions a 440kg load reference and a maximum connected span reference of 17m. Final loading and span must always be confirmed according to truss length, support points, hanging equipment, wind condition, installation method, and the complete structure drawing.
400x400mm Thomas Bolt Truss Features
- Heavy-duty box truss profile: 400x400mm aluminum truss for larger lighting, LED screen, backdrop, and event support structures.
- Thomas bolt connection: designed for secure bolted assembly, repeated installation, and professional stage rigging projects.
- Stronger tube reference: old product content lists 50x3mm main tubes, 50x2mm vice tubes, and 25x2mm diagonal braces.
- Large-span project use: suitable for stage beams, lighting grids, exhibition frames, trade fair booths, and temporary event structures.
- Accessory matching: can work with truss corners, bases, clamps, hoists, sleeve blocks, bolts, rigging parts, and export packing.
Specification Reference
The following specifications are based on the existing product content. They should be used as a reference only. Final engineering confirmation should be made according to project drawing, span, support method, load position, wind condition, and site requirements.
| Product type | Heavy-duty aluminum Thomas bolt truss / 400x400mm box truss |
| Reference size | 400x400mm class square truss profile |
| Connection | Thomas bolt connection system |
| Main tube reference | 50x3mm, based on old product content |
| Vice tube reference | 50x2mm, based on old product content |
| Diagonal brace reference | 25x2mm, based on old product content |
| Standard length reference | 1m, 2m, 3m, 4m per piece, or customized project length |
| Load reference | Old product content mentions 440kg; final loading must be checked by structure design |
| Span reference | Old product content mentions up to 17m connected span; final span depends on the full truss system |
Common Applications
| Stage rigging | Lighting beams, truss grids, speaker support, backdrop frames, and professional event rigging structures. |
| Concert and festival structures | Outdoor event layouts, lighting support, LED screen frames, side structures, and temporary stage systems. |
| Exhibition and display builds | Trade fair booths, retail displays, product launch frames, hanging signs, and large brand structures. |
| Rental and production use | A durable bolted truss option for production companies, rental businesses, mobile entertainers, and event contractors. |
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
What is 400x400mm heavy-duty Thomas bolt truss used for?
400x400mm heavy-duty Thomas bolt truss is used for stage rigging, concert lighting grids, LED screen support, exhibition frames, stage backdrops, event roof structures, and larger temporary support systems.
What is the difference between Thomas bolt truss and spigot truss?
Thomas bolt truss uses a bolted connection system, while spigot truss uses spigots, pins, and R-clips. The best option depends on project structure, installation habit, loading needs, and matching accessories.
Can this truss support LED screens and lighting equipment?
Yes, it can be designed for LED screens, lighting fixtures, audio equipment, and backdrops. Final capacity must be confirmed according to span, hanging points, equipment weight, support method, and full structure design.
What information should I provide before ordering?
Please provide your truss span, height, hanging load, support points, indoor or outdoor use, connection preference, quantity, finish, packing needs, and project drawing if available.
