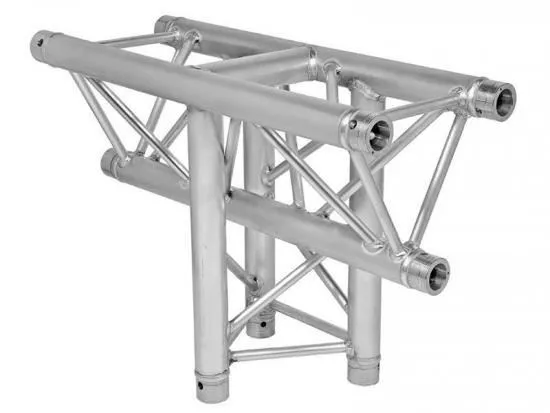

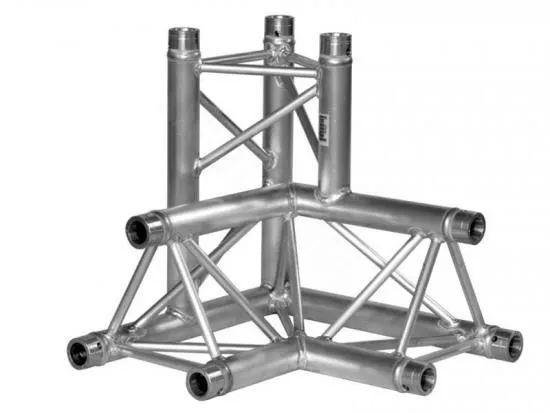

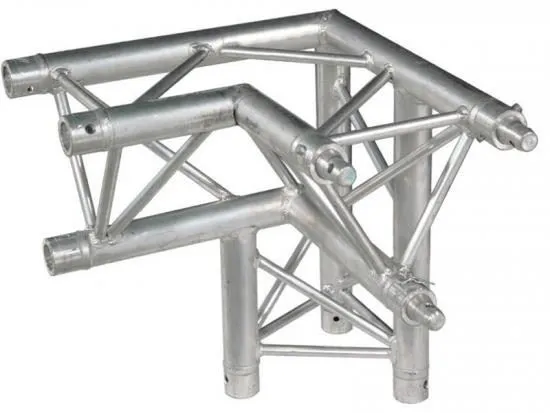

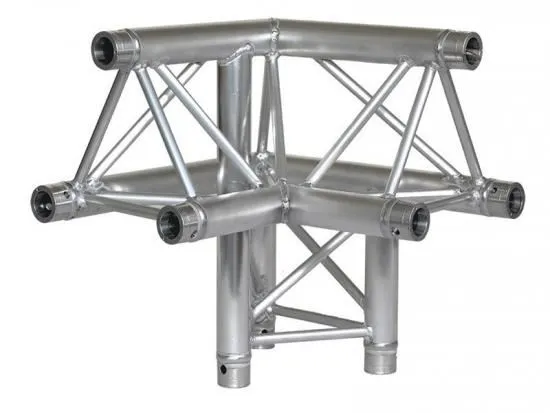

3 Way Triangular Truss Corner is a custom aluminum truss connector used when three triangular truss sections need to meet at one structural node. It is commonly used in stage roof frames, lighting grids, exhibition booth structures, entrance frames, display structures, and temporary event truss systems where a triangular truss layout needs a clean multi-direction connection.
ENO Stage can customize the 3 way triangular truss corner according to your triangular truss size, tube layout, connection method, direction requirement, hole position, surface finish, and matching accessories. For custom truss connector projects, the full structure drawing should be confirmed before production so the corner direction and connection hardware match the complete truss layout.
Quick project reference:
- Used when a triangular truss structure needs a 3 way corner or branching connection at one node.
- Suitable for stage roof frames, lighting grids, exhibition booths, display structures, entrance frames, and event truss layouts.
- Can be matched with triangular aluminum truss, spigot truss, bolt truss, or compatible custom triangular truss systems.
- Truss size, tube diameter, wall thickness, connection direction, hole position, finish, and accessory set can be customized according to drawings.
- Works with pins, clips, bolts, clamps, bases, sleeve blocks, hanging points, and other matching truss accessories.
Send us your triangular truss size, connection type, required direction, photos, quantity, finish requirement, and project drawing. We can help check whether this 3 way triangular truss corner can match your existing truss system or new event structure design.
Custom 3 Way Corner for Triangular Truss Systems
This type of 3 way truss corner helps connect triangular truss sections in multiple directions while keeping the structure aligned and easier to assemble. It is useful for custom lighting positions, booth frames, entrance structures, roof outlines, and truss systems that need more than a simple straight or 2 way connection.
Product Features
- 3 way triangular connection: designed for triangular truss structures that require three connection directions at one corner point.
- Custom matching: made according to the customer’s truss size, tube layout, connection type, direction, hole position, and project drawing.
- Event-ready aluminum structure: suitable for stage roofs, lighting frames, exhibitions, display booths, entrance frames, and temporary event structures.
- System compatibility: can be produced for spigot truss, bolt truss, triangular truss, or compatible custom truss systems.
- Cleaner assembly: helps create a more accurate multi-direction corner than improvised on-site connection methods.
- Finish options: natural aluminum finish, black finish, or project-specific surface treatment can be discussed before production.
Specification Reference
The following details are for customization reference. Final dimensions should be confirmed according to your existing triangular truss size, connection type, load requirement, structure direction, and installation environment.
| Product type | 3 way triangular truss corner / triangular truss connector |
| Common use | Stage roof frame, lighting grid, exhibition frame, event entrance, display booth, custom triangular truss structure |
| Material | Aluminum alloy, commonly 6082-T6 or project-matched material |
| Truss type | Triangular truss, spigot truss, bolt truss, or custom triangular truss system |
| Connection direction | 3 way corner connection, customized according to project layout |
| Connection type | Spigot, bolt, or customized connection according to the matching truss system |
| Surface finish | Natural silver aluminum, black finish, or customized finish |
| Customization | Truss size, tube diameter, wall thickness, connection type, direction, hole position, finish, and accessory set |
Applications
Stage Roof Triangular Nodes
Used where triangular roof truss runs need a controlled three-direction corner or branch connection.
Lighting Grid Branch Frames
Suitable for compact lighting grids that need triangular truss branches, hanging points, or custom corner layouts.
Exhibition Booth Corner Layouts
Can support booth frames, LED display truss, hanging signs, entrance structures, and custom display frames.
Entrance And Display Structures
Practical for brand activation frames, temporary event gateways, retail display structures, and rental truss systems.
Product Detail Reference
Related Products
Application Cases

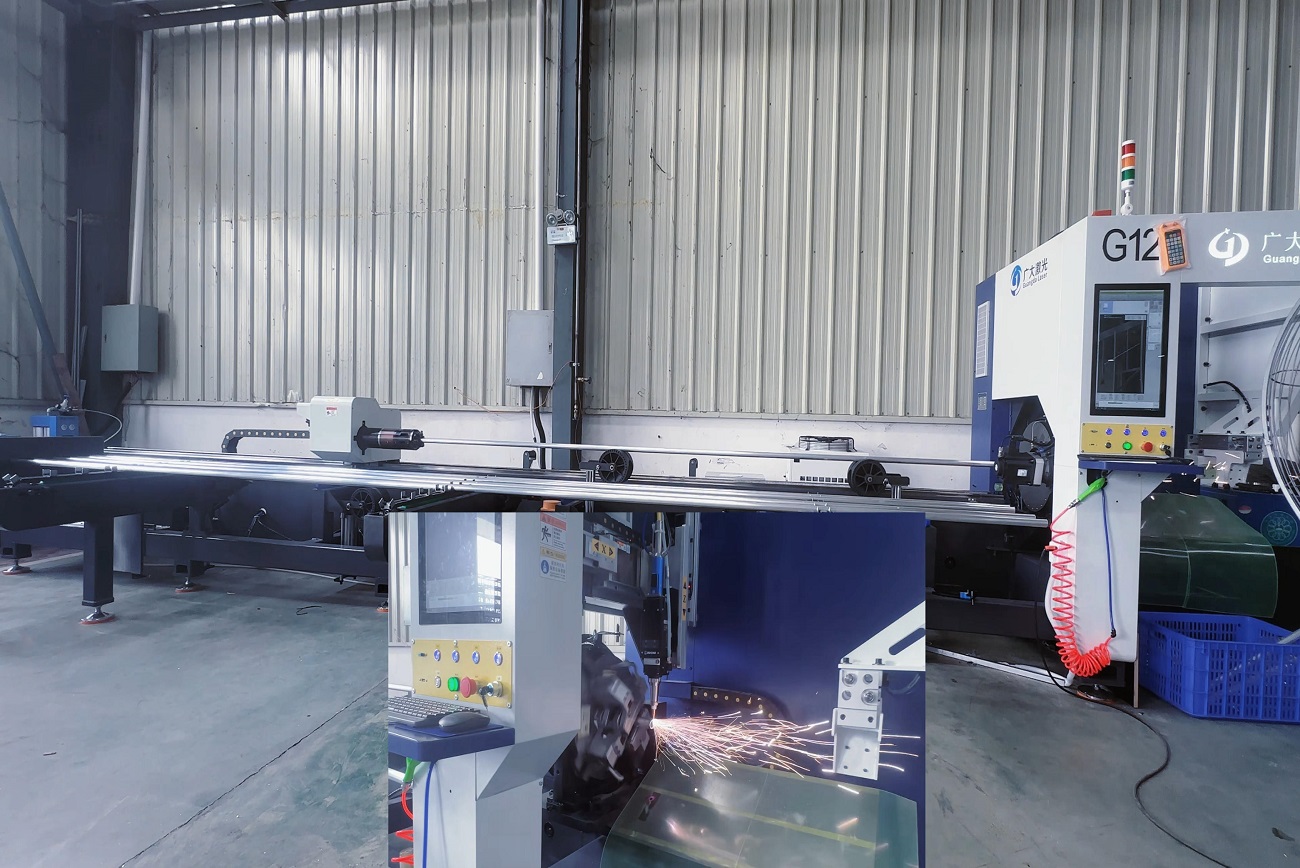

Factory And Loading Videos
FAQ
Can this 3 way triangular truss corner match my existing truss?
Yes. Please send your triangular truss size, tube diameter, wall thickness, connection type, and photos of the existing truss. We can check whether the corner can be customized to match your system.
Can you customize the connection direction?
Yes. The 3 way direction, tube orientation, hole position, and connection hardware can be discussed according to your structure drawing and installation requirement.
Can you make black triangular truss corners?
Yes. Natural aluminum and black finish are common options. Other finish requirements can be discussed according to the project.
What information should I send for quotation?
Please send the truss size, connection type, required direction, quantity, finish, use environment, and any available layout drawing or reference photo.
Is this product suitable for load-bearing structures?
It can be used in event truss structures, but final load capacity depends on the full structure design, truss size, connection method, span, installation conditions, and safety requirements. Engineering confirmation is recommended for load-critical projects.
Need Custom 3 Way Triangular Truss Corners?
Tell us your triangular truss size, connection type, required direction, finish, quantity, and project drawing. ENO Stage can help you customize a 3 way triangular truss corner solution for stage roofs, lighting grids, exhibition frames, entrances, and event structures.
