描述

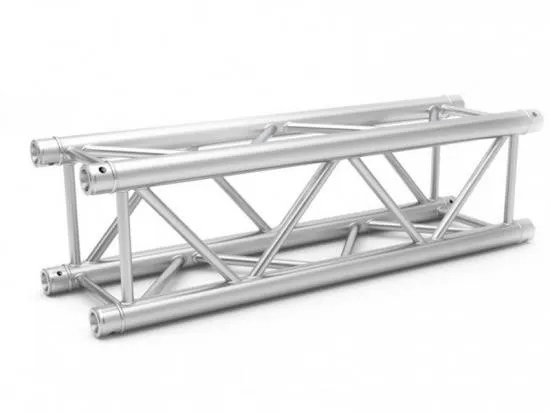

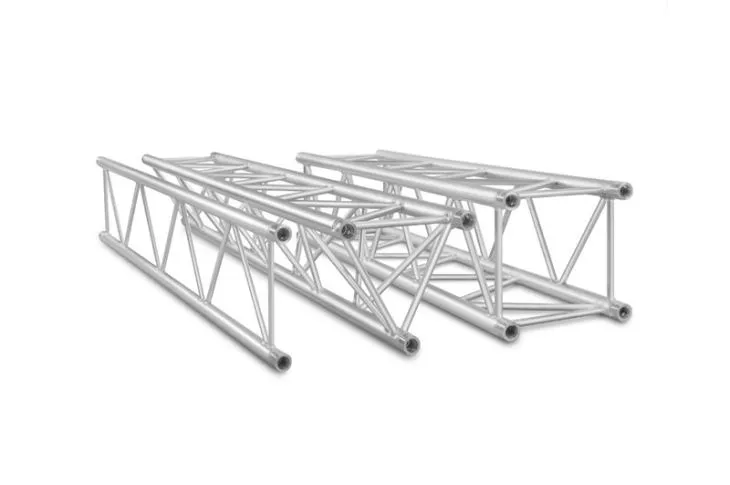

290mm aluminum stage lighting truss is a lightweight modular truss system for lighting support, sound equipment, digital signs, banners, LED screen frames, exhibition booths, DJ shows, concerts, studios, theaters, weddings, hotels, and temporary event structures. The 290mm truss size is often selected when a project needs a practical balance between easy handling, modular assembly, and reliable event support.
This stage lighting truss uses a spigot connection for DIY-style installation and repeated event setup. According to the existing product reference, the truss can be used for roof systems, stage lighting hangers, round truss layouts, line array speaker support, exhibition structures, and entertainment projects. Final span and loading should always be confirmed according to the full truss layout, support points, hanging equipment, and site condition.
Product Features
- 290mm modular truss profile: a common lighting truss size for small and medium event structures.
- Spigot connection: supports fast assembly, repeated installation, and compact project handling.
- Event lighting support: suitable for moving lights, LED lights, speaker support, banners, digital signs, and LED screen frames.

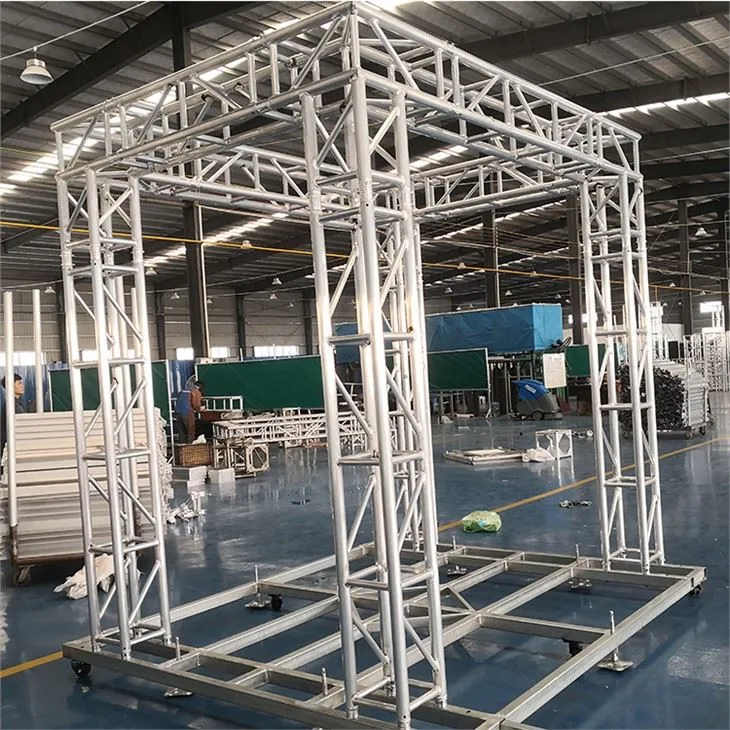

- Flexible project use: can be used in roof systems, straight runs, booth frames, DJ shows, stage lighting grids, and round truss designs.
- Accessory matching: can work with truss corners, clamps, base plates, hoists, pins, R-clips, hooks, shackles, and packing accessories.
Specification Reference
The following specifications are based on the existing product content and ENO Stage catalog reference. Final load capacity should be checked according to span, connection method, support points, wind condition, and actual hanging equipment.
| Product type | Aluminum stage lighting truss / modular spigot truss |
| Reference size | 290x290mm class lighting truss |
| Material | Aluminum 6082-T6 / 6061-T6 reference |
| Main tube | 50x3mm reference |
| Vice tube / brace | 20x2mm reference |
| Connection | Spigot connection with pins and R-clips |
| Standard length | 1m, 2m, 3m, 4m, or customized project length |
| Load reference | Old product content mentions 450kg loading at 13m span; final loading must be confirmed by structure drawing |
Common Applications
| Stage lighting | Lighting hangers, moving lights, LED lights, DJ shows, theaters, studios, and live performance setups. |
| Event structures | Temporary truss frames for concerts, exhibitions, weddings, hotels, entertainment events, and outdoor activities. |
| Display support | Digital signs, banners, LED screens, exhibit booth frames, and brand display structures. |
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
What is 290mm aluminum stage lighting truss used for?
290mm aluminum stage lighting truss is used for lighting rigs, exhibition frames, DJ shows, LED screen support, banners, speaker support, concerts, studios, theaters, and temporary event structures.
Is this truss easy to install?
Yes. This product uses a modular spigot connection, which supports fast assembly and repeated setup. The final installation method should still follow the project drawing and safety requirements.
What load can the 290mm lighting truss support?
The old product content mentions a 450kg loading reference at 13m span. Actual loading must be confirmed according to truss length, support points, hanging position, equipment load, and full structure design.
Can the truss length and accessories be customized?
Yes. ENO Stage can provide different truss lengths, surface finish, corner matching, clamps, base plates, pins, R-clips, hoists, and packing arrangements according to your event project.
