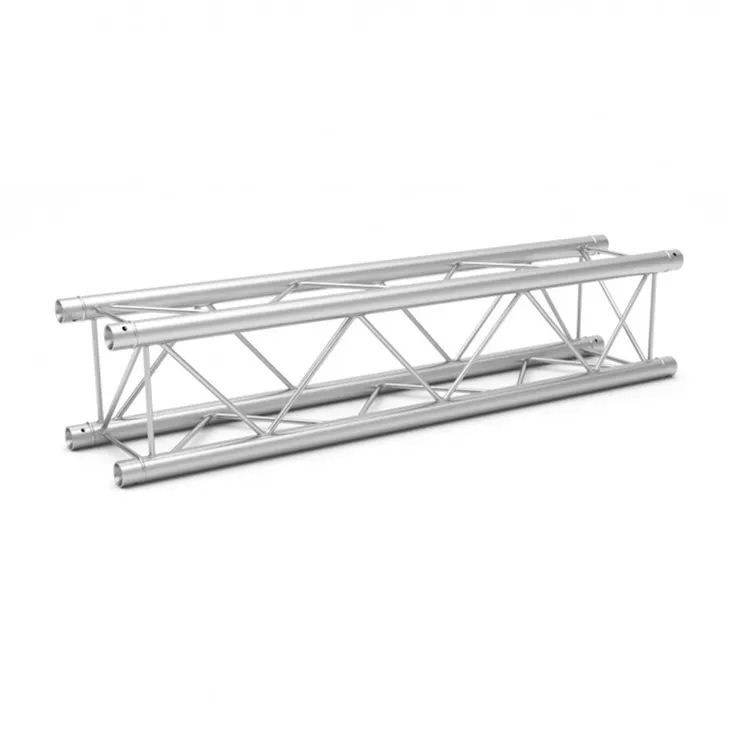

200x200mm Lightweight Spigot Box Truss for Stage Lighting
Compact 200 × 200 mm aluminum spigot box truss for small lighting rigs, exhibition frames, DJ setups and event displays. Match section lengths, finish and accessories to your project layout.
- Profile
- 200 × 200 mm
- Connection
- Spigot
- Material
- Aluminum
Share your span, height, hanging load and layout drawing for a suitable configuration.
Product details
The 200 × 200 mm square profile is a compact starting point for lighting frames, DJ setups, exhibition booths and display structures. Confirm the support arrangement, equipment load and connection set with the complete project drawing.
- 200 × 200 mm square box-truss profile.
- Spigot connection hardware includes couplers, pins and R-clips.
- Match section lengths, corners and bases to the complete layout.
Specifications
| Product type | Aluminum spigot box truss |
|---|---|
| Reference profile | 200 × 200 mm |
| Connection | Spigot |
| Applications | Small lighting rigs, exhibition frames, DJ setups and event displays |
| Configuration | Section length, finish and accessories matched to the project |
| Load design | Confirmed for span, supports, hanging arrangement and complete structure |
Load design must be confirmed for the span, support points, hanging arrangement and complete structure. Please provide the planned layout when requesting a configuration.
Connection & support details
Connection and support details from this product’s existing gallery. Confirm profile dimensions, connector geometry and the complete support arrangement when selecting parts.

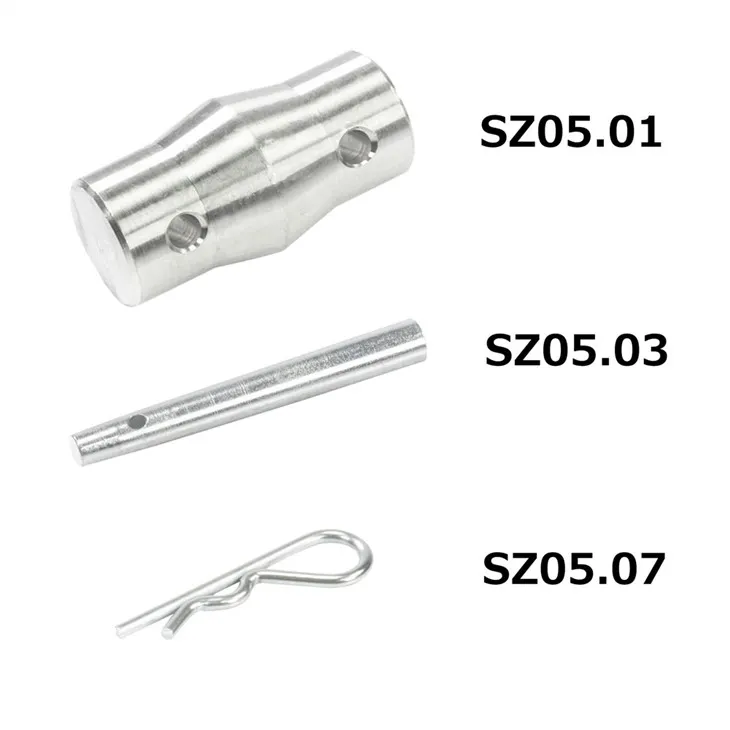

Spigot connection hardware
Coupler, pin and R-clip references. Confirm the correct connection set for the selected section.

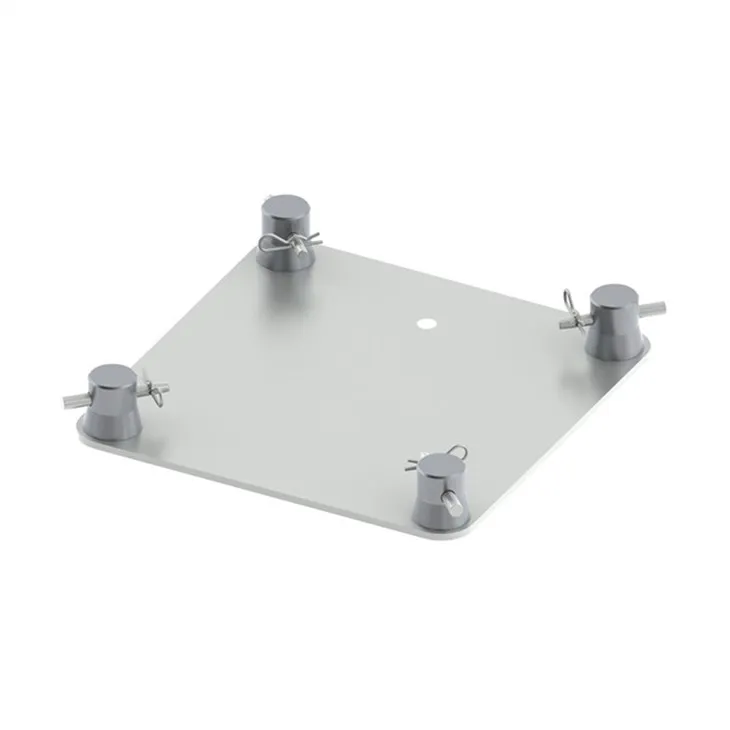

Square base plate
Base-plate reference shown with this product. Confirm the hole pattern and support arrangement for the project.
Two-way corner
Corner reference shown with this product. Match the profile, connection and layout before selecting parts.
Applications
Exhibition Booth Truss Frame
This existing ENO exhibition project illustrates a general truss-frame application with lighting and display areas. The profile, supports and connections are selected separately for each layout.
Planning a truss structure?
Tell us your dimensions, equipment and installation requirements.
