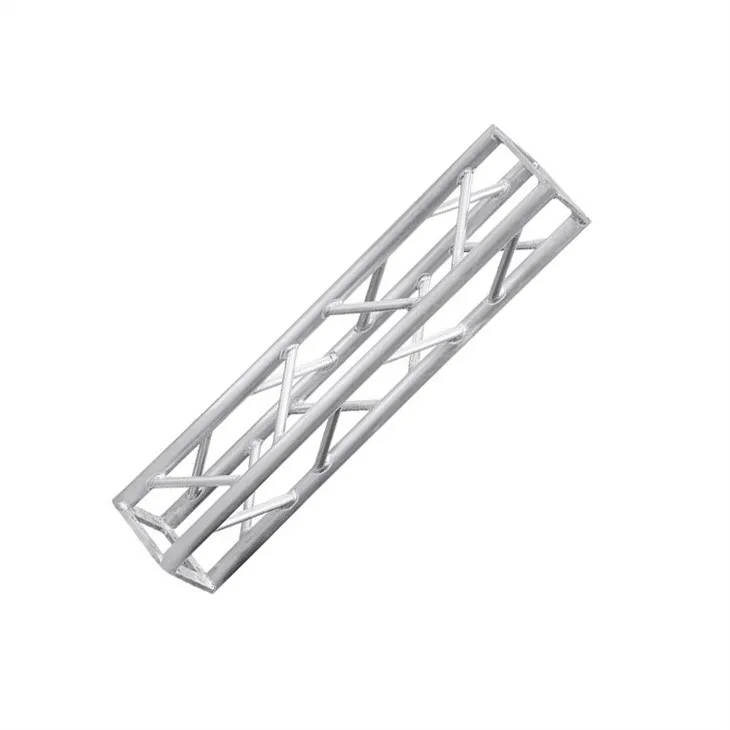

200x200mm lightweight bolt truss is a compact aluminum box truss system for stage lighting, DJ setups, trade shows, mobile shows, exhibition booths, projector screen frames, signage, tent canopy structures, and event decoration layouts. It is a practical choice when the project needs a light and easy-to-pack truss structure rather than a heavy roof truss system.
According to the existing product content, this lightweight aluminum bolt truss uses an 8 inch by 8 inch frame and 1.5 inch outer tubes for mounting lights, TV monitors, signs, and display accessories. The old content mentions that spans up to 2 meters can support up to 500 lbs center loaded, and even more when evenly loaded. Final load must always be confirmed according to span, support points, equipment position, connection method, and full structure design. It is not recommended for speakers or human harnesses.
200x200mm Bolt Truss Features
- Compact lightweight profile: 200x200mm class aluminum bolt truss for small lighting, display, and event structures.

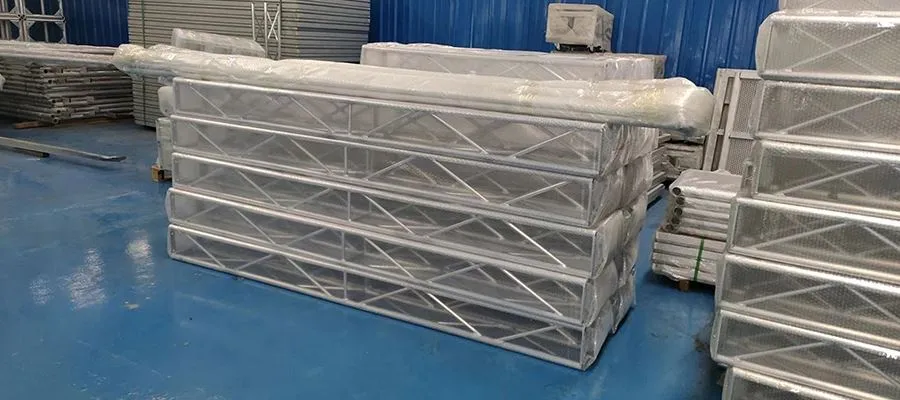

- Easy mobile handling: old content mentions each piece weighs less than 20 lbs, supporting convenient transport and truck packing.

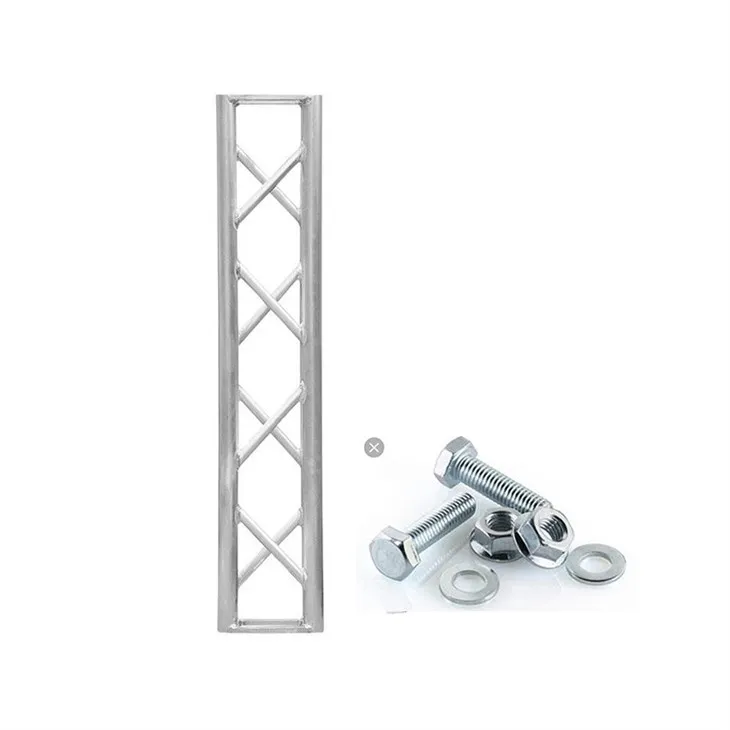

- Bolted hardware connection: simple bolt and nut hardware supports repeated assembly for mobile shows, booths, and display projects.
- Display structure flexibility: can be used with universal 6-way corners to build arcs, screen frames, booths, signage, and decorative layouts.
- Lighting and signage support: suitable for lighting fixtures, TV monitors, signs, banners, and small event accessories within approved load limits.
Specification Reference
The following specifications are based on the existing product content. They should be used as a reference only. Final loading and structure suitability should be checked according to project layout, span, support points, equipment weight, and site conditions.
| Product type | Lightweight aluminum bolt truss / 200x200mm box truss |
| Reference size | 200x200mm class / 8 inch by 8 inch frame reference |
| Outer tube reference | 1.5 inch outer tubes, based on old product content |
| Weight reference | Old product content mentions less than 20 lbs per piece |
| Load reference | Old product content mentions up to 500 lbs center loaded across spans up to 2m; final loading must be checked |
| Connection | Bolted hardware with screws, nuts, and matching truss accessories |
| Important limitation | Not recommended for speakers or human harnesses, based on old product content |
Common Applications
| DJ and mobile shows | Small lighting frames, mobile DJ booths, event entrances, and easy-to-pack truss displays. |
| Trade show booths | Booth frames, multilayer display structures, projector screen frames, warmers, signage, and product messaging areas. |
| Lighting and monitor support | Mounting lights, TV monitors, signage, banners, and lightweight display accessories within approved load limits. |
| Event decoration | Decorative truss layouts, arcs, tent canopy frames, small stage structures, and temporary brand displays. |
Product Detail Reference
Related Products
200x200mm Lightweight Spigot Box Truss
A related compact spigot truss option for small lighting rigs, DJ booths, booth frames, and display structures.
290mm Aluminum Stage Lighting Truss
A larger modular truss option for event lighting, exhibition frames, banners, and temporary support structures.
Application Cases
Factory And Loading Videos
FAQ
What is 200x200mm lightweight bolt truss used for?
200x200mm lightweight bolt truss is used for small stage lighting rigs, DJ setups, trade show booths, projector screen frames, signage, TV monitor support, tent canopy frames, and event decoration structures.
What load can this bolt truss support?
The old product content mentions spans up to 2 meters supporting up to 500 lbs center loaded, with higher support possible when evenly loaded. Actual loading must be confirmed according to span, support points, equipment position, and full structure design.
Can this truss be used for speakers or human harnesses?
No. The old product content states that this lightweight bolt truss is not recommended for speakers or human harnesses. Use a properly engineered heavy-duty truss system for those applications.
Can the bolt hardware and accessories be supplied together?
Yes. ENO Stage can provide matching bolts, nuts, corners, clamps, base plates, packing, and other accessories according to the project layout and installation method.
