How Ringlock Scaffolding Supported the 2026 VAC Music Festival
A large music festival requires more than an impressive stage design. Behind the lighting, LED screens and sound systems is a structural system supporting the stage, technical equipment, control areas, camera positions and viewing platforms.
Ringlock scaffolding is widely used for these structures because it is modular, flexible and suitable for many configurations. It can be extended horizontally, increased vertically and combined with decks, stairs and braces to meet different venue requirements.
At an industry exhibition, we examined the system from individual components on the ground to a complete two-level structure. These close-up views reveal the manufacturing details behind its versatility.
Experienced Welding Creates Reliable Connections
The reliability of a ringlock scaffolding system begins with the quality of each component.
Our factory’s scaffolding components are hand-welded by skilled welders with years of practical experience. Important connection points are carefully completed to produce full, consistent weld beads and securely joined components.
This is especially important for event scaffolding that must be transported, assembled and dismantled repeatedly. Solid welding and careful quality control help the components remain dependable during long-term use.
Q355B Steel for Demanding Stage Structures
Our factory uses Q355B structural steel for ringlock scaffolding applied to demanding stage projects.
Material strength is particularly important when the system is used for tall stages, lighting support, background structures and elevated technical platforms. However, material alone does not determine the capacity of a complete structure.
Its dimensions, connections, foundations, expected loads, wind conditions and intended use must all be evaluated during the engineering design process.

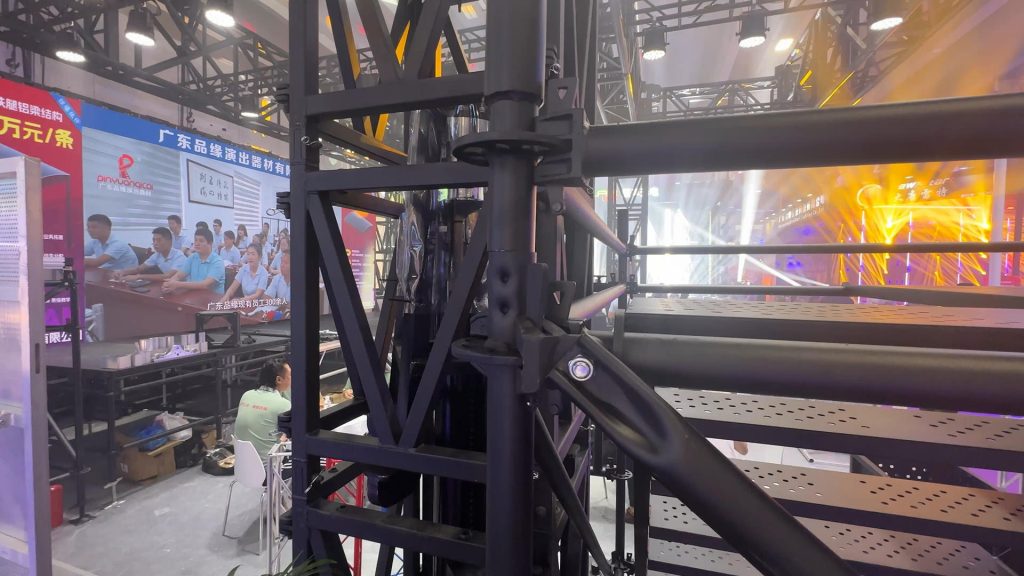

Professional Baked-Paint Surface Treatment
The ringlock scaffolding surface is treated with a professional baked-paint process.
The coating creates a clean and uniform finish while helping protect the steel against oxidation, everyday wear and fading. The black finish also blends well into concerts, exhibitions and commercial events where parts of the supporting structure remain visible.
With appropriate engineering design and site protection, the system can be used in a wide range of indoor and outdoor event environments.

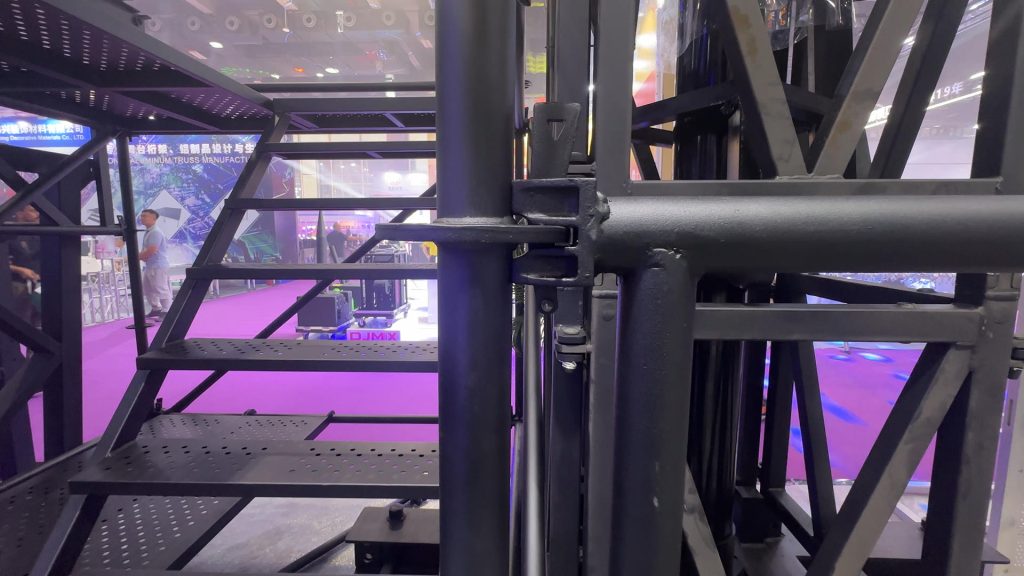

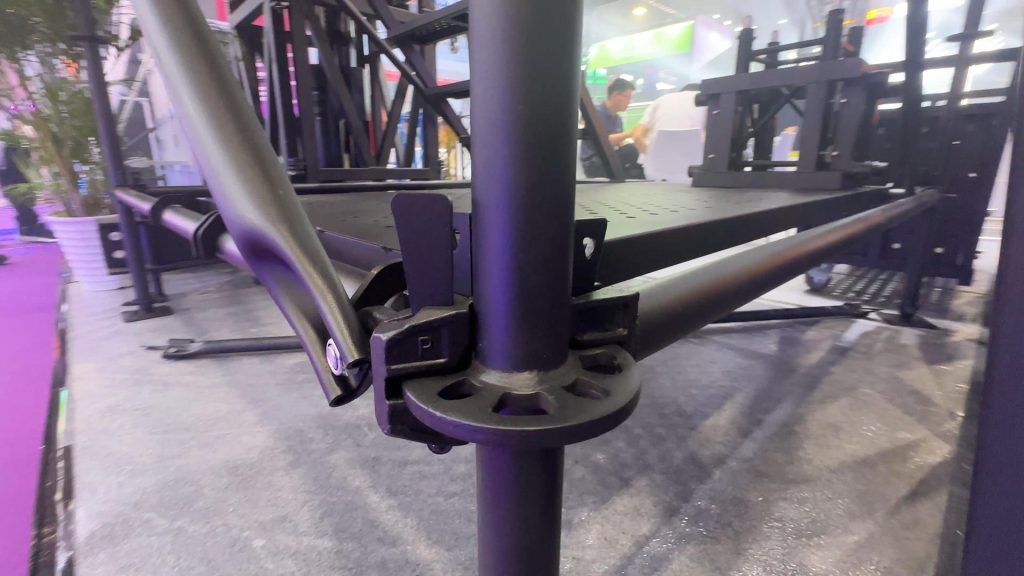

Secure Ringlock and Wedge-Pin Connections
The ringlock and wedge-pin connection is one of the system’s most important features.
During assembly, the ledger head is positioned at the rosette on the vertical standard. A wedge pin is then inserted and tightened to secure the connection.
Horizontal ledgers and diagonal braces can be installed in different directions around the rosette. Once correctly connected, the individual components form an integrated three-dimensional structure.
This standardized connection makes installation and dismantling more efficient while supporting flexible structural configurations.

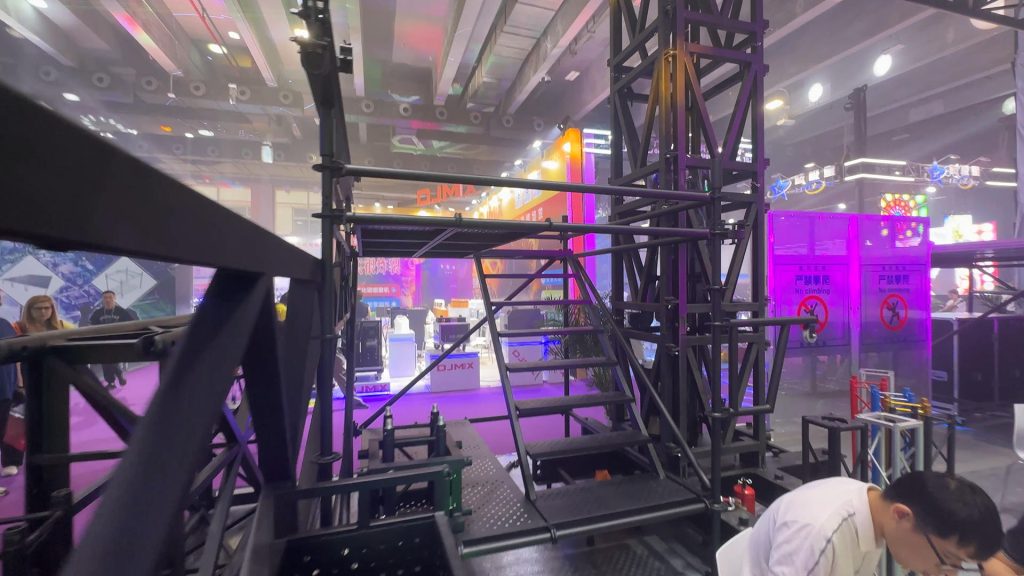

Platforms and Stairways Can Be Integrated
Ringlock scaffolding is more than a supporting frame. Horizontal decks and access stairways can be integrated into the structure to create usable platforms.
Decks provide space for technicians, camera operators, lighting equipment, control consoles or event guests. Stairways connect different levels and provide organized access to elevated areas.

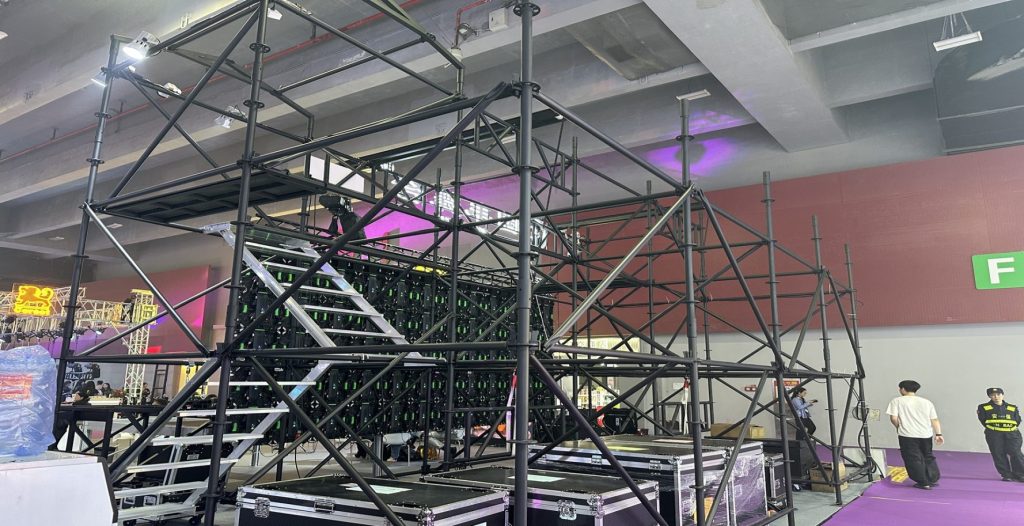

The completed exhibition structure demonstrates how standards, ledgers, braces, decks and stairs can be combined into one practical system.
Expand the Platform When More Space Is Needed
One of the most useful characteristics of ringlock scaffolding is its modular design.
If the existing platform is not large enough, additional bays can be connected directly beside it. The structure can be extended in length and width or increased in height according to the venue and its intended function.
The modular principle is similar to assembling building blocks: standardized components are combined according to an engineered plan to create structures of different sizes and shapes.

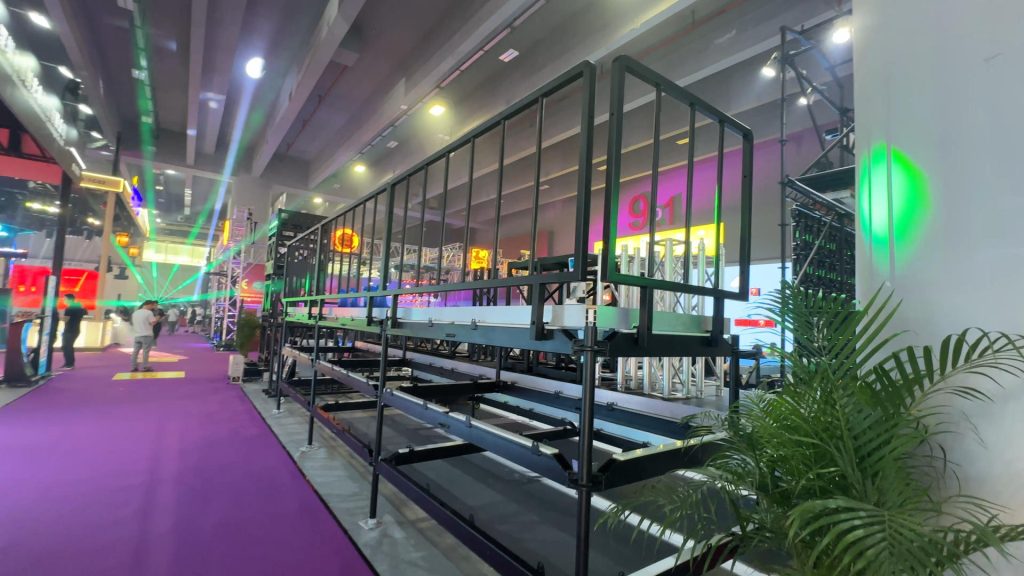

This flexibility allows the same system to be configured as a grandstand, VIP viewing platform, camera tower, lighting platform or FOH control area.
Although the combination method is straightforward, structures used for public events must be designed, assembled and inspected by qualified professionals.

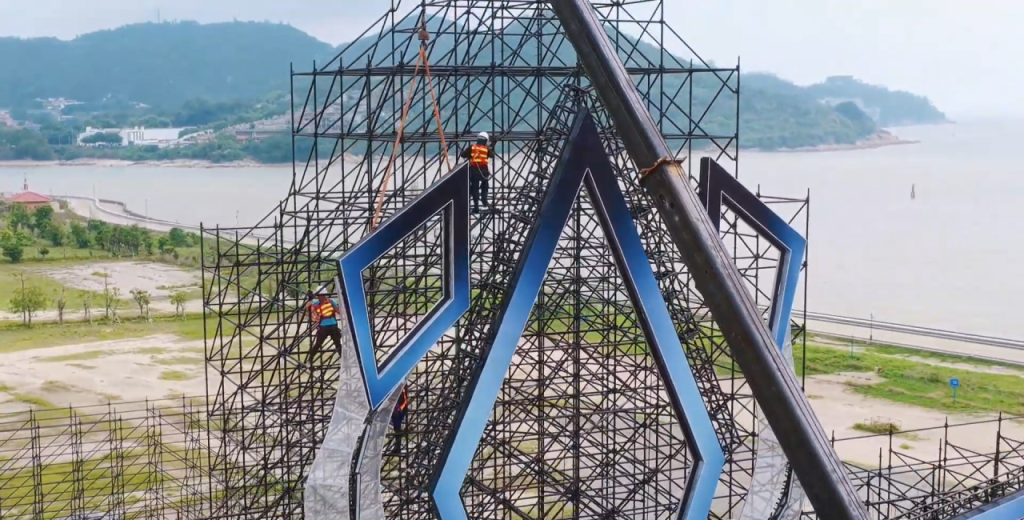

Flexible Assembly Methods for Tall Structures
Ringlock scaffolding can be assembled from the ground upward, adding one level at a time.
For certain tall structures, an upper section can first be assembled closer to ground level. A crane or electric chain hoist then raises the completed section, allowing workers to add another level underneath.
This process can continue until the system reaches the designed height. The actual assembly method must be determined according to the engineering plan, lifting equipment, venue conditions and safety requirements.

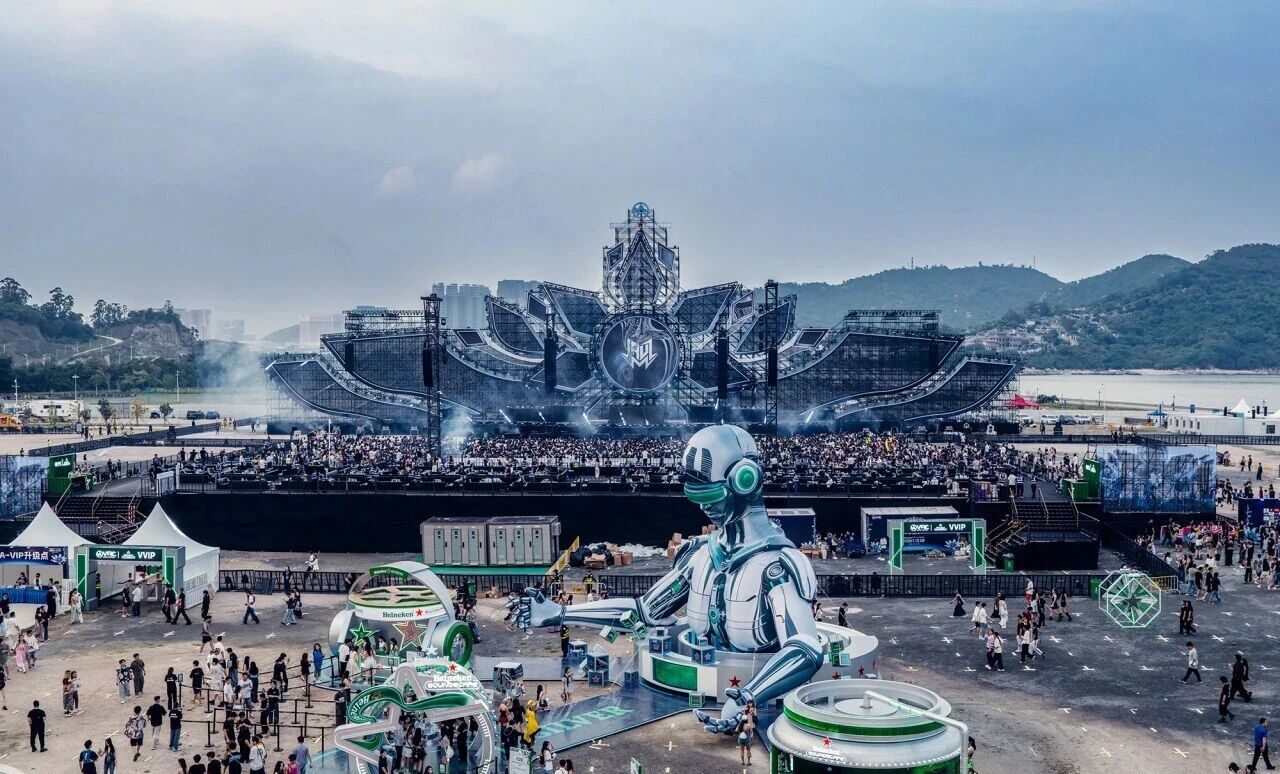

Ringlock Scaffolding at the 2026 VAC Music Festival
The versatility of ringlock scaffolding can be seen in its practical application at the 2026 VAC Music Festival.
Held on April 18–19, 2026, at Chimelong in Hengqin, Zhuhai, the festival featured three themed stages: the Lotus Stage, Flow Stage and Qin Stage.
Our factory served as a core supplier of the stage structures, ringlock scaffolding systems and construction services. Our team provided integrated support covering customized design, manufacturing, on-site installation and dismantling.

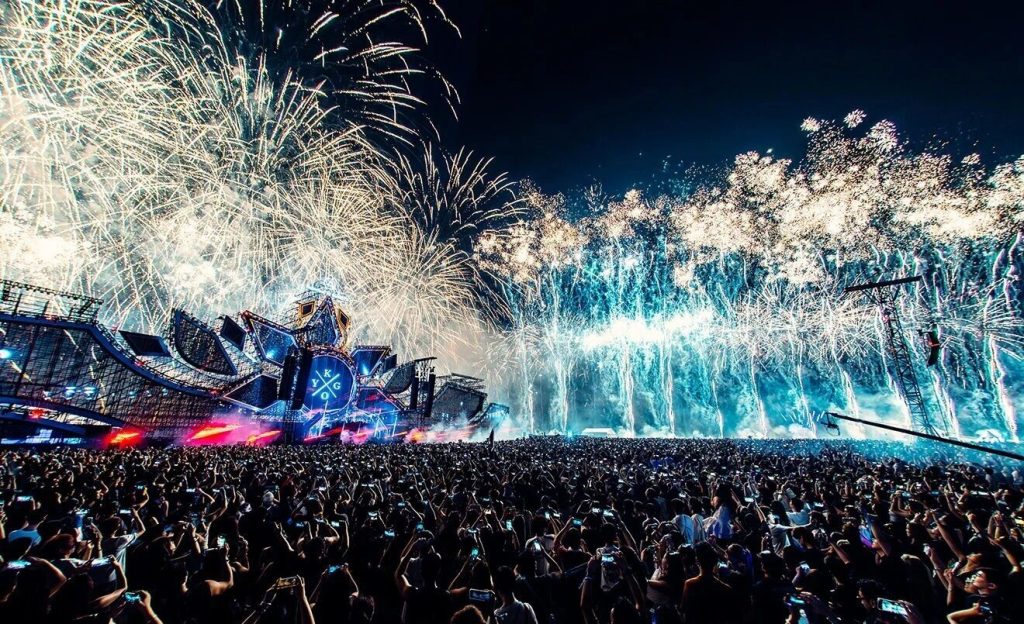

The Lotus main stage reached approximately 36 metres in height and 120 metres in width. Its large scale and distinctive design placed demanding requirements on structural planning, production and construction.
Q355B steel ringlock scaffolding was used for important parts of the main and secondary stage structures, lighting support and background support systems.

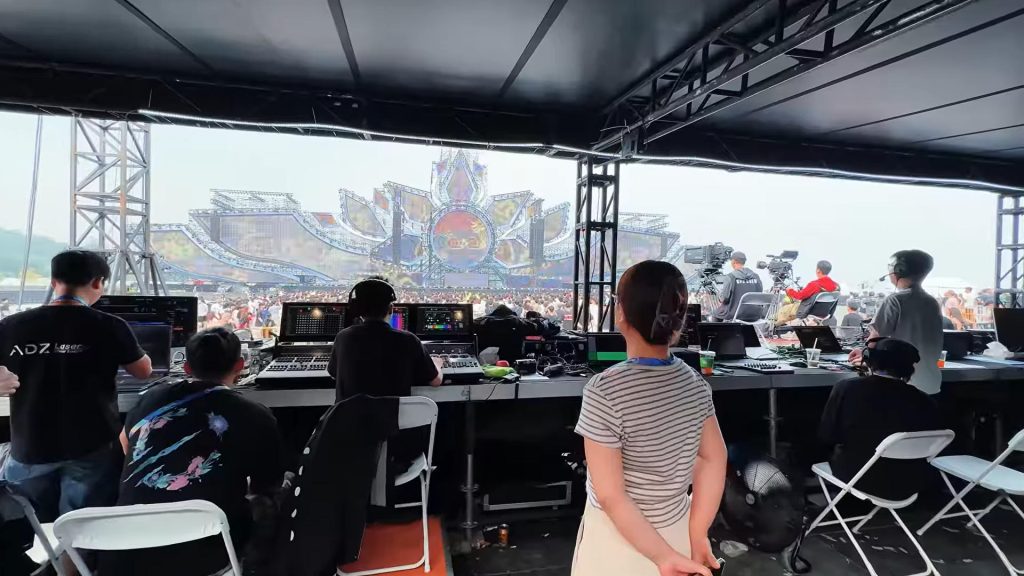

FOH Control Towers and Technical Platforms
Ringlock scaffolding was used to build the front-of-house control area opposite the main stage.
The elevated platform provided organized working space for audio mixing consoles, lighting control, VJ systems and other production equipment. Its position gave the technical team a clear view of the stage during the performances.
This type of FOH structure can be customized according to the amount of equipment, required working area, viewing angle and venue layout.
Elevated Camera Platforms
Two elevated camera platforms were installed beside the control area.
Their height provided camera operators with clearer shooting angles while separating the production positions from the main audience area.
Because ringlock scaffolding is modular, the platform dimensions, height and access arrangement can be adapted to different filming and broadcast requirements.

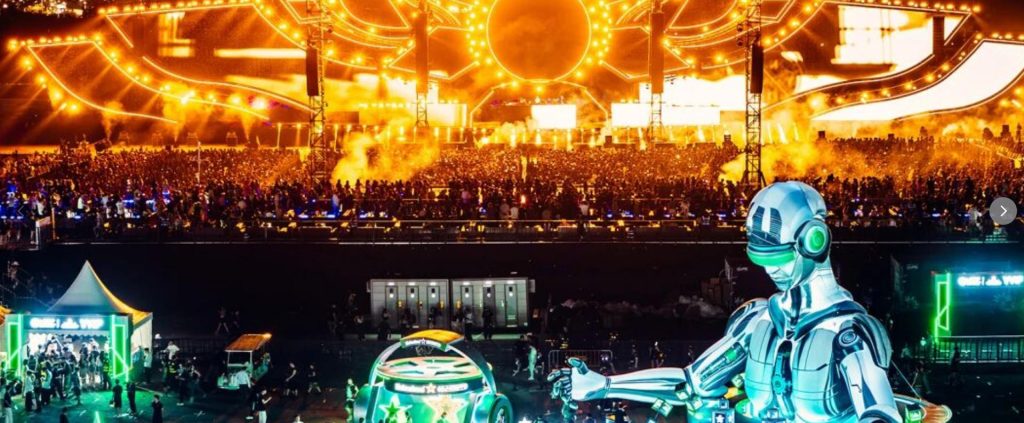

VIP Viewing Areas with a Clear View
The same scaffolding system was also used to create an elevated VIP viewing area.
By adjusting the platform height, deck area and stairway position, the VIP section provided guests with a clear view of the main stage and festival grounds.
This application shows that ringlock scaffolding can support both technical and commercial requirements within the same event.
One System for Many Event Applications
Ringlock scaffolding can be configured for:
- Large concert and music festival stages
- Stage background support structures
- Lighting and equipment support
- FOH audio, lighting and VJ control towers
- Camera and broadcast platforms
- Follow-spot and beam-light platforms
- VIP viewing areas
- Temporary grandstands
- Technical working areas
- Exhibition structures
- Temporary stairs and access platforms
The system is not restricted to one fixed shape. Its dimensions and functions can be adjusted according to the venue, equipment layout, audience requirements and event design.
From Factory Manufacturing to On-Site Construction
Delivering a major concert or music festival requires more than supplying scaffolding components.
It requires manufacturing capacity, customized structural design, project coordination, quality control and professional on-site construction. Every stage of the work must be connected, from material selection, welding and surface treatment to engineering planning, installation, inspection and dismantling.
Our factory has extensive experience in the event equipment industry and integrates design, manufacturing, sales and rental services. Its product range includes ringlock scaffolding, aluminium truss, event tents, aluminium scaffolding, stage systems, background structures and flight cases.
For the 2026 VAC Music Festival, our team handled the process from customized design and production to installation, adjustment, inspection coordination and final dismantling.
This complete project experience gives us the ability to support both product orders and complex event construction requirements.
From Factory Manufacturing to On-Site Construction
Delivering a major concert or music festival requires more than supplying scaffolding components.
It requires manufacturing capacity, customized structural design, project coordination, quality control and professional on-site construction. Every stage of the work must be connected, from material selection, welding and surface treatment to engineering planning, installation, inspection and dismantling.
Our factory has extensive experience in the event equipment industry and integrates design, manufacturing, sales and rental services. Its product range includes ringlock scaffolding, aluminium truss, event tents, aluminium scaffolding, stage systems, background structures and flight cases.
For the 2026 VAC Music Festival, our team handled the process from customized design and production to installation, adjustment, inspection coordination and final dismantling.
This complete project experience gives us the ability to support both product orders and complex event construction requirements.
Built by Experience, Proven on Major Stages
We are more than a ringlock scaffolding manufacturer. With strong production capacity, experienced engineering teams and professional construction crews, we provide integrated support covering design, manufacturing, installation and dismantling.
From individual scaffolding components to large concert stages, FOH control towers, camera platforms and VIP viewing areas, we have the expertise to transform complex event requirements into reliable structural solutions.
Our products and services have reached more than 20 countries and regions. Whether for product supply, customized manufacturing or complete event projects, we are ready to support concerts, music festivals, exhibitions and major commercial events worldwide.
