Description

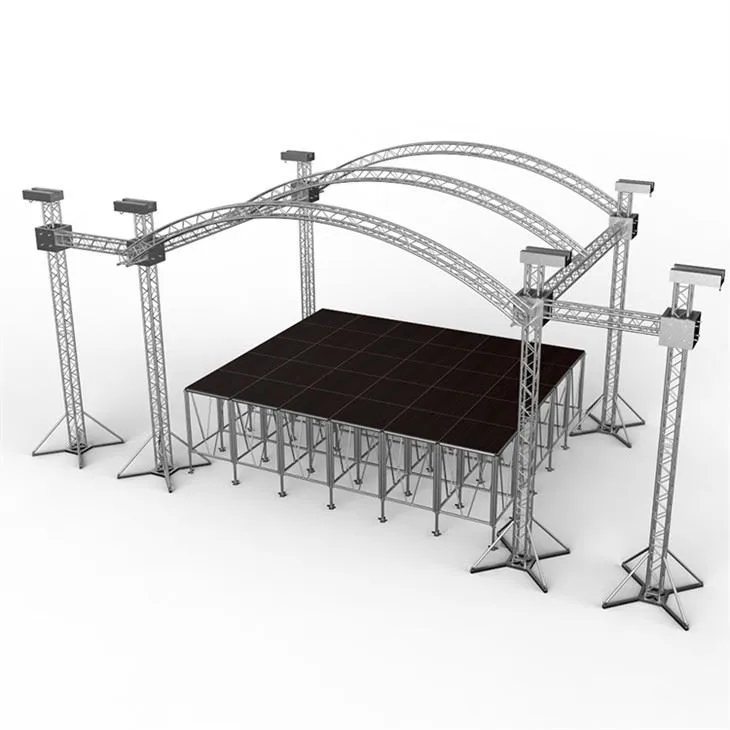

6-pillar triple-arch stage lighting truss system is a curved roof stage structure for outdoor concerts, festivals, live events, ceremonies, commercial productions, LED screen support, sound systems, stage backdrops, and professional lighting rigs. The triple-arch roof profile creates a strong visual stage shape while giving event crews practical overhead and side mounting positions for production equipment.
The existing product content describes this system as a triple-arched curved roof stage truss for large-scale outdoor concerts, festivals, and live events. Its reinforced curved beams help distribute roof loads, while the top arches can support stage lights, spotlights, and effect lighting. Side vertical trusses can be used for LED screens, sound systems, banners, and backdrops. Final loading should be confirmed according to the complete roof span, pillar height, hanging points, wind condition, and structural drawing.
6-Pillar Triple-Arch Stage Lighting Truss Features
- Triple-arch roof design: creates a professional curved roof appearance for concerts, festivals, live shows, and outdoor productions.
- Six-pillar support layout: provides multiple support points for a larger stage roof structure and wider production area.
- Lighting and LED support: top arches and side trusses can be planned for stage lights, spotlights, LED screens, audio systems, and backdrops.
- Outdoor event structure: curved roof profile can help with visual design, runoff direction, and event roof layout planning.
- Custom project matching: roof span, arch radius, pillar height, truss profile, finish, loading design, packing, and accessories can be customized.
Specification Reference
The following details are organized from the existing product content and visible product image. Final specifications should be confirmed according to project drawings, hanging equipment, wind condition, support method, and local safety requirements.
| Product type | 6-pillar triple-arch stage lighting truss / curved roof truss system |
| Structure | Triple arched roof beams with six vertical support pillars |
| Material reference | High-strength lightweight aluminum alloy reference from old content |
| Common use | Outdoor concert, festival stage, live event roof, stage lighting rig, LED screen support, sound system structure |
| Accessory matching | Curved truss, vertical towers, bases, hoists, clamps, shackles, pins, safety cables, and rigging hardware |
| Customization | Roof span, arch shape, pillar height, finish, loading design, packing, and shipping arrangement |
Common Applications
| Outdoor concerts | Supports lighting rigs, effect lights, sound systems, LED screens, cables, and stage backdrops. |
| Music festivals | Creates a high-visibility curved roof structure for large audience areas and outdoor production layouts. |
| Commercial events | Suitable for brand shows, ceremonies, live broadcasts, product launches, and entertainment productions. |
| LED and backdrop structures | Side trusses can provide mounting positions for LED screens, banners, scenery, and background layouts. |
Design And Loading Notes
- Roof span, arch radius, and pillar height should be confirmed according to the stage size and visual requirement.
- Lighting, LED screen, sound, backdrop, and cable loads should be calculated before final truss production.
- Outdoor projects should consider wind condition, ground condition, support bases, ballast, drainage direction, and inspection rules.
- Hoists, clamps, shackles, pins, safety cables, roof corners, and sleeve blocks should match the approved system drawing.
Product Detail Reference
Related Products
Application Cases
Factory And Loading Videos
FAQ
What is a 6-pillar triple-arch stage lighting truss used for?
It is used for outdoor concerts, festivals, live events, ceremonies, LED screen support, sound systems, stage backdrops, and professional lighting rigs that need a curved roof structure.
Can the triple-arch roof support LED screens and sound systems?
Yes. The top arches and side trusses can be planned for lighting, LED screens, sound systems, backdrops, and rigging accessories. Final loading must be confirmed by structure design.
Can the roof span and arch shape be customized?
Yes. ENO Stage can customize roof span, arch radius, pillar height, truss profile, finish, rigging accessories, packing, and shipping according to the project layout.
What information is needed for a quote?
Please provide stage size, roof span, arch shape, pillar height, hanging load, LED screen or audio requirement, venue condition, wind condition, and layout drawing.
Need A 6-Pillar Stage Lighting Truss System?
ENO Stage supplies 6-pillar stage lighting truss systems, curved roof truss, circular roof truss, box roof truss, vertical pillars, hoists, clamps, bases, and event rigging accessories. Send us your stage size, roof span, hanging load, and project drawing so we can recommend a suitable roof truss solution.
